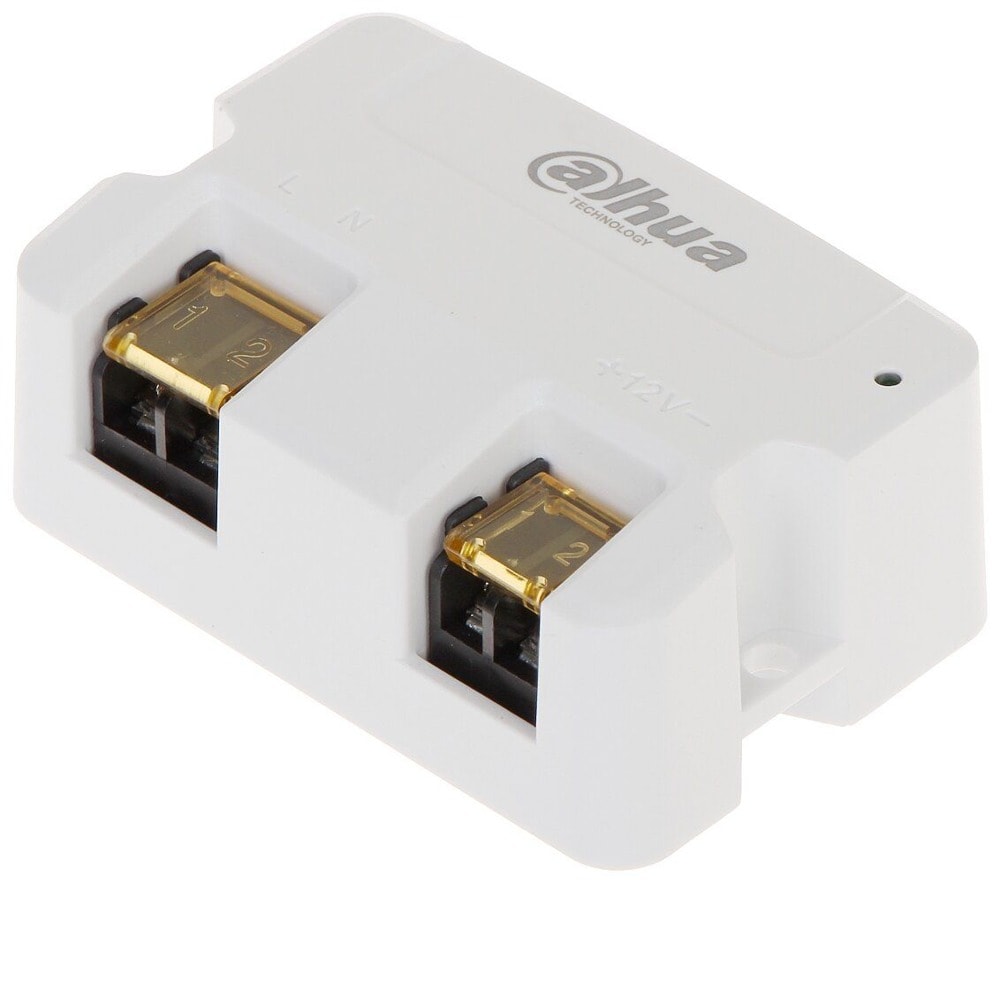

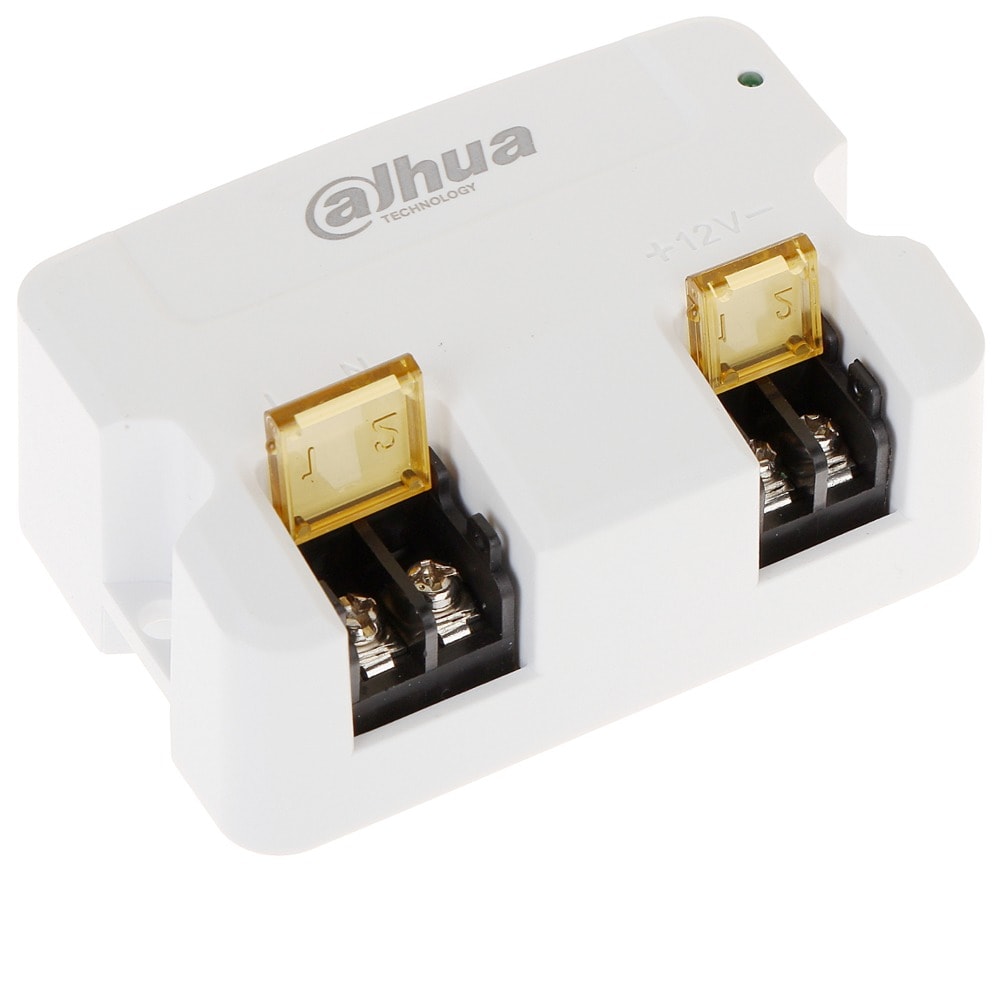

Захранващ адаптер Dahua PFM320D-015
Артикул №: 1000019439
Категория:
Видеонаб. други аксесоари
10,99 €
✓ Налично във външен склад
Technical Specifications
Model DH-PFM320D-015
Electrical Specification
Rated input AC100~240V, 50/60Hz, 0.6A
Output voltage DC12V (+7%, -3%)
Output current Max. 1.5A (+70℃)
Protection/Environmental
Protection
Surge protection, over temperature protection, over current, voltage load
protection
ESD: EN61000-4-2
+/-6kV Contact; +/-8kV Air
Surge: EN61000-4-5
Combination Wave: Common Mode ± 4KV(12 ohms)
Differential Mode ± 2kV(2 ohms)
Working temperature -30℃~+70℃(-22℉~+158℉)
Working humidity 5%~95% RH
Physical Properties
Weight 95g(0.21lb)
Dimension(LxWxH) 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“)
Installation Plane installation, can be installed in junction boxes and wall mount brackets
Color White
Input plug 2-pin plug(L/N)
Output plug 2-pin plug(+12V-)
Safety Standards
Certification CE, FCC
Характеристики
| Rated input AC100~240V, | 50/60Hz, 0.6A |
| Output current Max. | 1.5A (+70℃) |
| ESD | EN61000-4-2 |
| Surge | EN61000-4-5 |
| Combination Wave | Common Mode ± 4KV(12 ohms) |
| Differential Mode ± | 2kV(2 ohms) |
| Working humidity | 5%~95% RH |
| Тегло | 95g(0.21lb) |
| Dimension(LxWxH) | 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“) |
| Input plug | 2-pin plug(L/N) |
| Output plug | 2-pin plug(+12V-) |
