Захранване Thermaltake TR2 S

Thermaltake TR2 S 700W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

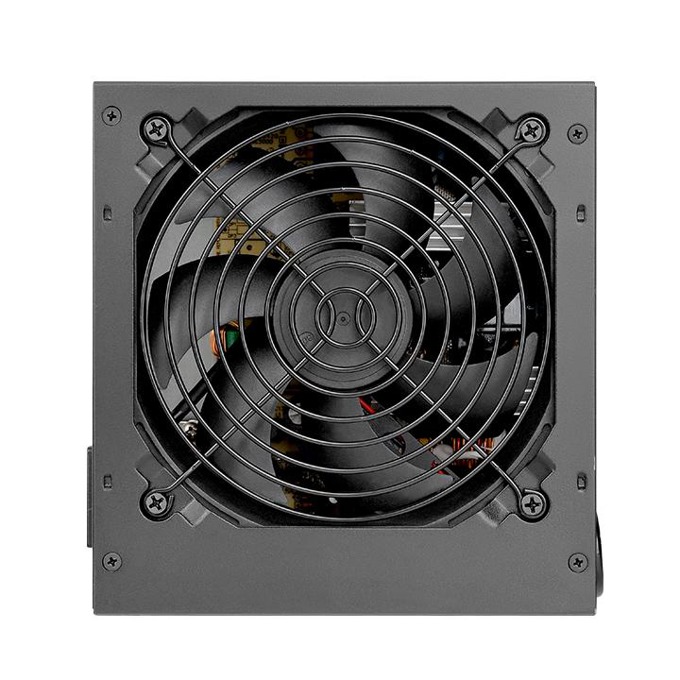

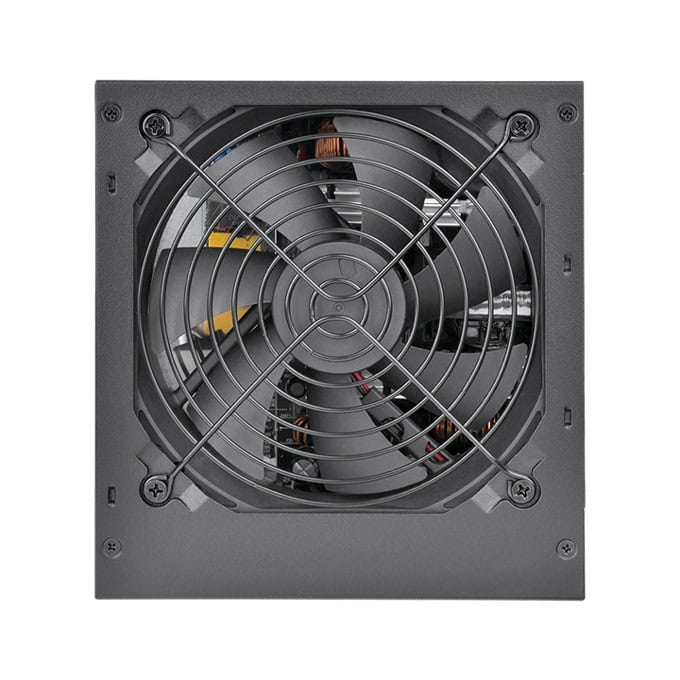

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 700W connector’s specification as below:

Short P/N
TRS-0700P-2

Model TRS-700AH2NK
Type
Intel ATX 12V 2.3

Max. Output Capacity 700W
Color Black
Dimension (H x W x D)
86mm x 150mm x 140mm

PFC （Power Factor Correction）
Active PFC

Power Good Signal
100-500 msec

Hold Up Time
16msec (minimum) within 60% load

Input current 9A max
Input Frequency Range
50 Hz - 60 Hz

Input Voltage
230 Vac

Operating Temperature 5℃ to +40℃
Operating Humidity
20% to 85%,non-condensing

Storage Temperature
-40 ℃ to +55 ℃

Storage Humidity
10% to 95%, non-condensing

Cooling System 120mm Fan: 1800 R.P.M. ± 10%
Efficiency 82-86% efficiency @ 20-100% load
MTBF
100,000 hrs minimum

Safety Approval
CE/CB/TUV

PCI-E Connector
PCI-E 6+2pin x 2

For more information : http://www.thermaltake.com/products-model.aspx?id=C_00002714
