Захранване Super Flower Leadex VII
100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
80 PLUS® Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
Comply With ATX 12V v3.0, EPS 12V v2.92 Specification.
Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
More than 2,000 times On/Off test
Lead-free Green Materials with RoHS / WEEE Compliance
Perfect For Professional & High Performance Gaming System
PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.
Характеристики
| Transform Efficiency20% | 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency |
| Cybernetics CertifiedEfficiency | Platinum / Efficiency 230V: Platinum |
| Intel Power Design GuideEPS Ver. | 2.92 & ATX 3.0 |
| AC Input | Frequency | 100V-240V | 60 / 50Hz , Full Range APFC |
| Fan Size14cm FDB FAN | Да |
| Dimension150mm(L) x | 150mm(W) x 86mm(H) |
| ProtectionOVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP | Да |
| TemperaturePassed | 50℃ Hot Testing |
| Cable Wires | Да |
| 20+4 PinOne Cable (600mm) | Да |
| 8(4+4) Pin CPUTwo Cables (700mm) | Да |
| PCI | 6+2 PinFour Cables (700mm) |
| SATAThree Cables (550+130+130+130mm) | 4 |
| MolexOne Cable (550+150+150+150mm) | 4 |
| PCIe | 12+4 PinOne Cable (700mm) |

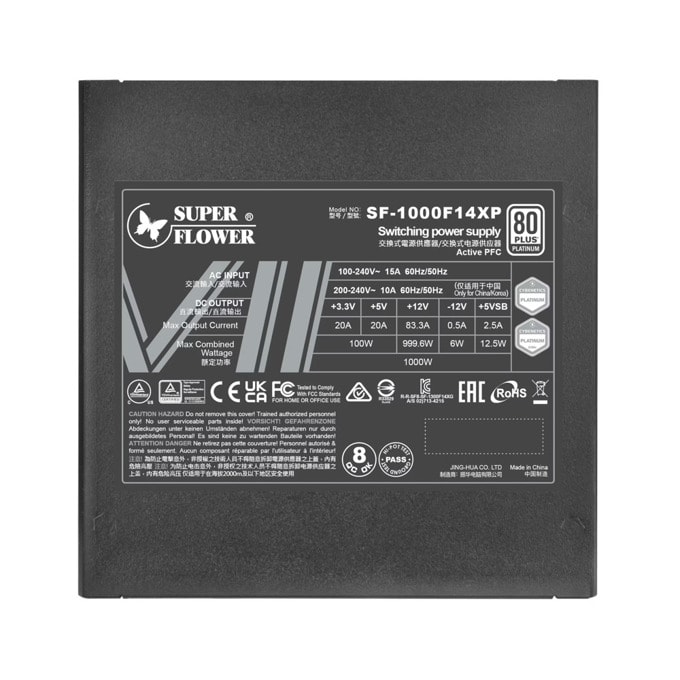

| AC INPUT100-240V~ | 15A 60Hz/50Hz |
| 200-240V~ 10A 60Hz/50Hz (Only for China/Korea) | Да |
| DC OUTPUT+3.3V+5V+12V-12V+5VSB | Да |
| 1000WMax Output Current20A20A83.3A0.5A2.5A | Да |
| Max Combined Wattage100W999.6W6W12.5W | Да |
| 1000W | Да |
