Захранване Gigabyte UD750GM PG5 V2
Артикул №: 1000143571
Категория:
Компютърни компоненти
127,99 €
✓ Ограничена наличност
Gigabyte UD750GM PG5 V2
ATX 3.1 and PCIe Gen 5.1 Ready
Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3x GPU and 2x system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 450W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX 50 Series and beyond.
100% Japanese capacitorsHigh-quality Japanese capacitors are used throughout, ensuring efficient performance and long-lasting reliability.
120mm smart Hydraulic Bearing(HYB) fan with smart fan switchFan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance.
Характеристики
| Intel Form Factor ATX | 12V v3.1 |
| PFC | Да |
| Active PFC (>0.9 typical) | Да |
| Input Voltage | Да |
| 100-240 Vac (full range) | Да |
| Input Current | Да |
| 15-6.5A | Да |
| Input Frequency | Да |
| 60-50 Hz | Да |
| Output Capacity | Да |
| 750W | Да |
| Размери | Да |
| X 140 x 86mm | 150 |
| Fan Type | Да |
| 120mm Hydraulic Bearing(HYB) Fan | Да |
| PLUS | 80 |
| Gold | Да |
| Efficiency | Да |
| 90% at typical load | Да |
| MTBF | Да |
| Hours | 100,000 |
| Protections | Да |
| OVP/OPP/SCP/UVP/OCP/OTP | Да |
| Power Good Signal | Да |
| 100-150ms | Да |
| Hold Up Time | Да |
| 16ms | Да |
| Cable Type | Да |
| Embossed, All black | Да |

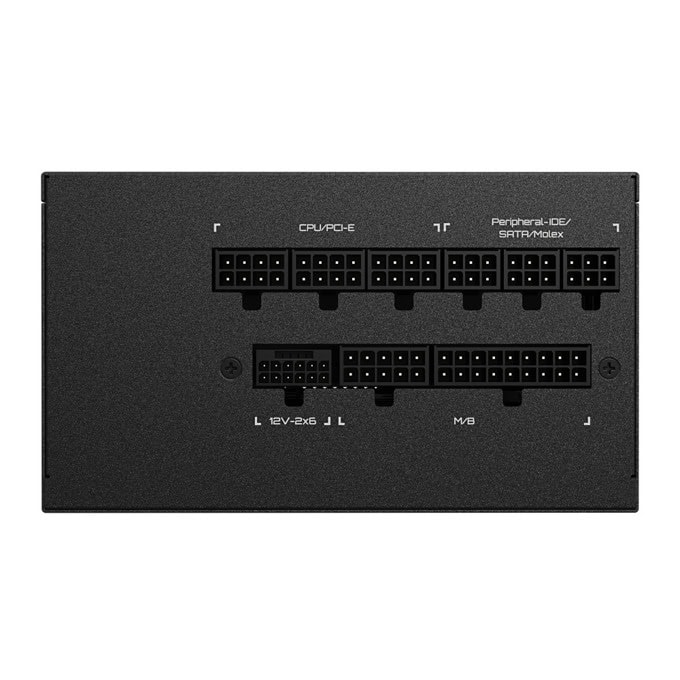

| Конектори | Да |
| ATX/MB 20+4 Pin x 1 | 610mm*1 |
| CPU/EPS 4+4 Pin x 2 | 650mm+200mm*1 |
| PCI-e 6+2 Pin x 4 | 600mm+150mm*2 |
| PCI-e 12+4 Pin x 1 | 700mm*1 |
| SATA x 8 | 600mm+150mm+150mm+150mm*2 |
| 4 Pin Peripheral x 3+4-Pin Floppy x 1 | 500mm+150mm+150mm+150mm*1 |
