Захранване Gigabyte UD750GM PG5 Ice
Gigabyte UD750GM PG5 Ice
Support PCIe Gen 5.0 graphics cards
The UD750GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 450 watts of power to the graphics card.
Support Intel ATX 3.0 standardThe UD750GM PCIE 5.0 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
Enhanced thermal solutionCompared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

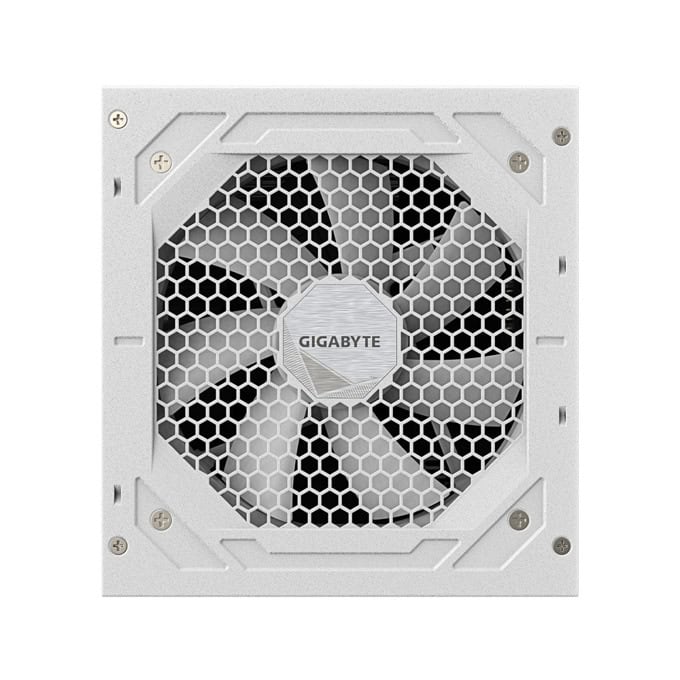

120mm smart hydraulic bearing (hyb) fan
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
Характеристики
| Intel Form Factor ATX | 12V v3.0 |
| PFC | Да |
| Active PFC (>0.9 typical) | Да |
| Input Voltage | Да |
| 100-240 Vac (full range) | Да |
| Input Current | Да |
| 12-6A | Да |
| Input Frequency | Да |
| 60-50 Hz | Да |
| Output Capacity | Да |
| 750W | Да |
| Размер | Да |
| X 140 x 86mm | 150 |
| Fan Type | Да |
| 120mm Hydraulic Bearing(HYB)fan | Да |
| PLUS | 80 |
| Gold | Да |
| Efficiency | Да |
| 90% at typical load | Да |
| MTBF | Да |
| Hours | 100,000 |
| Защита | Да |
| OVP/OPP/SCP/UVP/OCP/OTP | Да |
| Power Good Signal | Да |
| 100-150ms | Да |
| Hold Up Time | Да |
| 16ms | Да |
| Cable Type | Да |
| Flat, All black | Да |

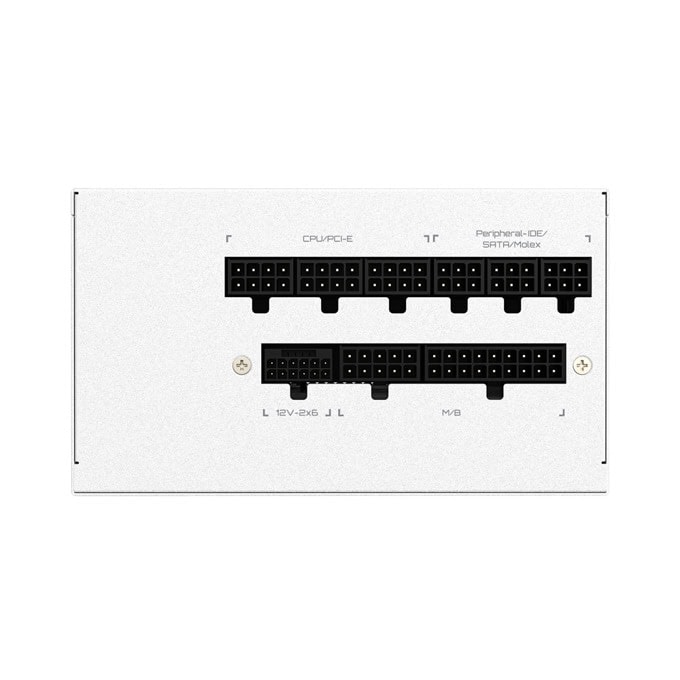

| Конектори | Да |
| ATX/MB 20+4 Pin x 1 | 610mm*1 |
| CPU/EPS 4+4 Pin x 2 | 600mm+200mm*1 |
| PCIe 16 Pin x 1 | 700mm*1 |
| PCIe 6+2 Pin x 4 | 600mm+150mm*2 |
| SATA x 8 | 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
