Захранване Gigabyte UD1600PM PG5 AI TOP
Gigabyte UD1600PM PG5 AI TOP
ATX 3.1 and PCIe Gen 5.0 ready
The UD1600PM PG5 AI TOP can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It's fully compliant with the latest Intel ATX 3.1 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads. Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5.0 graphics cards, delivering up to 600 watts of power.
Enhanced thermal solutionCompared with the standard thermal solution, we have enlarged the heatsink and optimized the airflow. The heat dissipation performance is increased, thus prolonging the service life of the components.

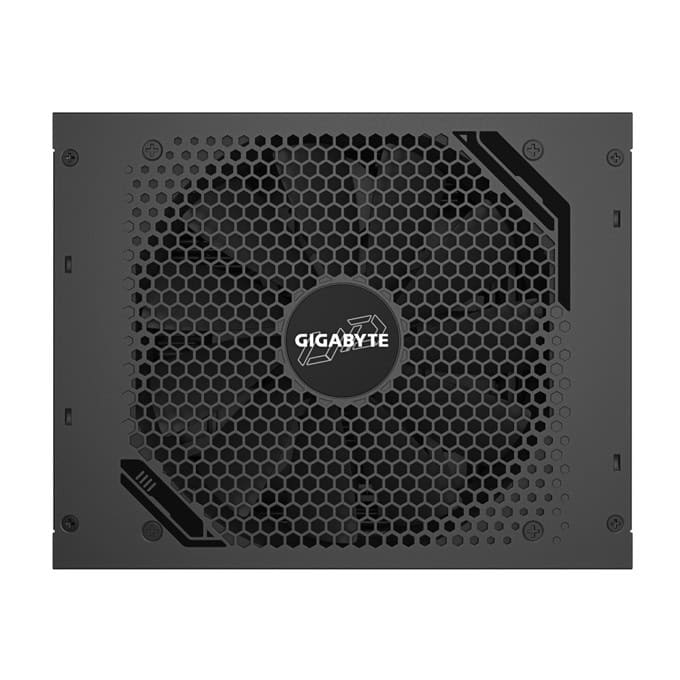

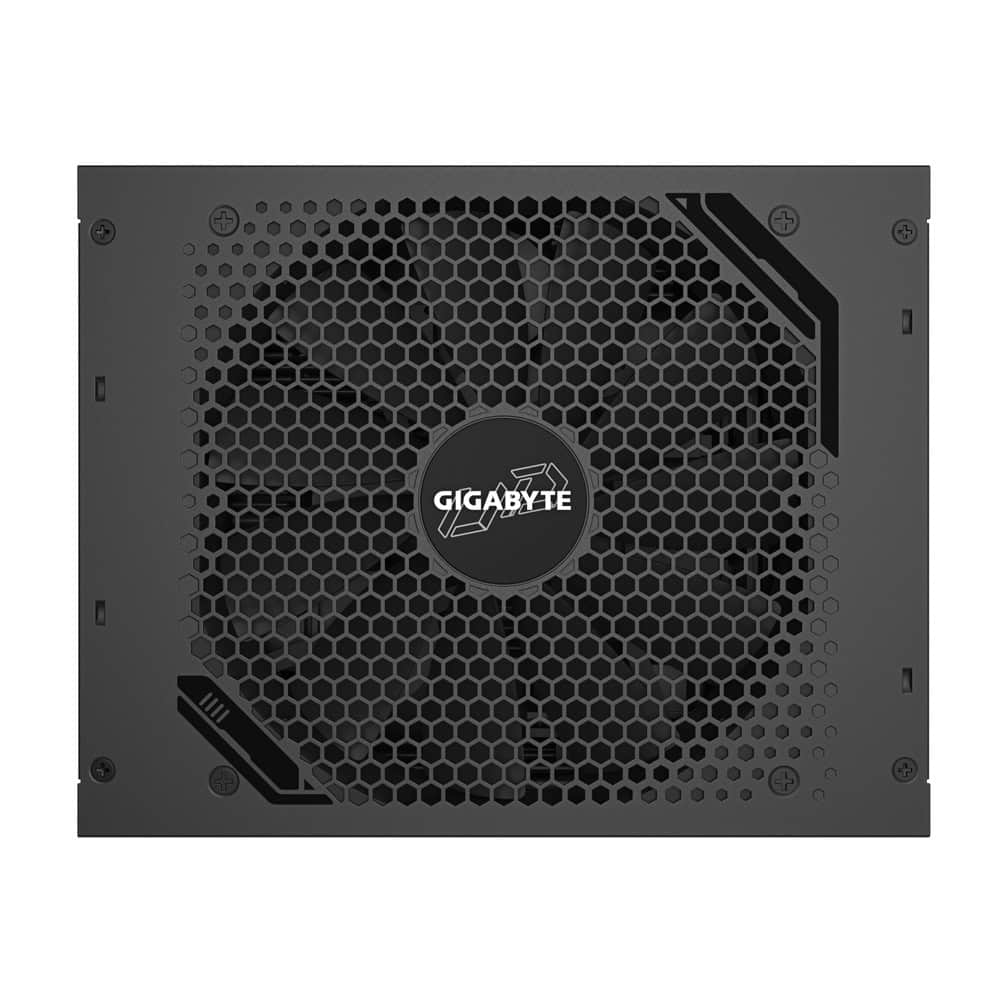

140mm smart double ball bearing fanEquipped with a 140mm double ball bearing fan, the power supply intelligently detects current power usage and temperature, automatically adjusting fan speed for optimal cooling performance. The fan will stop operation upon detecting system idle or low load conditions, effectively minimizing noise. The double ball bearing fan delivers enhanced stability and a longer lifespan compared to standard sleeve bearing fans.
Характеристики
| Тип | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-7.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1600W |
| Размери | 150 x 190 x 86mm |
| Fan Type | 140mm Double Ball Bearing fan |
| 80 PLUS | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |

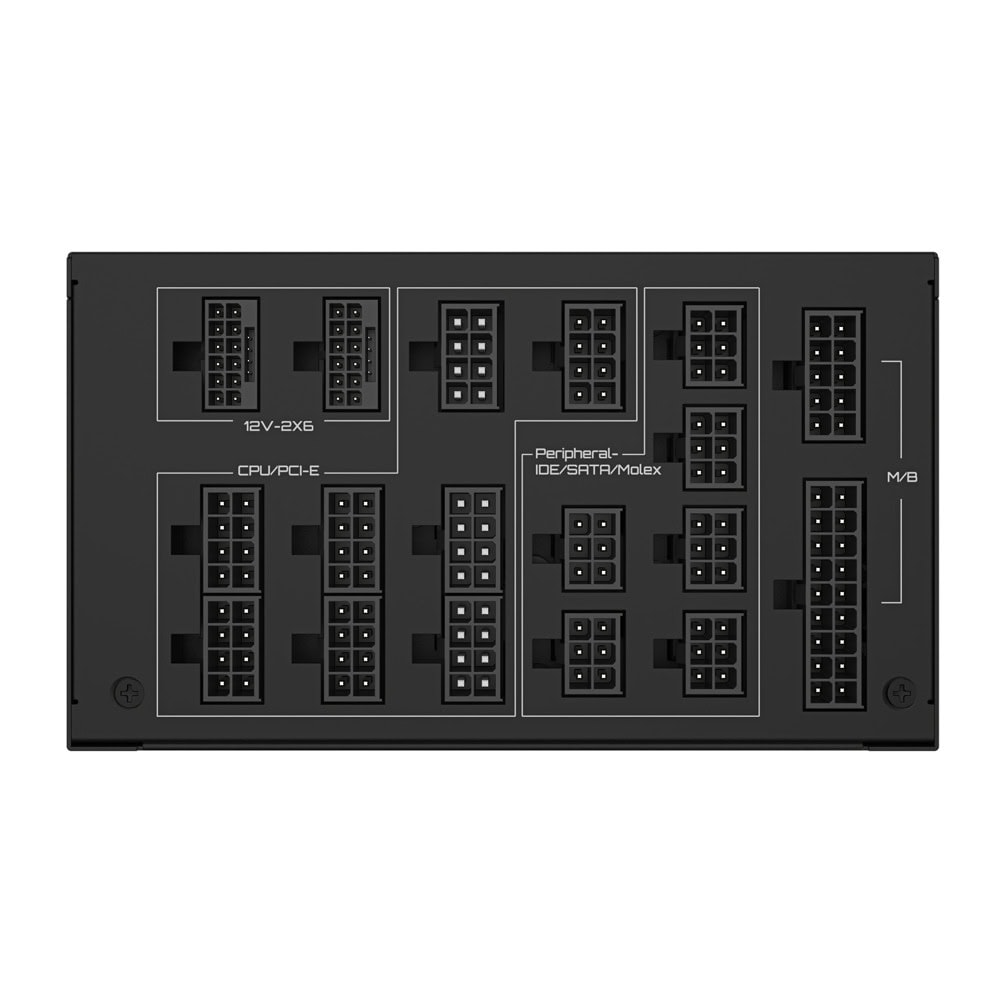

| Конектори | ATX/MB 20+4 Pin x 1 : 610mm*1 |
