Захранване Gigabyte UD1300GM PG5
Артикул №: 1000128563
Категория:
Компютърни компоненти
290,99 €
✓ Налично във външен склад

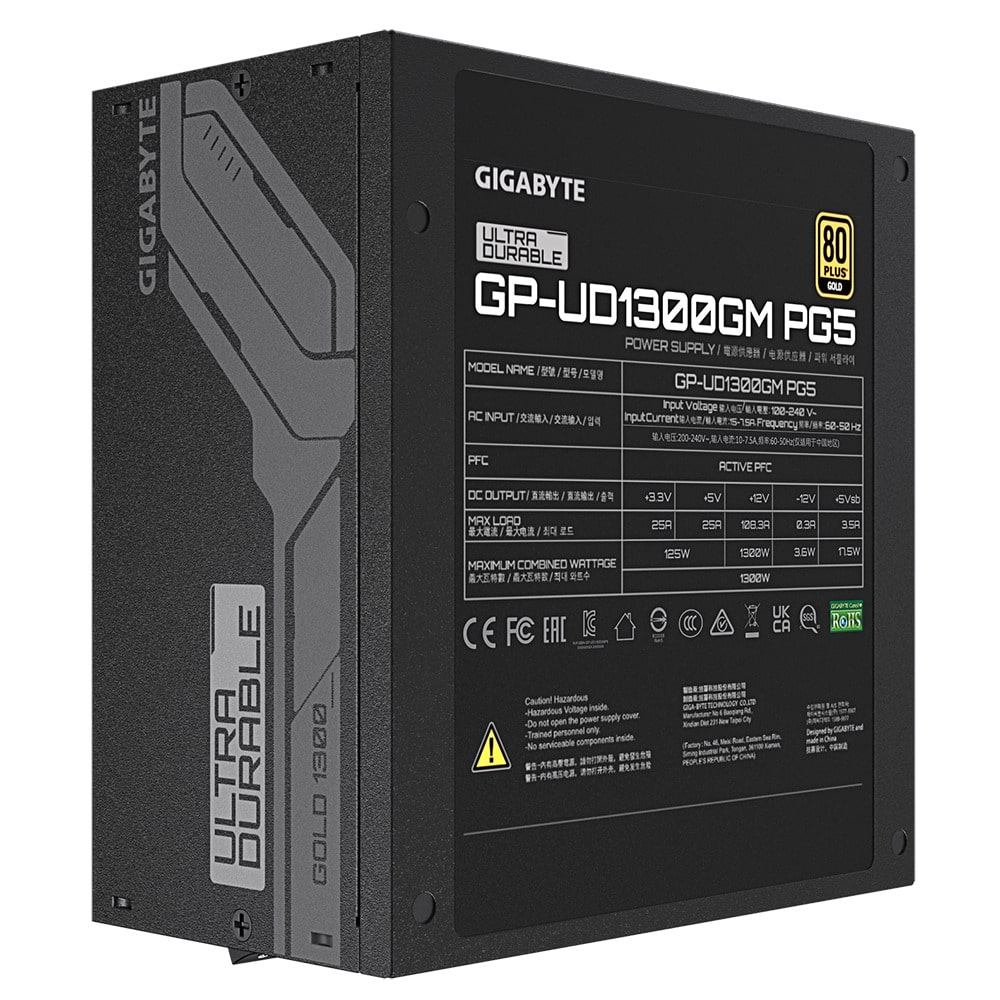

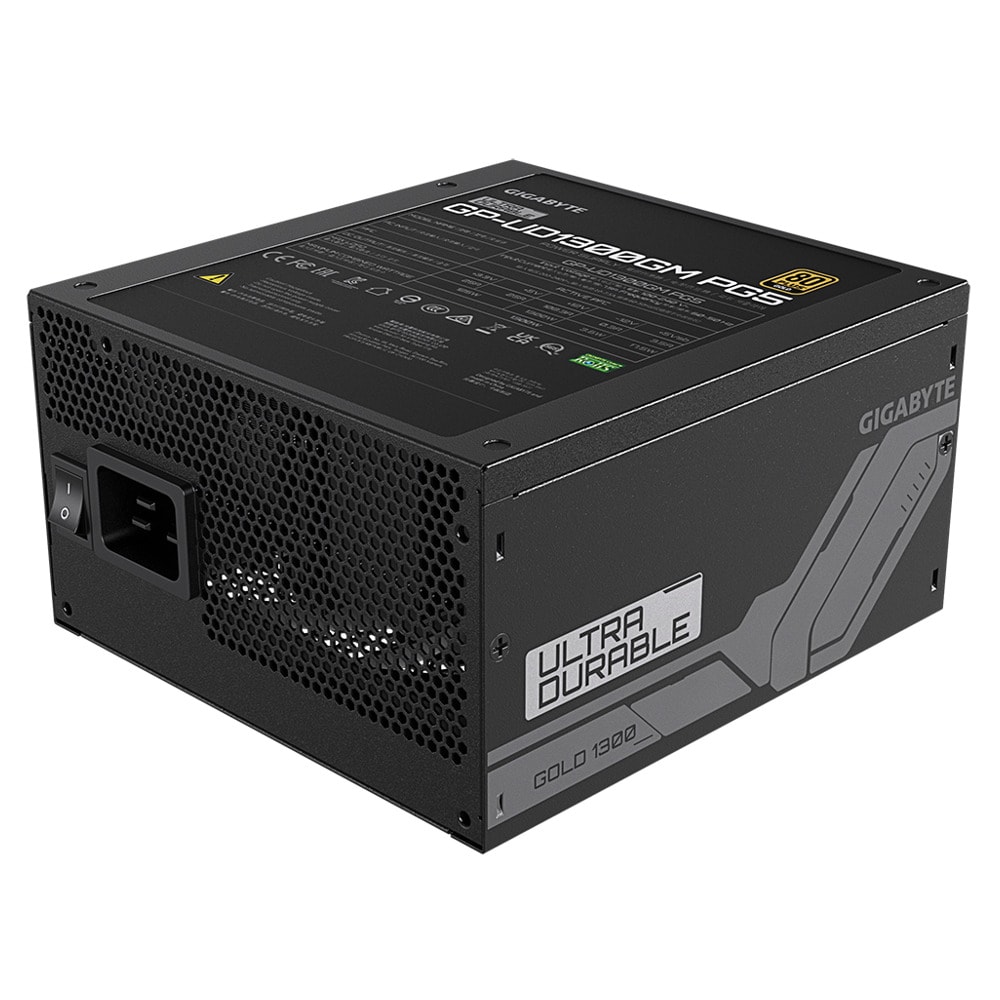

Gigabyte UD1300GM PG5
KEY FEATURE
- Ultra Durable Main Japanese capacitors
- Enhanced thermal solution

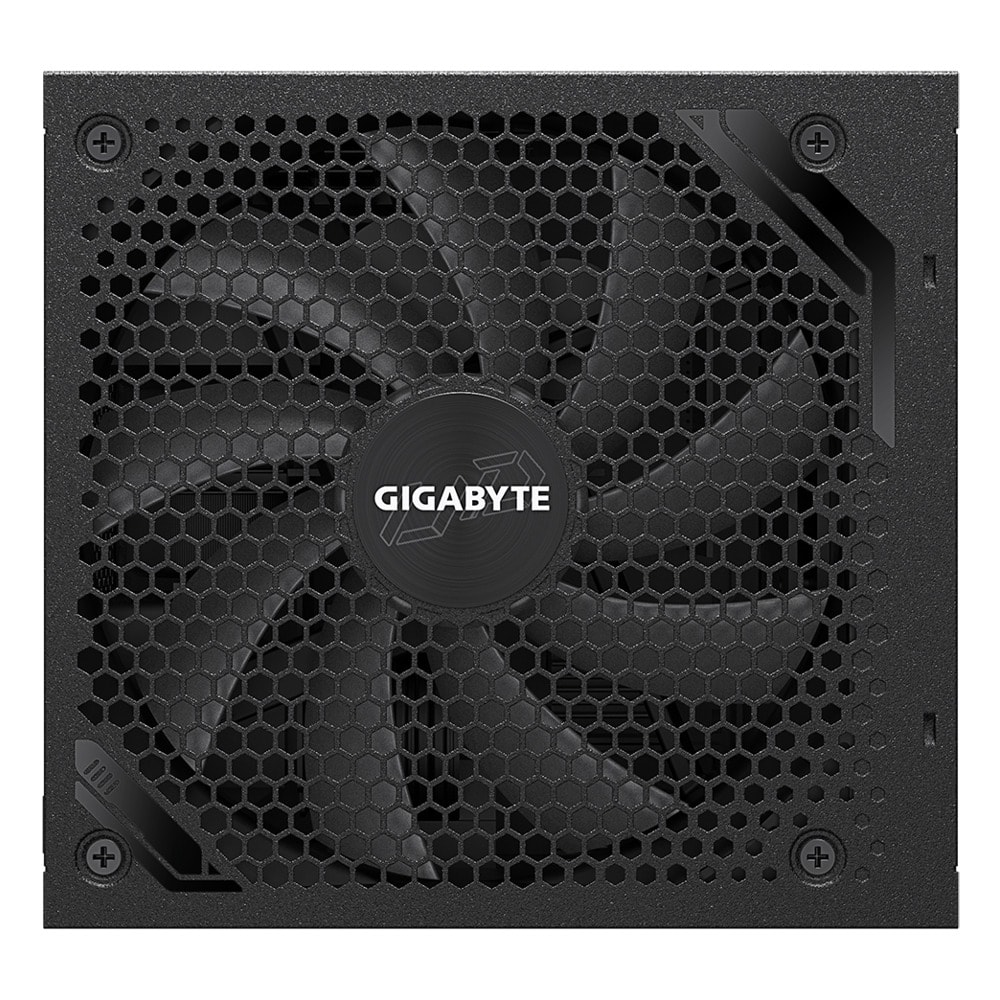

- 140mm double ball bearing fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics card
- Support Intel ATX 3.0 standard
- 80 PLUS Gold certified

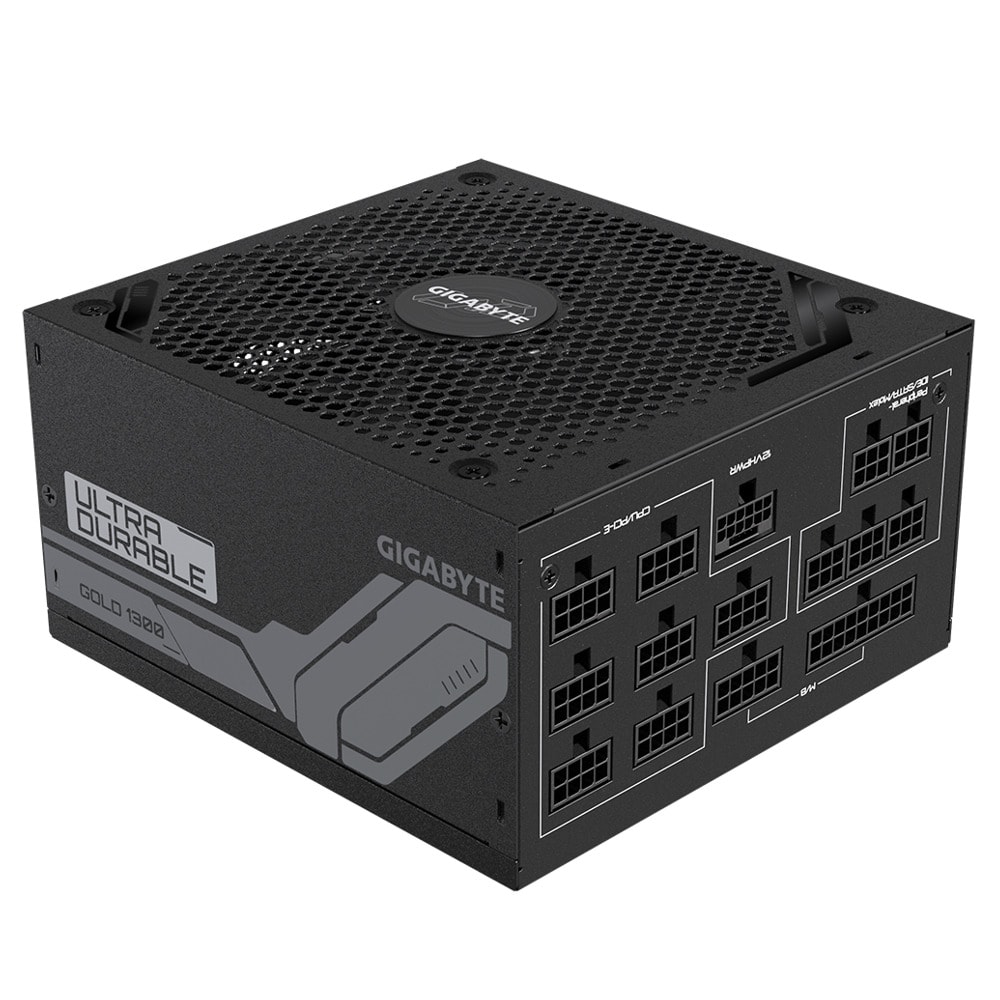

- Fully modular design
- Compact size
- 10 years warranty (Adjusted according to different regions)
Support PCIe Gen 5.0 graphics card
The UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
Support Intel ATX 3.0 standard
The UD1300GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
Model UD1300GM PG5
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Характеристики
| Input Frequency 60-50 Hz | Output Capacity 1300W |
| Dimension 150 x 160 x 86 mm | Fan Type 140mm double ball bearing fan |
| 80 PLUS Gold | Efficiency 90% at typical load |
| MTBF >100,000 hours | Protection OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal 100-150ms | Hold Up Time >16ms |

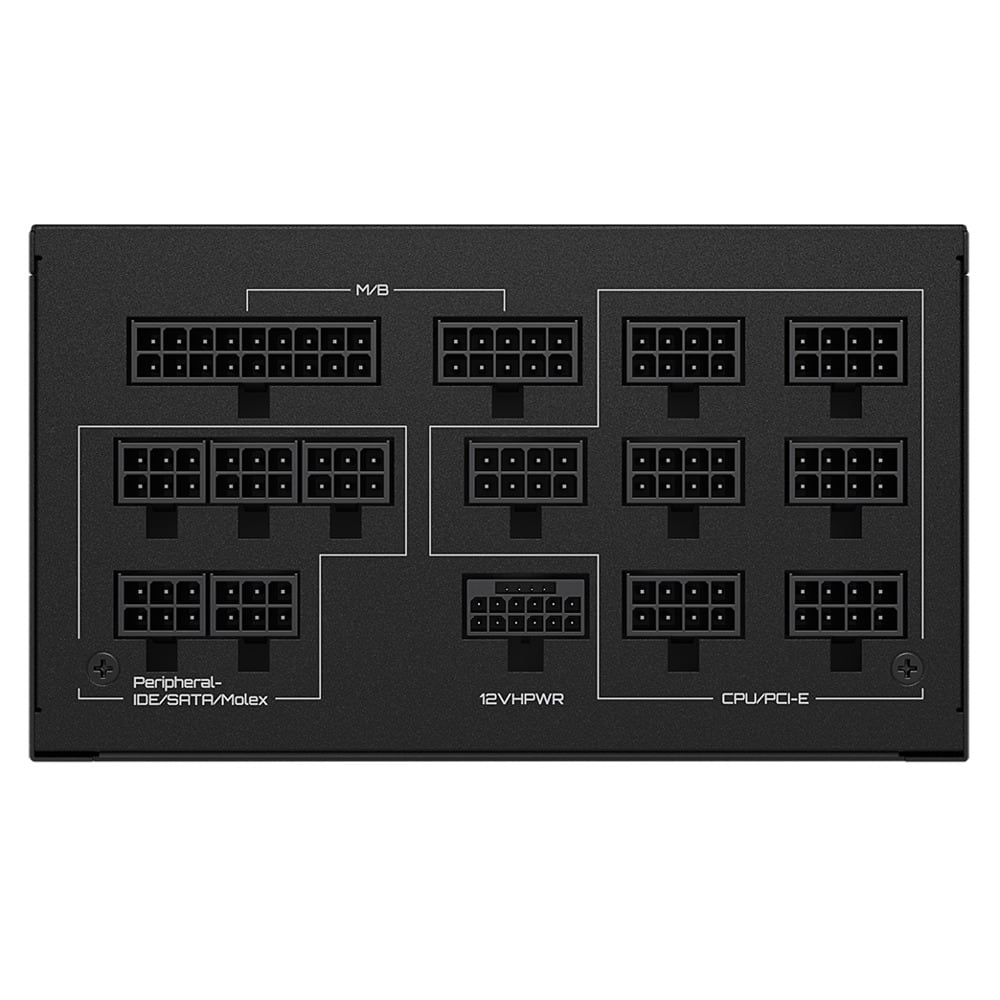

| Cable Type Flat, All black | Connectors - ATX/MB 20+4 Pin x 1 : 610mm*1 - CPU/EPS 4+4 Pin x 2 : 650mm*2 - PCIe 16 Pin x 1: 700mm*1 - PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 - SATA x 12 : 650mm+150mm+150mm+150mm*3 - 4 Pin Peripheral x 6+4-Pin floppy x 2: 600mm+150mm+150mm+150mm*2 |
