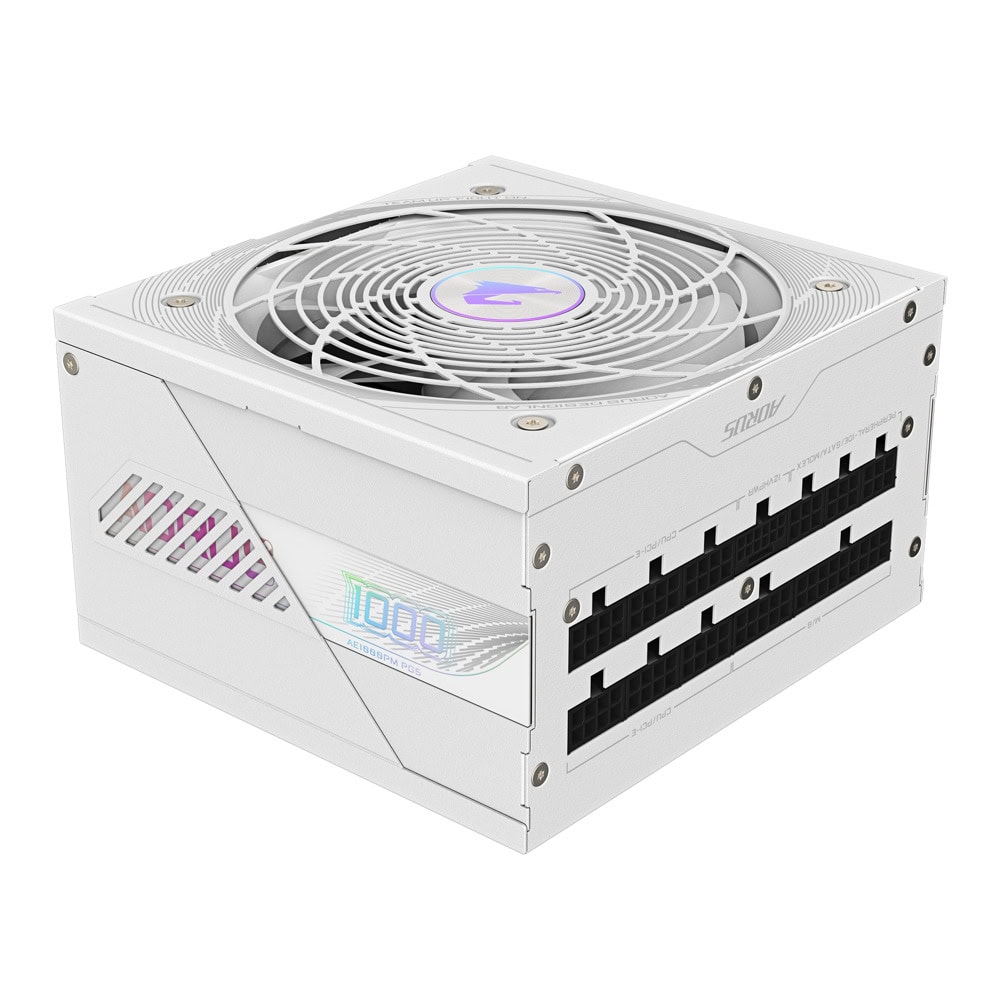

Захранване Gigabyte AORUS ELITE P1000W ICE

AORUS ELITE P1000W ICE

KEY FEATURE

• ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
• 80 PLUS Platinum certified
• 100% Japanese capacitors
• 120mm smart Fluid Dynamic Bearing (FDB) fan
• Compact design
• Fully modular design
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 10 years warranty (Adjusted according to different regions)

ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)

The AE1000PM PG5 ICE can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It's fully compliant with the Intel ATX 3.0 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads. Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5.0 graphics cards, delivering up to 600 watts of power.

Compact design

GIGABYTE's engineering expertise in heat dissipation and material selection has shrunk the length of the power supply to an impressive 140 mm, ensuring compatibility with even space-constrained chassis.

• Type

  Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

• PFC

  Active PFC (>0.9 typical)

• Input Voltage

  100-240 Vac (full range)

• Input Current

  15-6.5A

• Input Frequency

  60-50 Hz

• Output Capacity

  1000W

• Dimensions

  150 x 140 x 86mm

• Fan Type

  120mm Fluid Dynamic Bearing (FDB) Fan

• 80 PLUS

  Platinum

• Efficiency

  92% at typical load

• MTBF

  >100,000 hours

• Protections

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  100-150ms

• Hold Up Time

  >16ms

• Cable Type

  Flat, All white

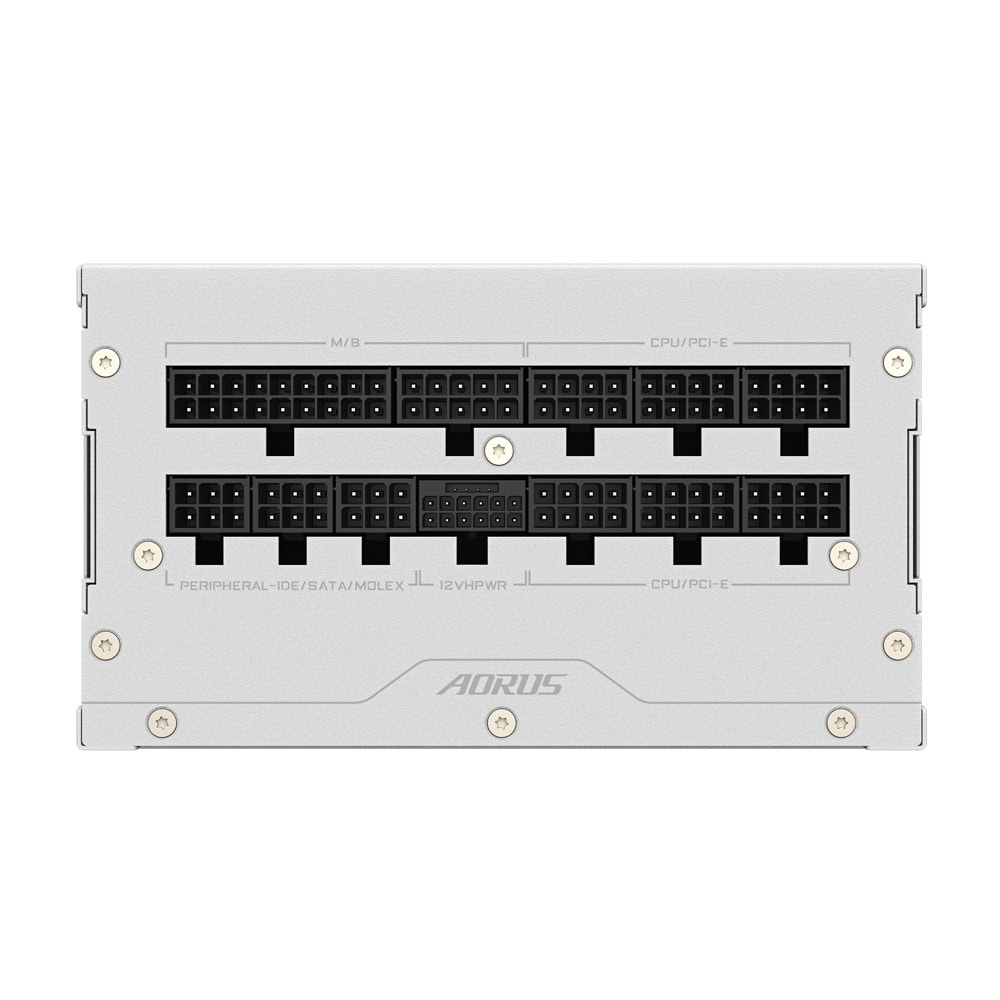

• Connectors

  ATX/MB 20+4 Pin x 1 : 650mm*1
  CPU/EPS 4+4 Pin x 2 : 700mm*2
  PCI-e 16 Pin x 1: 700mm*1
  PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
  SATA x 8 : 600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
