Захранване Fractal Design Ion 3 Black
Fractal Design Ion 3
Future-readyConnect next-generation components with ATX12V 3.1 compatibility and enjoy stable performance with graphics card power excursion support.
Native Gen 5 supportPower modern graphics cards with 16-pin PCIe Gen 5 12V-2×6 support featuring shortened sense pins for a reliable, secure connection.
Certified efficiency80 PLUS Gold–certified for efficient performance with reduced energy use and heat output through optimized power delivery.
Quiet operationFeaturing variable fan speeds for adaptive cooling and the option to activate Zero RPM Mode for near-silent operation under lighter loads.
Designed to lastBuilt with high-quality, reliable components including Japanese 105°C capacitors.

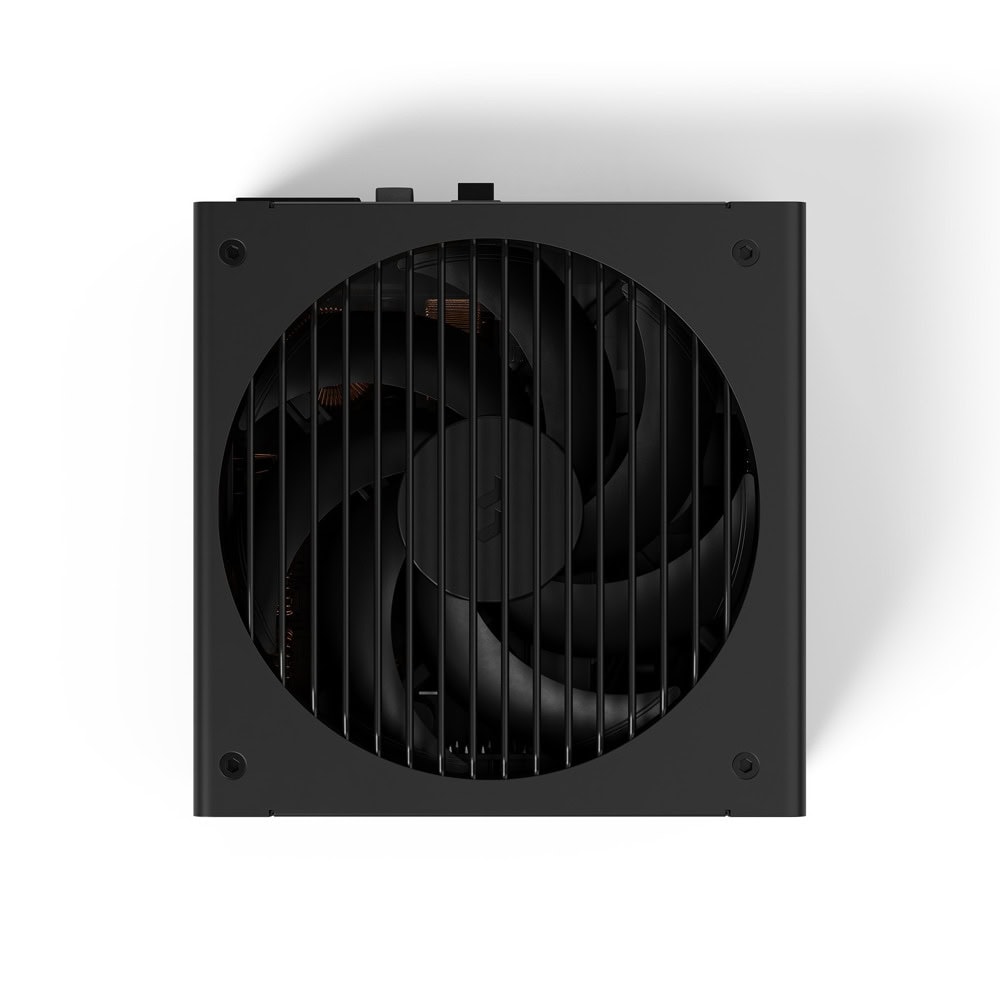

Momentum cooling
Featuring a powerful Momentum 14 fan with a fluid dynamic bearing and LCP blades to ensure lower noise, cooler operation, and a longer lifespan.

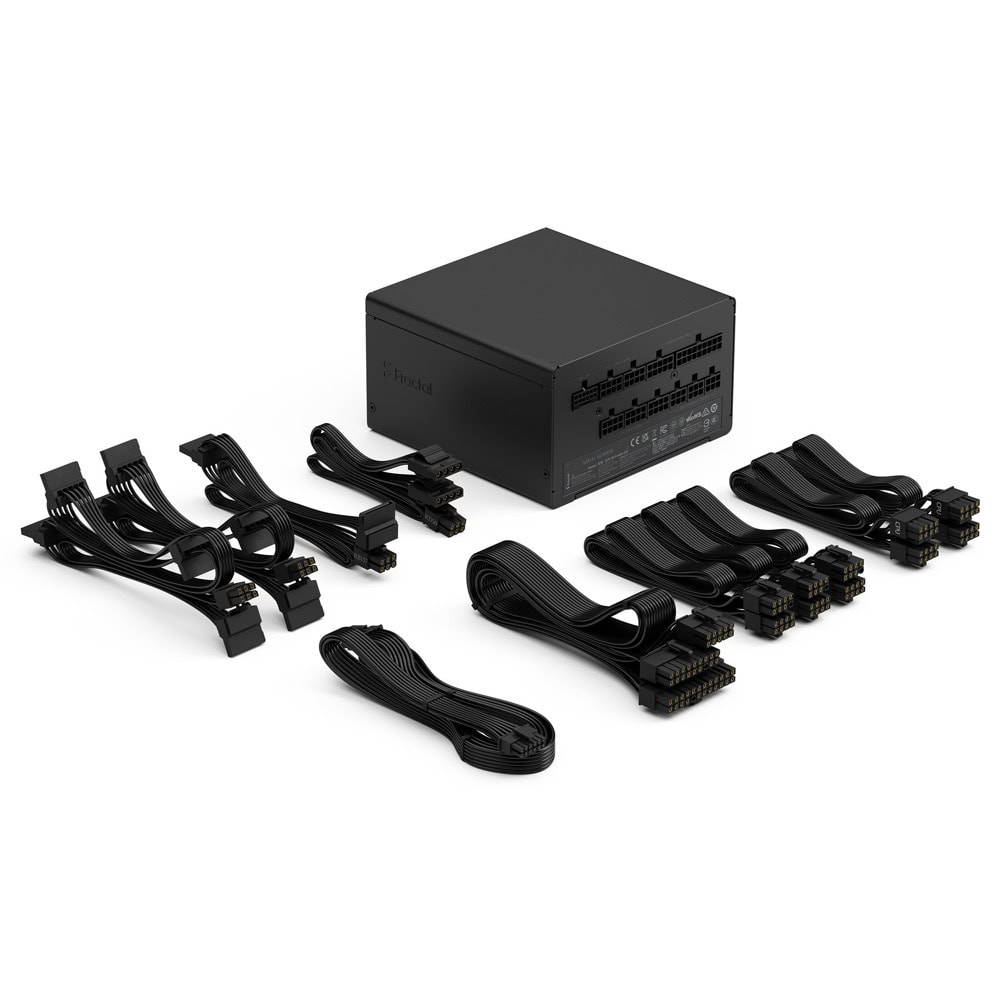

Fully modular
Achieve a clean, uncluttered build with a fully modular design and UltraFlex cables for smoother cable routing.
Характеристики
| 1000W | Да |
| PSU specification compliance | Да |
| PSU specification compliance ATX12V | 3.1 |
| Efficiency Certification | Да |
| 80PLUS® Gold | Да |
| Modular cables | Да |
| Fully modular | Да |
| Fan type | Да |
| Momentum | 14 series fan, with Fluid Dynamic Bearing |
| Semi-passive operation | Да |
| Yes, user selectable (Zero RPM mode) | Да |
| DC cable type | Да |
| UltraFlex, flat cables | Да |
| Cable Color | Да |
| Black PSU | Black, White PSU: White |
| Electrolytic capacitors | Да |
| 105°C Japanese capacitors | Да |
| Number of | 12V rails |
| Single | 12V rail |
| Protection features | Да |
| Life expectancy (MTBF) | Да |
| 100 000 h (25°C ambient temperature) | Да |
| Modern sleep state compatibility | Да |
| C6 and C7 compatible | Да |
| Power factor correction (PFC) | Да |
| Yes, active | Да |
| Input voltage | Да |
| 100-240 V | Да |
| Standby efficiency | Да |
| 45% ErP Lot 6 compliant | Да |
| Maximum operating temperature | Да |
| 40°C (full load), 50°C (80% load) | Да |
| Approvals & certifications | Да |
| CE, UKCA, BSMI, CCC, FCC, TUV, cULus, RCM, ICES, CB, KC | Да |
| Included modular cables | Да |
| ATX | 24 pin, 600 mm |
| 1 | Да |
| ATX | 12V 4+4P, 700 mm |
| 2 | Да |
| PCI-E | 6+2 pin, 650 mm |
| 3 | Да |
| PCI-E Gen5 | 12V-2x6, 700 mm |
| 1 | Да |
| 4x SATA, 400+150+150+150 mm | Да |
| 2 | Да |
| 2x SATA 650+150 mm | Да |
| 1 | Да |
| Total number of SATA connectors | Да |
| 10 | Да |
| 2x Peripheral (Molex) 650+150 mm | Да |
| 1 | Да |
| Total number of Molex connectors | Да |
| 2 | Да |
