Захранване Corsair SF850
Corsair SF850
50°C CONTINUOUS OPERATING TEMPERATUREEnsures reliable power for your SFF PC, even under high-stress conditions.
105°C-RATED CAPACITORSBuilt with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIEDThe ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance. PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA GeForce RTX 40 Series.
QUIET OPERATION WITH ZERO RPM MODEA fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.
Includes
- 80 PLUS Platinum rated efficiency
- ATX 3.1 compliant, supporting PCIe 5.1

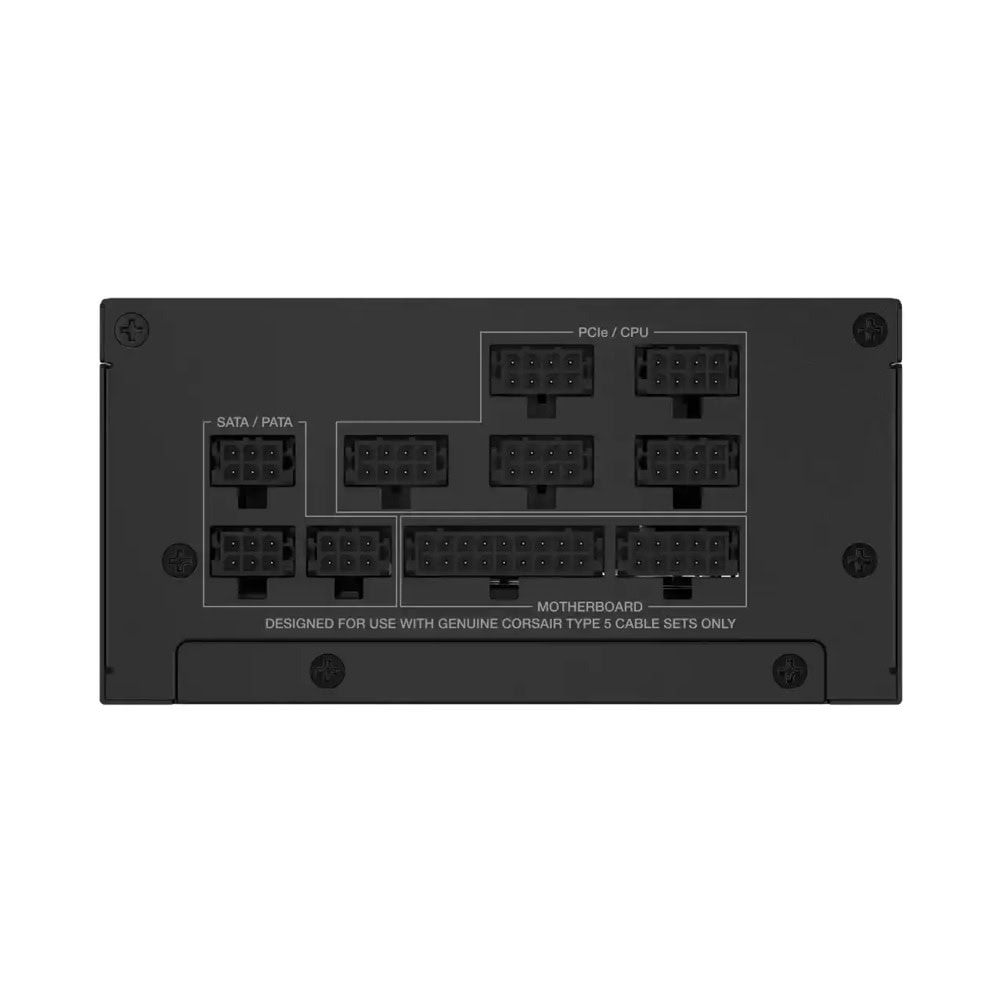

- Fully modular, Type-5 Micro-Fit PSU connectors

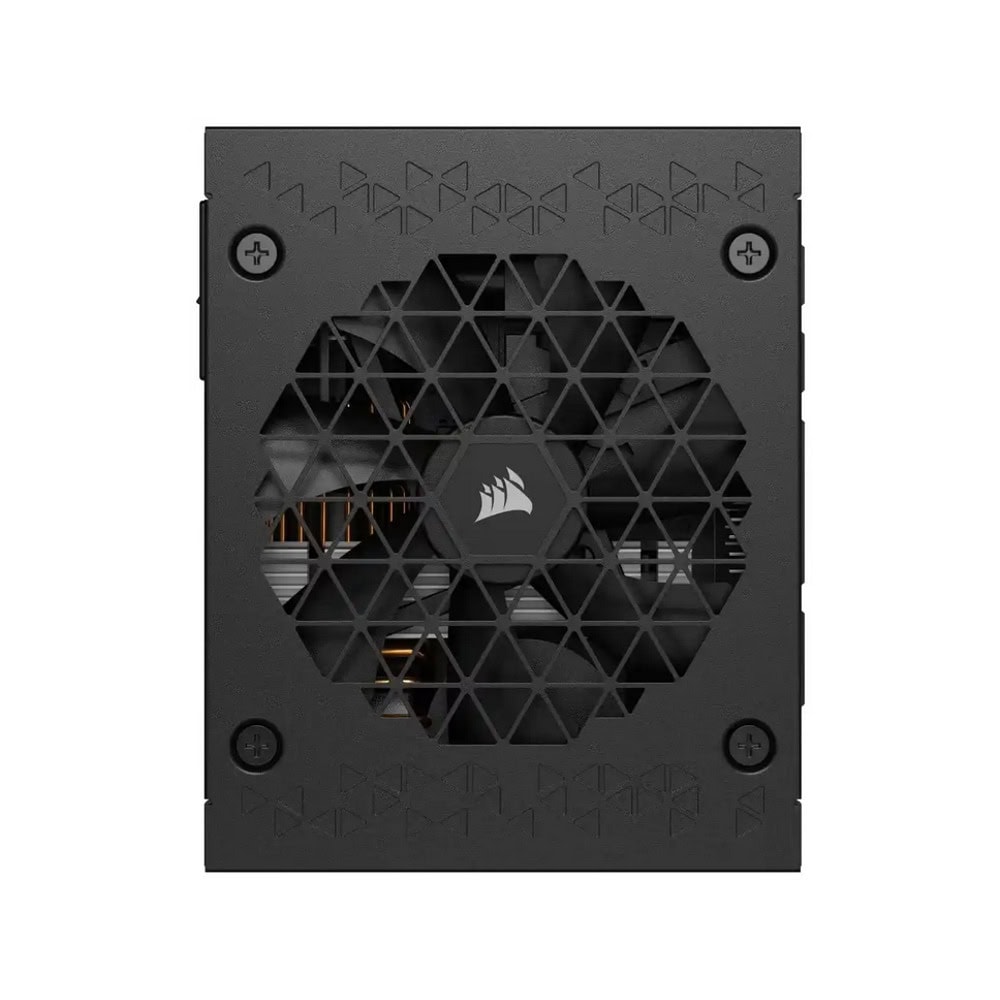

- 92mm PWM cooling fan with Zero RPM mode
Характеристики
| AC Input Rating | AC Input: 100–240V Input Current: 10A-5A Frequency: 47~63Hz : Max Load · Max Output +3.3V: 20A · 130W +5V: 20A +12V: 70.8A · 850W +5VSB: 3A · 15W TOTAL POWER: 850W Cable listing QTYCableConnectors per cableTotal connectorsConnector spacingTotal lengthCable Type 1Modular ATX Cable (24-pin)11-300mm (± 10mm)Individually Sleeved 2EPS / ATX 12V 8-pin (4+4)12-400mm (± 10mm)Individually Sleeved 3PCIe 8-pin (6+2)13-400mm (± 10mm)Individually Sleeved 112VHPWR (12+4) pin11-400mm (± 10mm)Individually Sleeved 1SATA (4 Straight SATA)44100mm, 115mm, 115mm, 115mm445mm (± 10mm)Individually Sleeved 1SATA (4 Right SATA)44100mm, 115mm, 115mm, 115mm445mm (± 10mm)Individually Sleeved 1PATA (3 PATA)33100mm, 115mm, 115mm330mm (± 10mm)Individually Sleeved |
