Захранване Cooler Master X Mighty 2000
Cooler Master X Mighty 2000
Unleash Next-Gen Might
The X Mighty Platinum is a powerhouse blending high-capacity performance, top-tier industrial-grade IC components, and sophisticated interleaved PFC topology. This PSU is engineered to meet the demanding needs of server and artificial intelligence industries, featuring dual 12V-2x6 connectors designed for rigorous, high-performance applications.
AI-Ready Dual GPU Support with Color-Coded Precision
Supports dual 12V-2x6 connectors for dual GPU configurations, ideal for AI and machine learning workloads. Features dual-color connects (black and purple) to ensure correct installation.
Infineon Industrial-Grade Chipset for Enduring ReliabilityInfineon industrial-grade chipset ensures long-lasting reliability
Active Bridge Rectifier for Boosted Efficiency and Stability
Active bridge rectifier for enhanced power efficiency and stability
Premium Japanese Capacitors for Silent, Long-Lasting Performance
High-quality Japanese capacitors improve longevity and reduce electrical noise
PMBus Support for Enterprise-Grade Performance MonitorsPMBus port support offers enterprise-grade performance monitoring capability
Характеристики
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 115 - 240V (115 - 240V for 1600W / 200 - 240V for 2000W) |
| Input Current | 16A (Max) |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 180 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | FDB |
| Fan Speed | 2500 RPM |
| Efficiency | ≥ 94% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum of EU Internal |
| ErP 2014 Lot 3 | Да |
| Работна температура | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulator | ycUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.) |

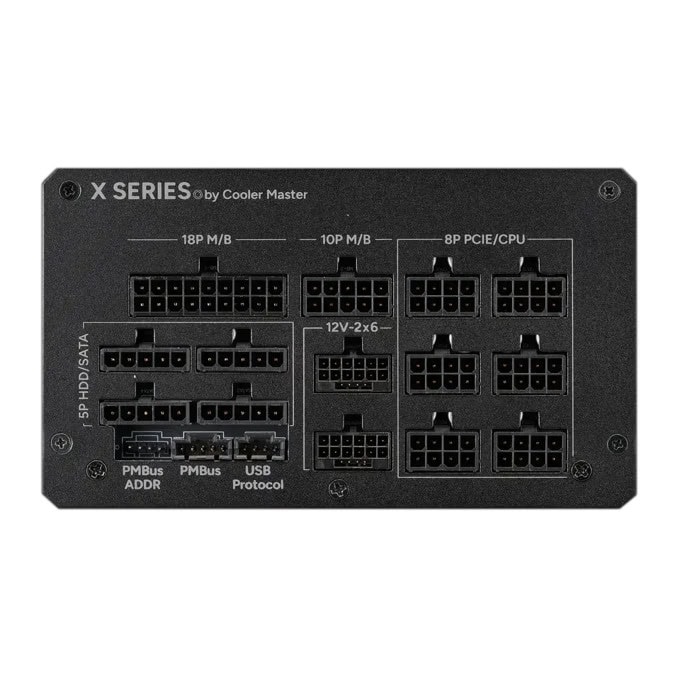

| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2x6 Connectors | 2 |
| USB 10P Connector | 1 |
| PMBus 5 Pin Connector | 1 |
| 80 Plus Efficiency | Platinum |
| Modular | Fully Modular |
| Форм фактор | ATX |
| Watts | 2000W |
