Захранване Chieftec Task TPS-700S

Chieftec TPS-700S, 700W retail

Performance
Model: Task 700W
Article no.: TPS-700S
EAN code: 0753263076502
Weight (without/with package): 1.74 kg / 2.15 kg
AC Input: 100-240V / 10.0A
Frequency: 47-63Hz
+5V: 17A
+3,3V: 19A
+5V & +3,3V combined: 110W
+12V 1: 648W / 54A
+12V 2 -
+12V 1 & +12V 2 combined -
P.F.: >0,9
-12V: 0,3A / 3,6W
+5VsB: 2,5A / 12,5W
Maximum Power: 700W

Connectors
24PIN ATX: 1
8 PIN EPS (4+4): 1
8 PIN PCIe (6+2): 2
SATA: 6
MOLEX: 3

Cable length
24PIN ATX: 650
8 PIN EPS (4+4): 650
8 PIN PCIe (6+2): 500/150
MOLEX: 500/150/150
SATA: 500/150/150
SATA: 500/150/150

Features
Specification: ATX 12V 2.3
Form factor: PS II
Efficiency: 80 PLUS® Bronze
Dimension (DxWxH): 140 mm x 150 mm x 87 mm
PFC: Active PFC (0.9)

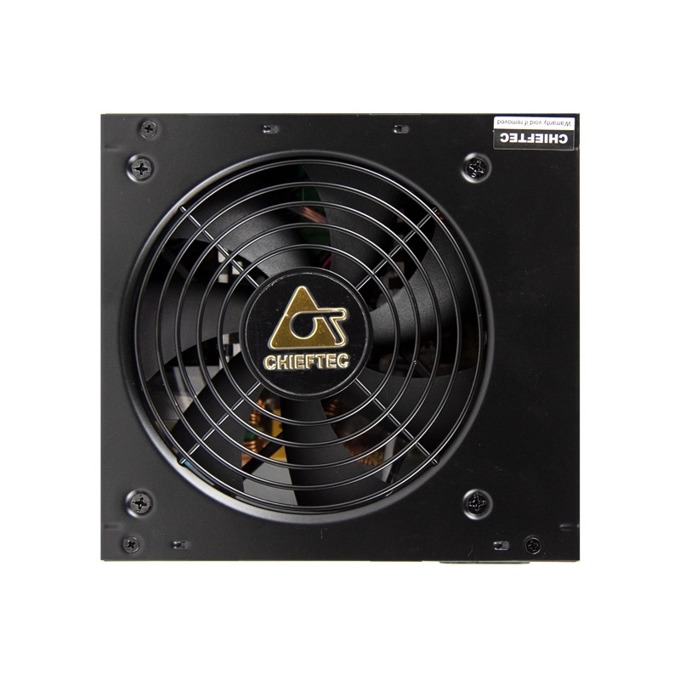

Fan: 120mm silent fan

Security
AFC (Automatic Fanspeed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Undervoltage Protection)
