Chieftec
Захранване Chieftec Polaris 3.0
Артикул №: 1000025885
Категория:
Захранвания Настолни компютри
183,99 €
✓ Налично във външен склад
OVERVIEW
The CHIEFTEC Polaris 3.0 series is designed to Intel’s ATX 3.0 standard and supports PCIe GEN 5 with 80 PLUS® GOLD certified efficiency, promising exceptional performance. Polaris 3.0 features state-of-the-art technical design including LLC half-bridge converter with DC- to-DC technology, as well as Japanese main capacitors to achieve low ripple and tight voltage regulation. The Polaris 3.0 135mm FDB silent fan optimizes the balance between cooling and noise with excellent durability. Fully modular cable management ensures a clean and convenient build inside any system.
JAR Computers може да предложи /смяна/монтаж в наш сервиз или при .
Tech specs
| Weight (Net/Gross) | 3.00kg / 3.34kg |
| AC Input | 100-240V / 15-8A |
| Честота | 50 - 60Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V1 | 87.5A |
| +12V1, +12V2 combined | 1050W |
| P.F. | >0.9 |
| -12V | 0.3A / 3.6W |
| +5VSB | 3.0A / 15W |
| Maximum Power | 1050W |

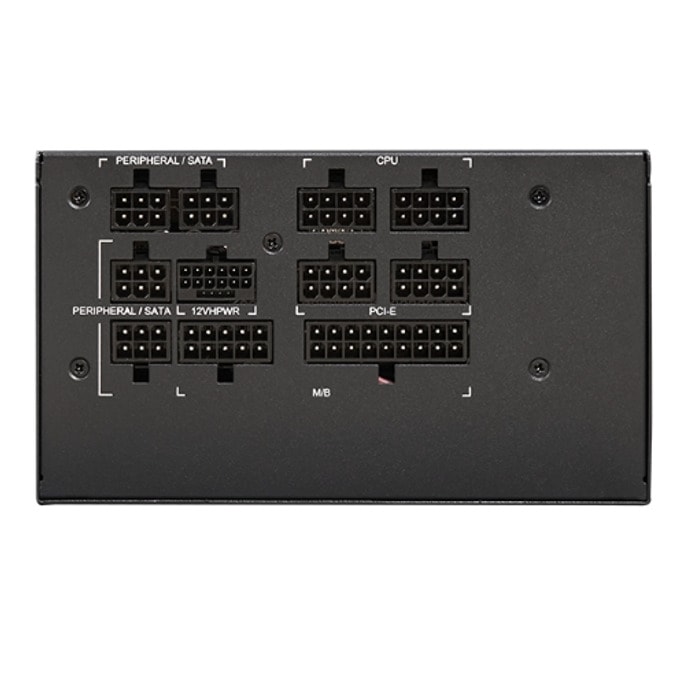

| 20+4 PIN ATX | 1 |
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 4 |

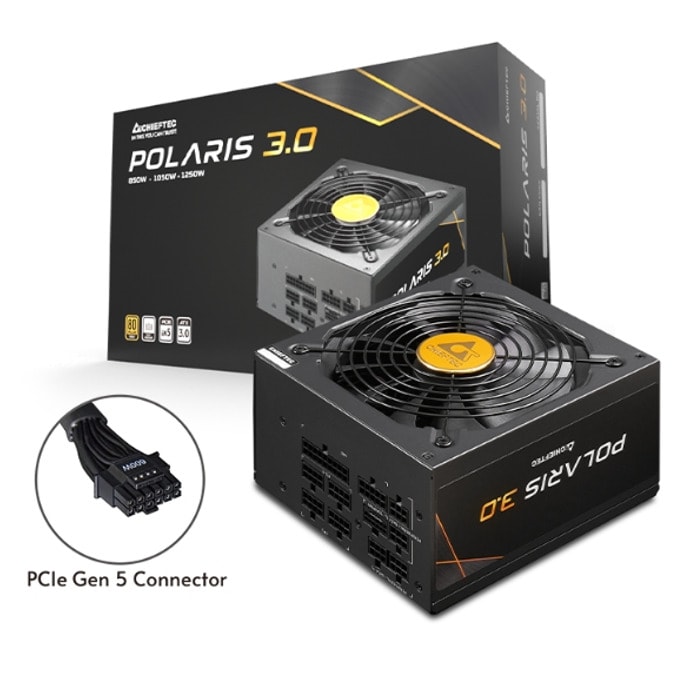

| 16 PIN PCIe GEN5 | 1 |
| SATA | 12 |
| MOLEX | 4 |
| 20+4 PIN ATX | 650 |
| 8 PIN EPS (4+4) | 2 x 650 |
| 8 PIN PCIe (6+2) | 2 x 600/100 |
| 16 PIN PCIe GEN5 | 600 |
| SATA | 3 x 550/100/100/100 |
| MOLEX | 550/100/100/100 |
| ATX12V Version | ATX 12V 3.0 |
| Efficiency | 80Plus Gold |
| Dimension (DxWxH) | 160 mm x 150 mm x 86 mm |
| PFC | Active PFC (0.9) |
| Fan | 135mm FDB fan |
| Security | AFC (Automatic Fan speed Control) · OPP (Overload protection) · OTP (Over Temperature Protection) · OVP (Overvoltage protection) · SCP (Short-circuit protection) · SIP (Surge & Inrush Protection) · UVP (Under Voltage protection) · OCP (Over-Current Protection) |
