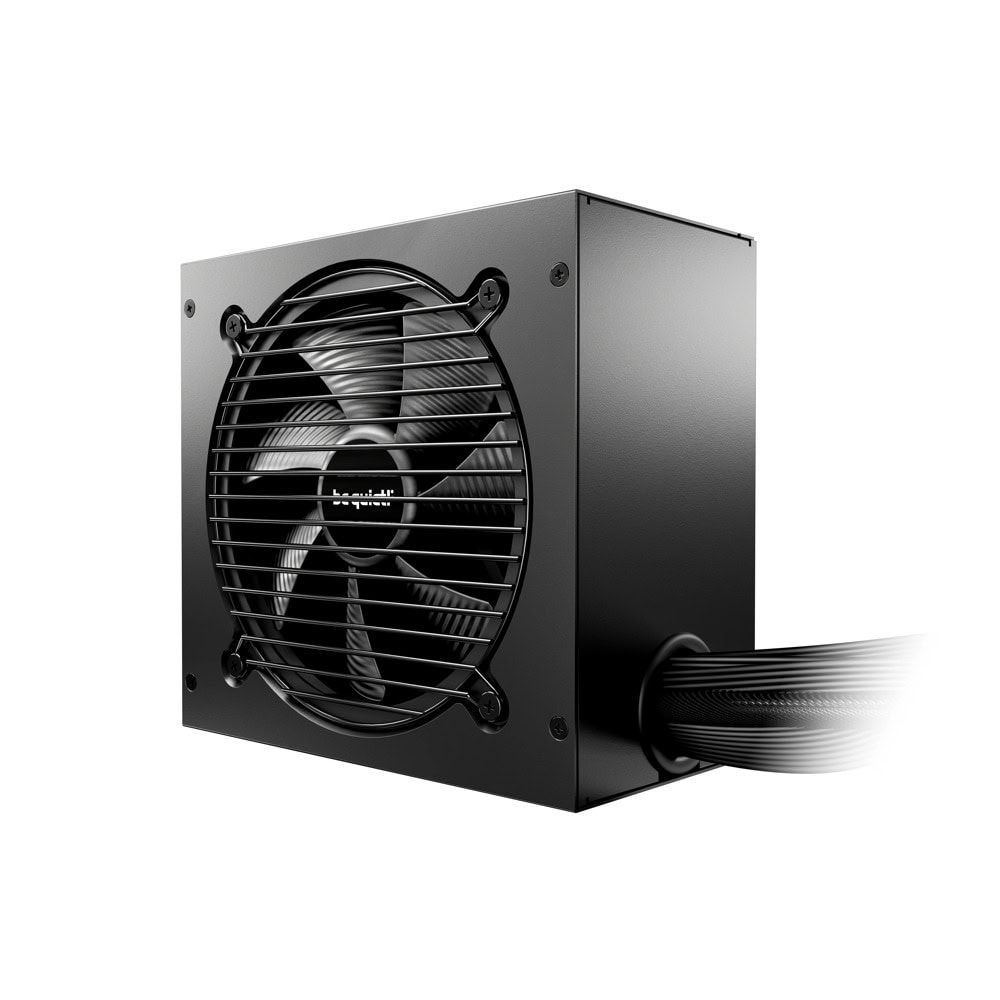

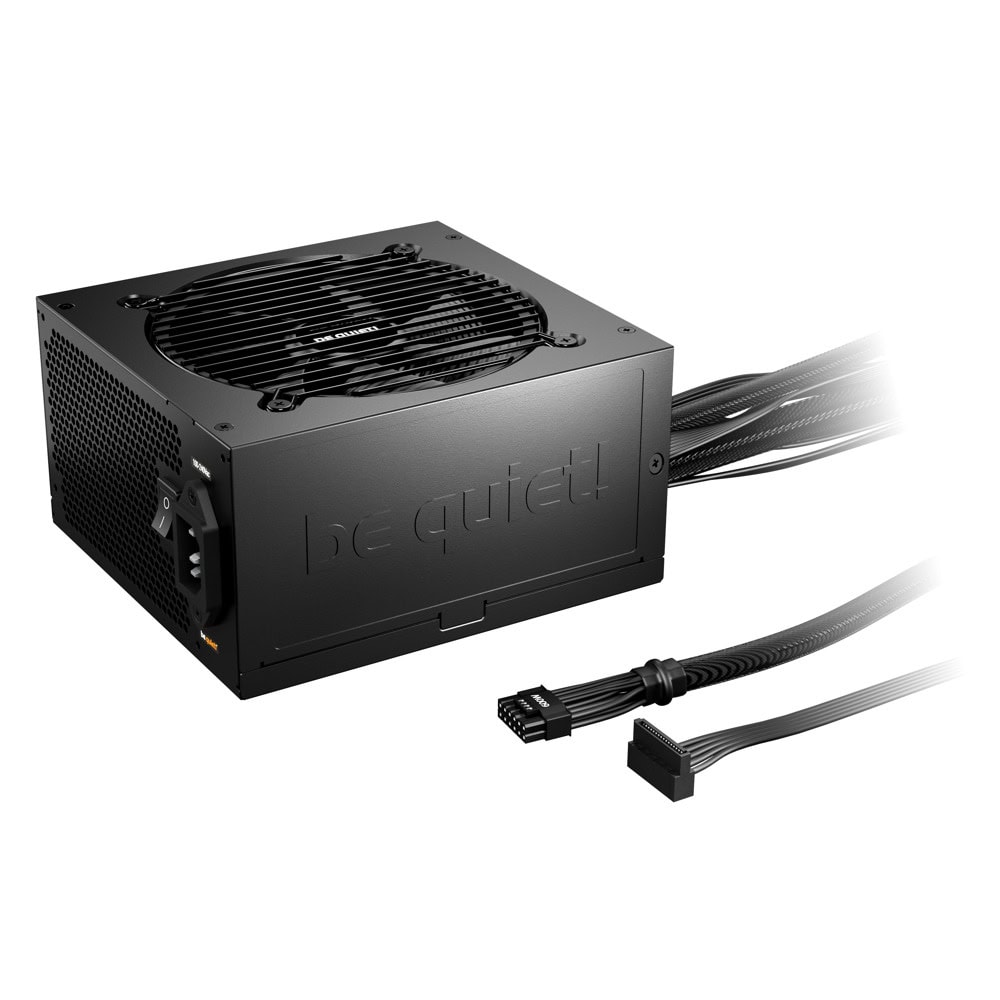

Захранване be quiet! Pure Power 12
80 Plus Gold Certified
Very high operating efficiency
Pure Power 12 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.9%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 1000W is always the correct choice for quiet systems and gaming PCs!
Future-proof your system
Fulfills all ATX 3.1 specifications
Pure Power 12 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
Exceptionally silent operation
Achieved by a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality.
Характеристики
| Form factorVersion | 3.1 |
| Form factor EPS | 12VVersion 2.92 |
| Voltage (Vac)100 - | 240 |
| Frequency (Hz)50 - | 60 |
| Input current (A)12 / | 6 |
| Power factor at | 100% load>0.98 |
| Average life time (h / | 25°C)>100,000 |
| PLUS certificationGold | 80 |
| Efficiency (%) at | 230V, 2% load66.3 |
| Efficiency (%) at | 230V, 10% load89.2 |
| Efficiency (%) at | 230V, 20% load92.7 |
| Efficiency (%) at | 230V, 50% load92.9 |
| Efficiency (%) at | 230V, 100% load90.6 |
| dB(A) at | 10% load8.6 |
| dB(A) at | 20% load8.9 |
| dB(A) at | 50% load9 |
| dB(A) at | 100% load31.6 |
| Max. combined power | 12V (W)1000 |
| Max. combined power | 12VHPWR (W)600 |
| Max. combined power | 3.3V + 5V (W)120 |
| Hold-up time at | 100% load (ms)17.8 |
| Hold-up time at | 80% load (ms)22.0 |
| Power good signal (ms)100 - | 150 |
| PCI-e | 6+2-pin (GPU)3 |
| PCI-e | 6-pin (GPU)- |
| Dimensions without cable (L x W x H), (mm)160 | x 86 x 150 |
