Захранване Asus ROG THOR III
Артикул №: 1000142400
Категория:
Компютърни компоненти
799,99 €
✓ Ограничена наличност

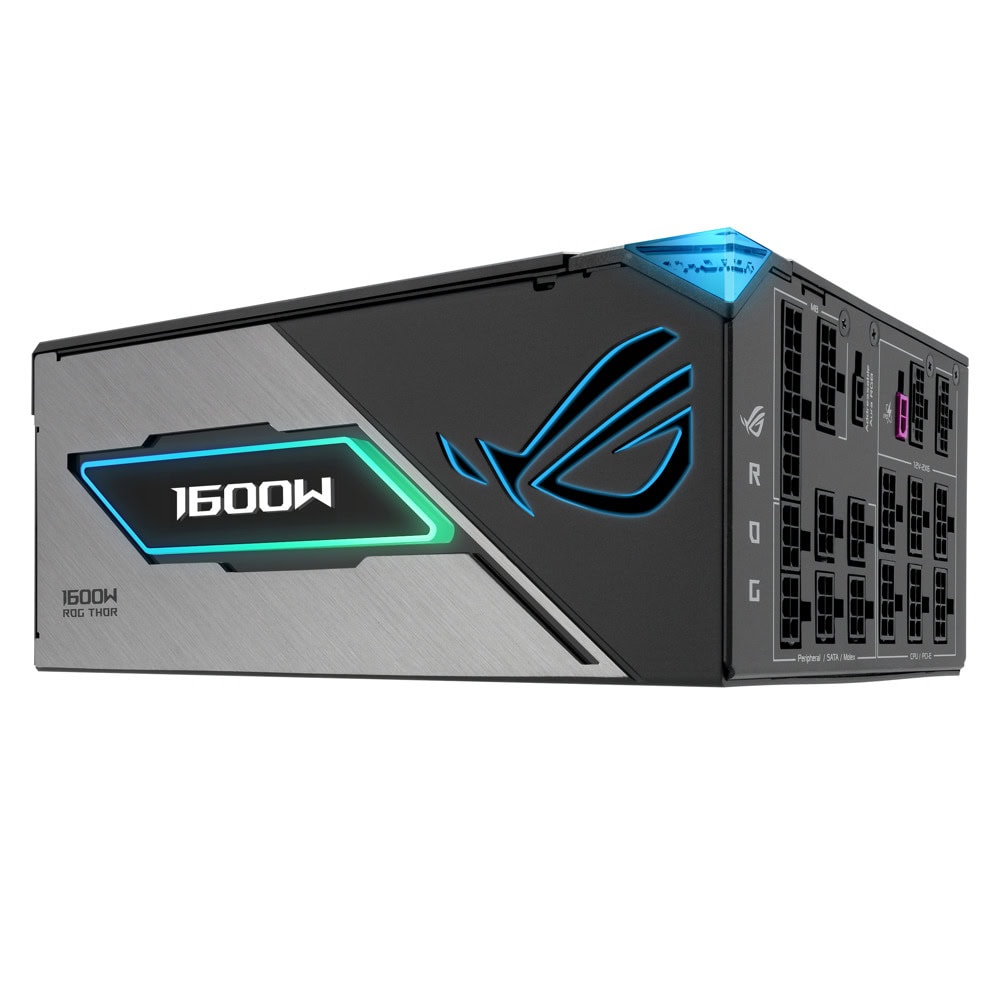

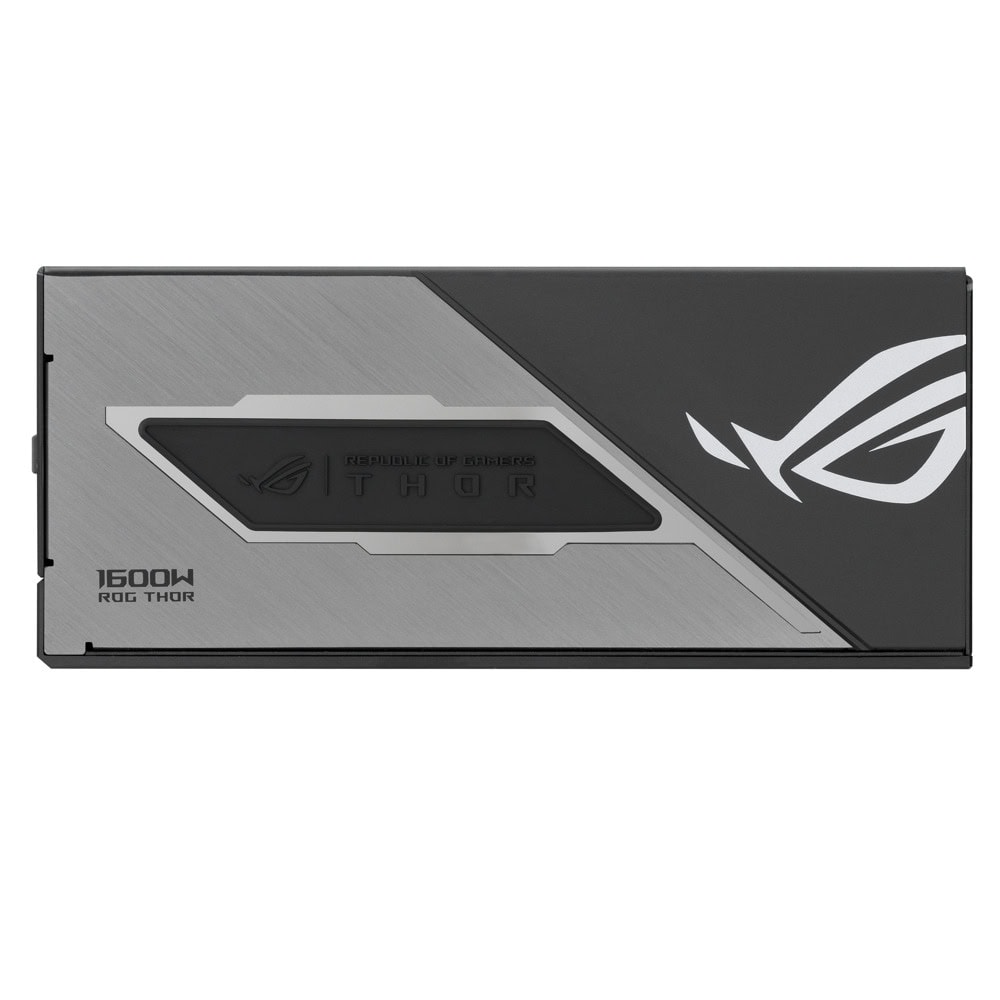

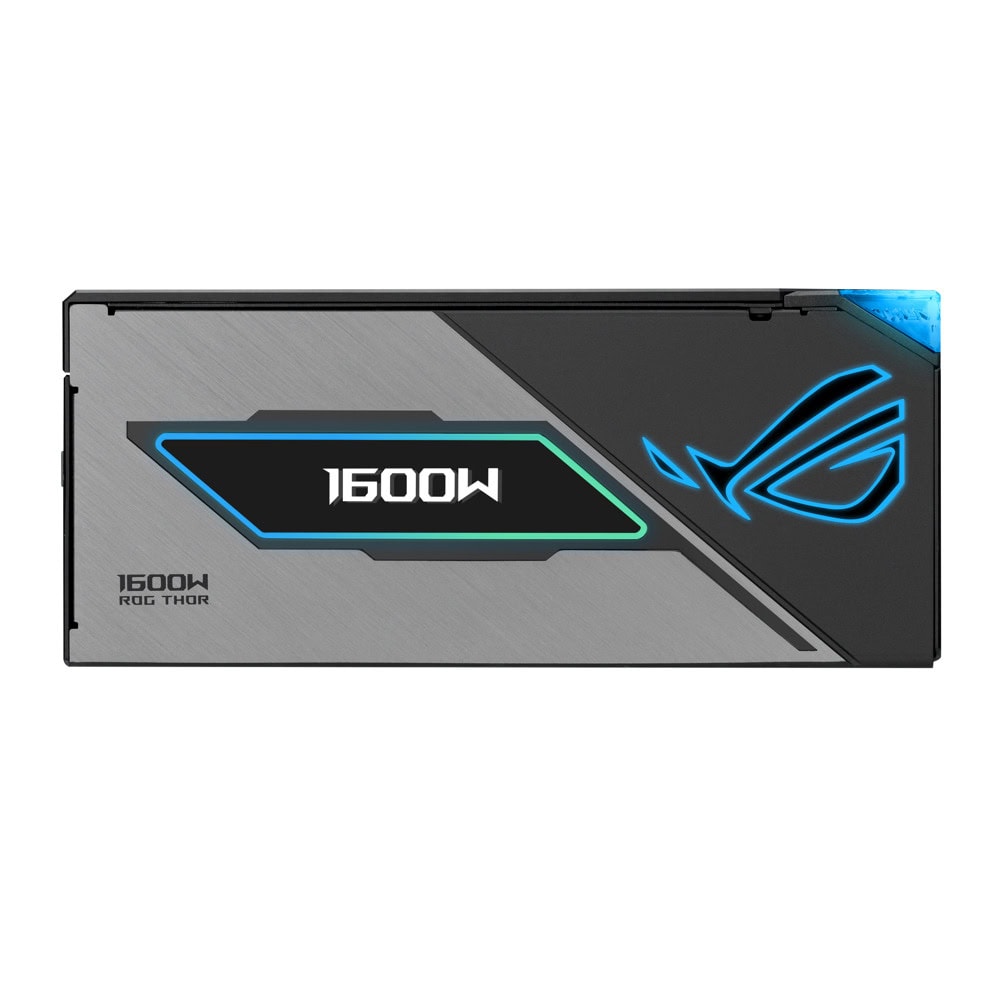

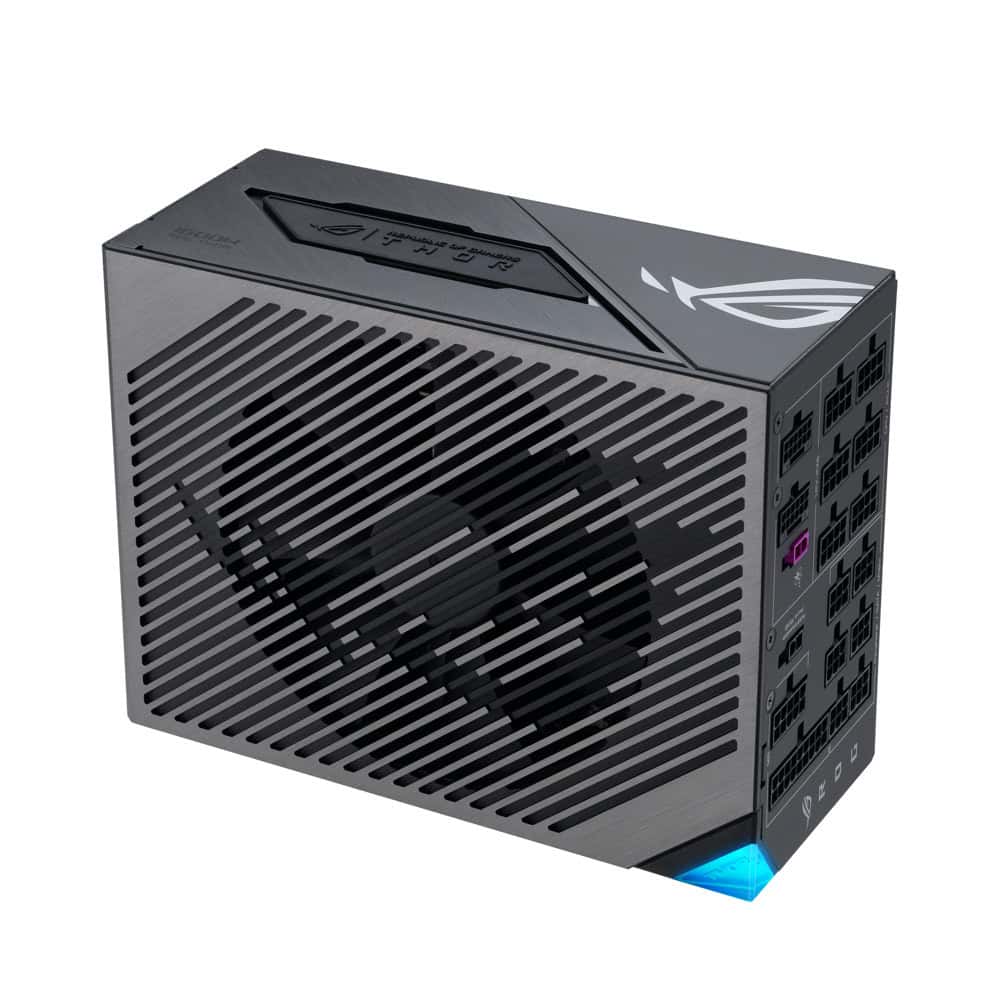

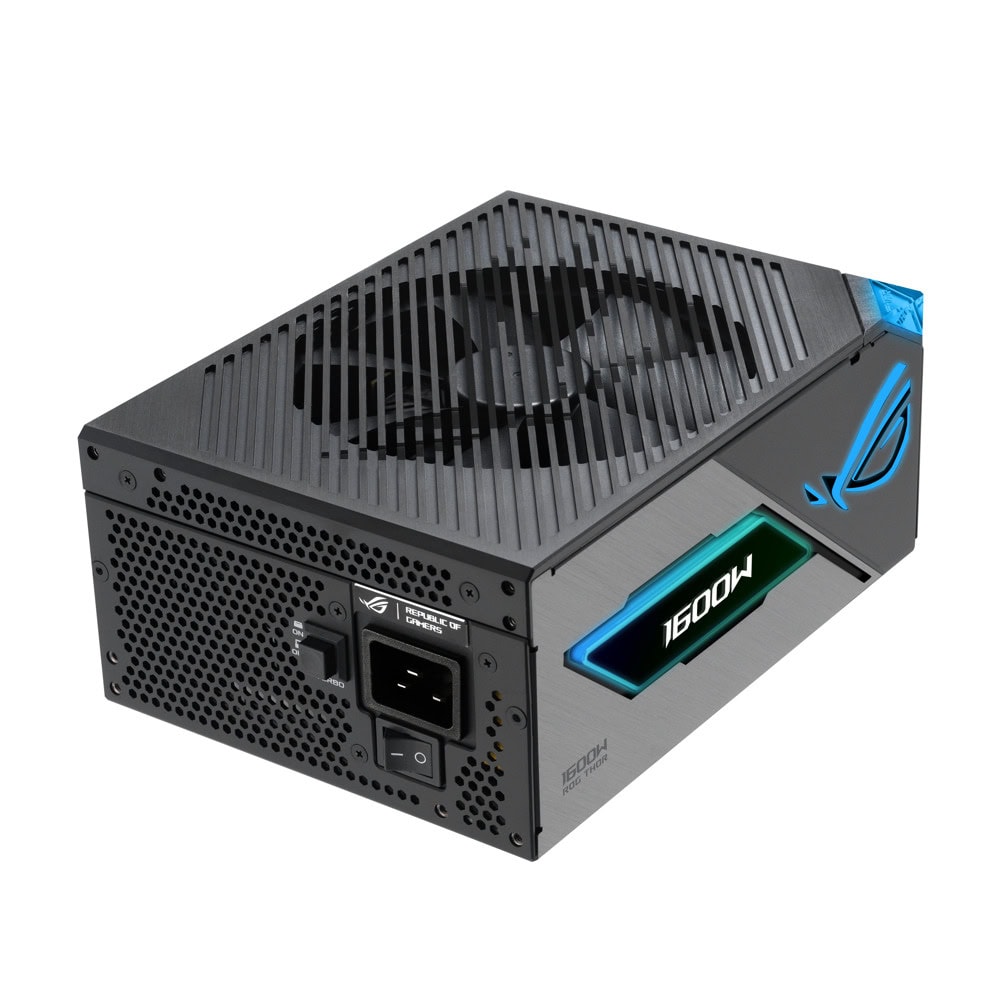

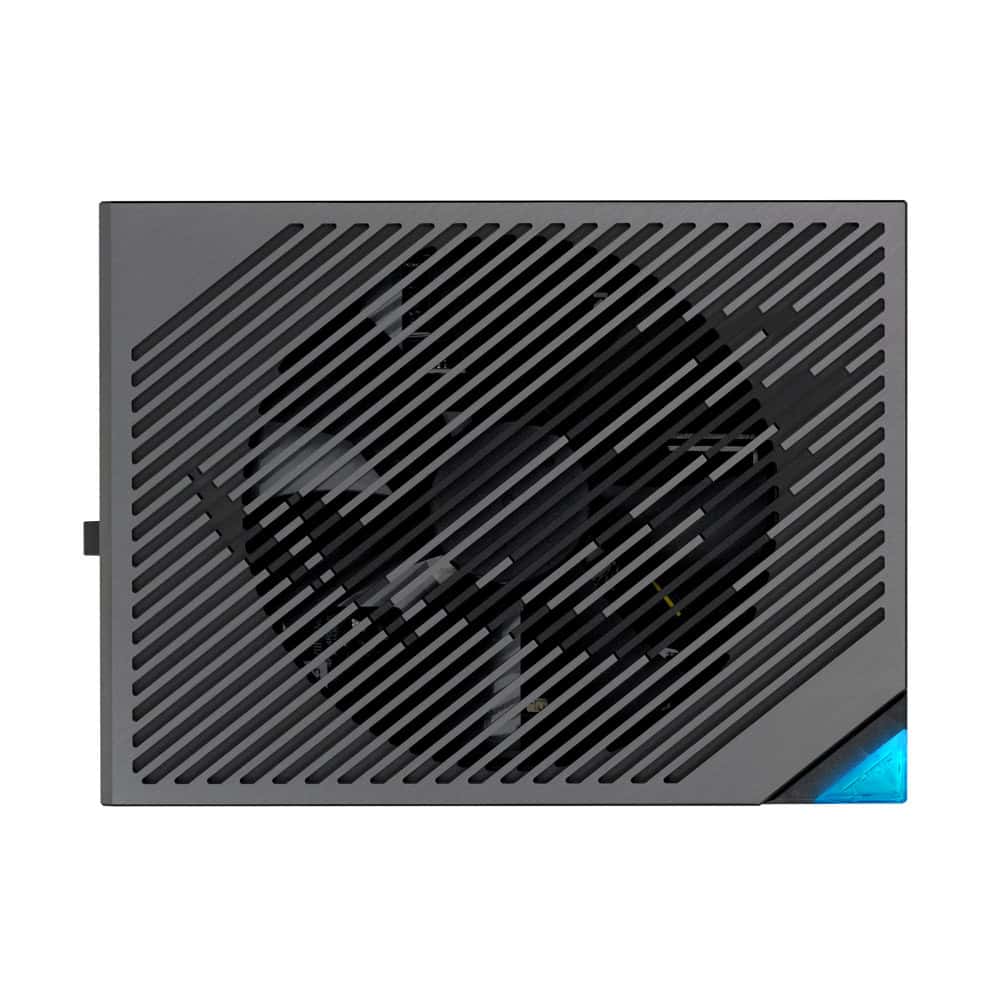

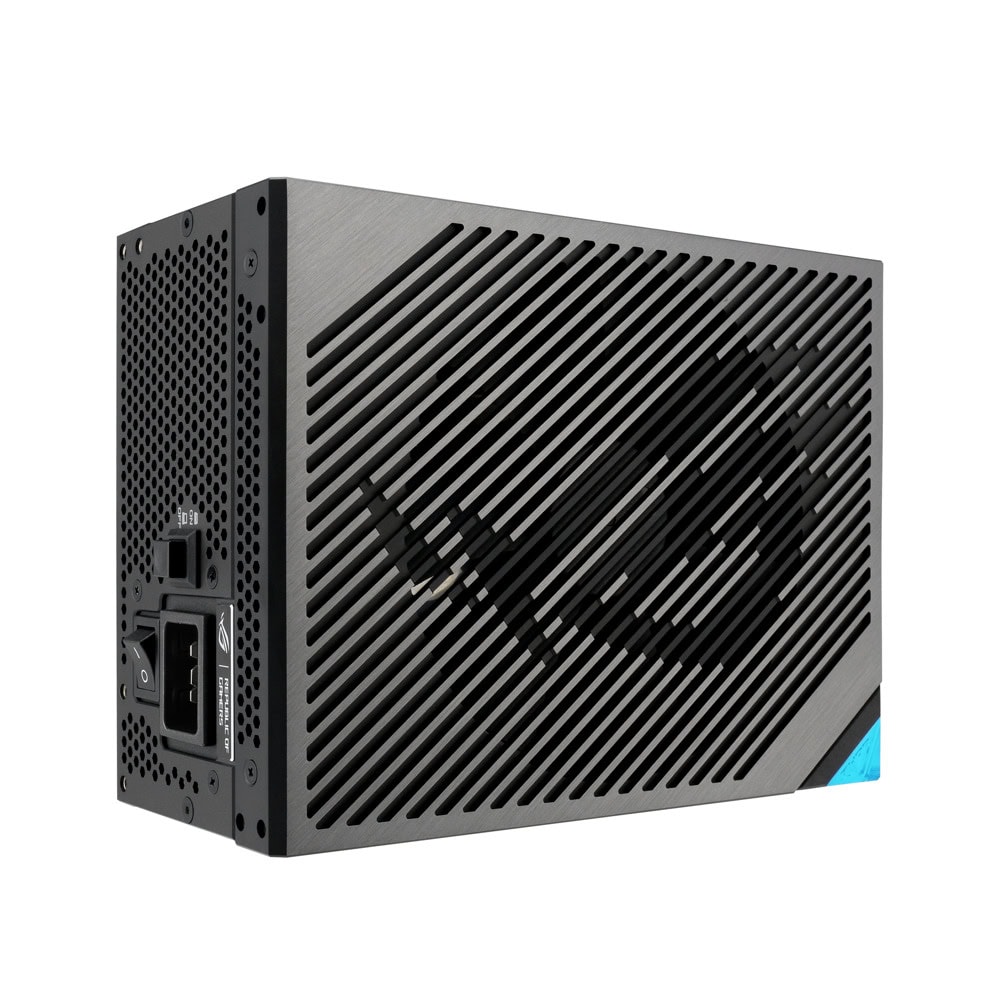

ROG THOR 1600W Titanium III
Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1600W Titanium III delivers unmatched performance and rock-solid stability for your ultimate PC build
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

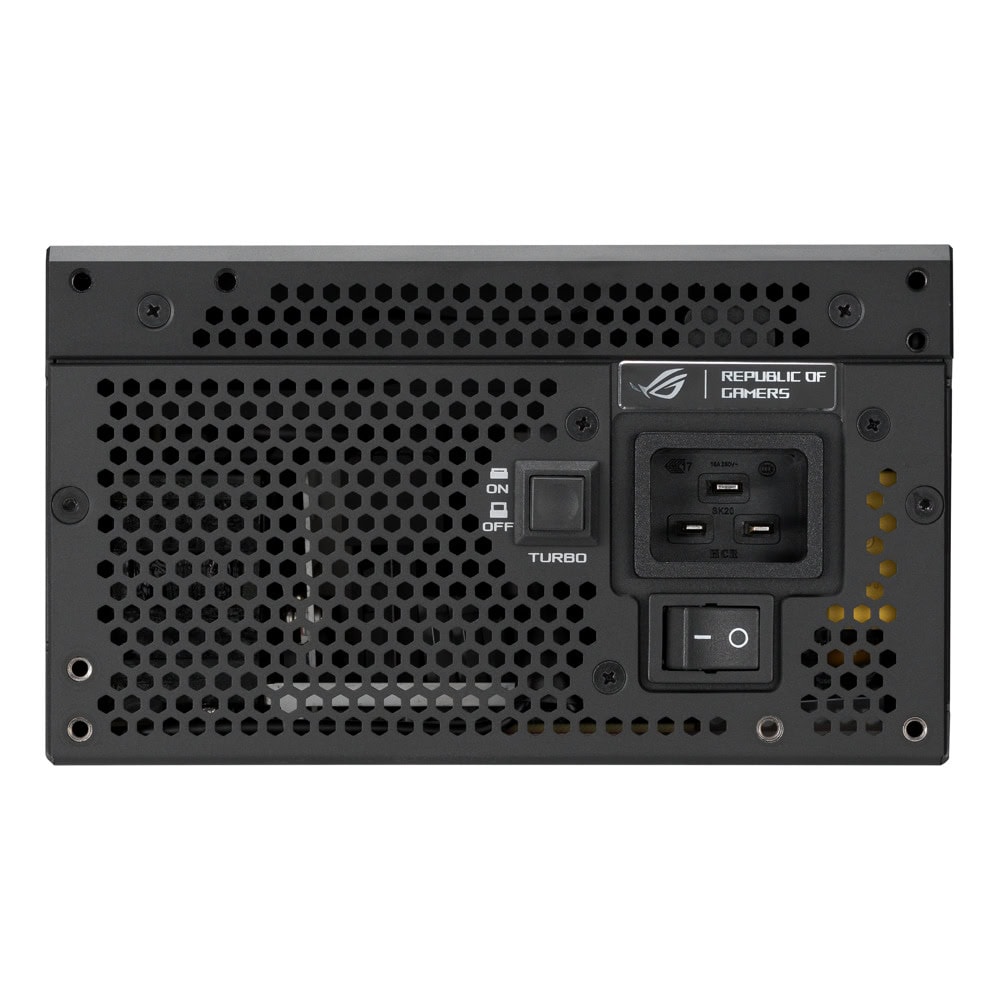

- Turbo Mode : Premium components and a fine-tuned fan curve unlock support for extended power excursions.
- ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
- Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
- ATX 3.1 compatible: ROG Thor Titanium III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
- Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
- 80 PLUS Titanium certified: ROG Thor Titanium III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
GaN MOSFET
The ROG Thor 1600W Titanium III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.
ROG Heatsinks
Характеристики
| Cool under pressure | ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation. |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Размери | 200 x 150 x 86 mm |
| Efficiency | 80Plus Titanium |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 30A 25A 133.3A 0.3A 3A |
| Combined Load | 125W 125W 1600W 3.6W 15W |
| Total Output | 1600W |

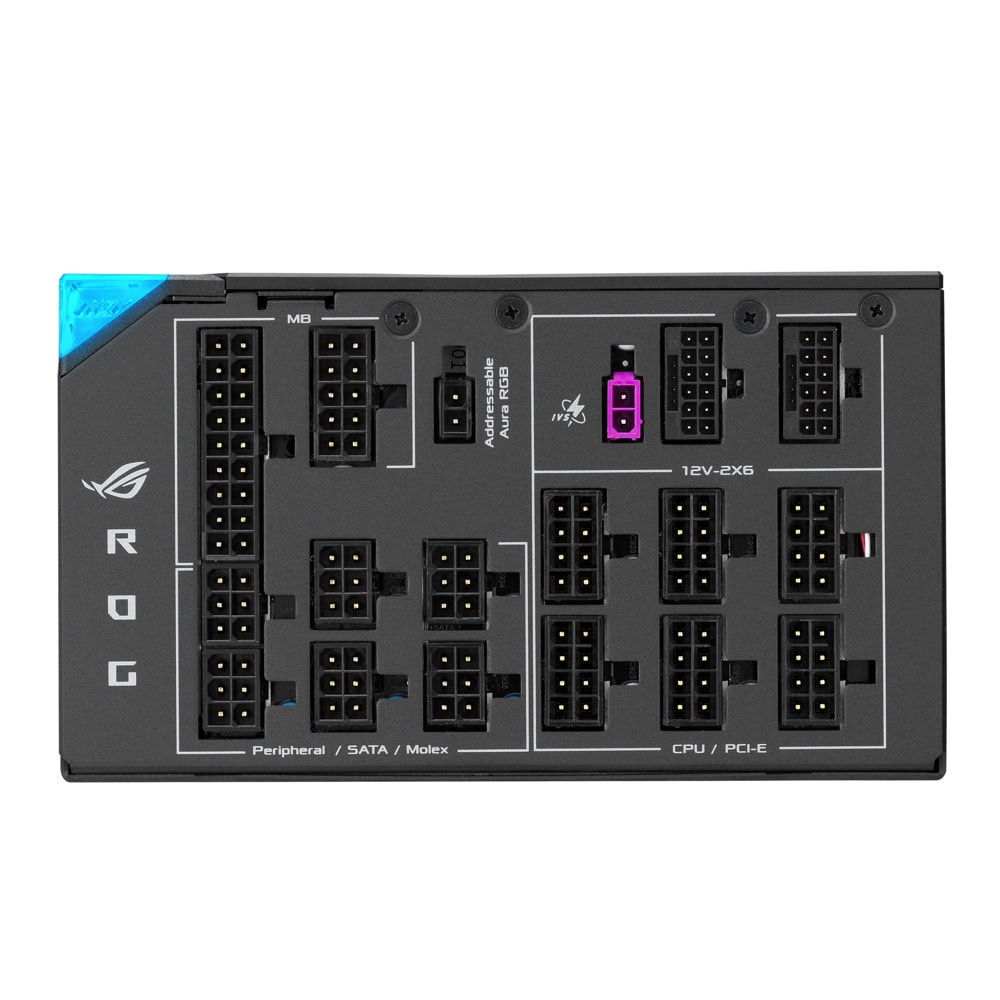

| Cable Connectors | MB 24/20-pin x 1 |
| CPU 4+4-pin x 2 | PCI-E 6+2-pin x 4 |
| PCI-E 16-pin x 2 | SATA x 10 |
| PERIPHERAL x 9 | Тегло |
| 2.80 kg (single PSU) | AURA SYNC |
| ARGB | Cybenetics Noise Level Certification |
| TBD | 0dB Technology |
