Захранване A-data XPG Cybercore II (Разопакован продукт)
CYBERCORE II
BETTER THAN ULTIMATE
In light of the new Intel ATX 3.0 design guide specifications, the XPG CYBERCORE 80 PLUS Platinum series is getting an upgrade. With stricter voltage and current regulation guidelines changes needed to be implemented in order to safely and efficiently accommodate next-generation hardware. XPG has even upgraded the CYBERCORE cooling solution with a top-of-the-line XPG VENTO PRO 120 PWM Fan by Nidec to deliver optimum performance. As always, XPG is determined to provide gamers with products that meet the latest hardware demands.
Next-Gen ReadyXPG CYBERCORE II series power supply units are compatible with Intel ATX 3.0 design guide specifications. All units come with a 12VHPWR connector as well. Upgrade your system to an ATX 3.0 ready power supply and be fully prepared for the next generation of high-performance components! Whether you're a gamer, creator, or AI developer, an ATX 3.0 PSU is the new standard for future hardware. Don’t get left behind.
Supports Next-Gen Graphics CardsXPG CYBERCORE II is compatible with the latest high-end graphics cards, with a 12VHPWR (12+4 pin) connector out of the box with every unit.

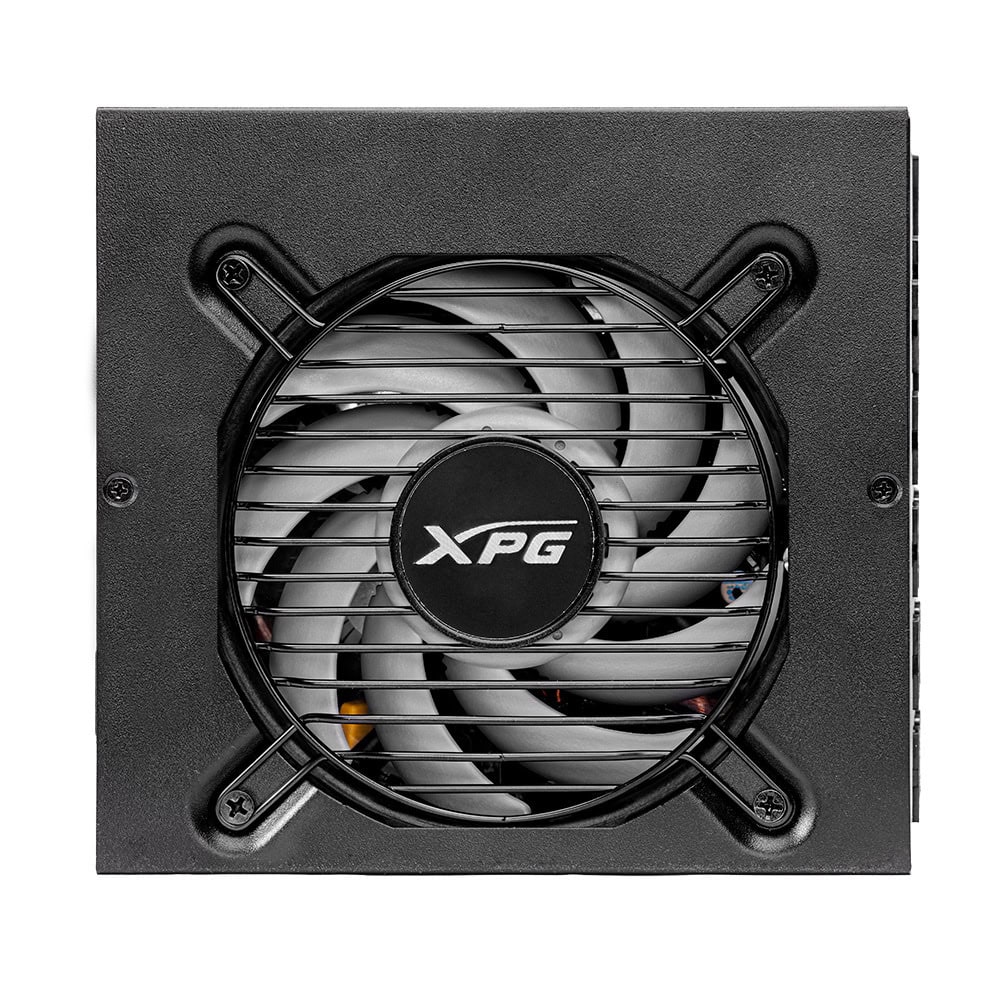

XPG VENTO PRO 120 PWM FAN by NidecXPG CYBERCORE II is the latest XPG and Nidec collaboration, utilizing our highest tier XPG VENTO PRO 120 PWM Fan for its high cooling efficiency, featuring Dual Bearing and patented technology to maintain an excellent balance between noise and life expectancy (60,000 hours at 60℃).
All Japanese 105℃ CapacitorsXPG CYBERCORE II PLATINUM Series utilizes all-Japanese high quality 105℃ capacitors to ensure power delivery is stable, consistent and efficient.
Характеристики
| X 150 x 86mm | 160 |
| Cybenetics Rating | Да |
| PLATINUM | Да |
| Plus Rating | 80 |
| PLATINUM | Да |
| ATX Version | Да |
| ATX | 3.0 |
| Protections | Да |
| OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP | Да |
| Сертификация | Да |
| PFC | Да |
| 0.99 | Да |
| Input Voltage | Да |
| 100-240V | Да |
| Input Current | Да |
| 1300W:15A | Да |
| Input Frequency | Да |
| 1300W:50-60Hz | Да |
| DC Output Voltage | Да |
| 5V | +3.3V | +12V | -12V | +5Vsb | Да |
| Total Output | Да |
| 1300W | Да |
| Power Excursion | Да |
| 1300W | 2600W (*up to 200% of the PSU's rated power for 100μs) |
| Работна температура | Да |
| 50°C | Да |
| Fan Size | Да |
| 120mm | Да |
| Fan Bearing | Да |
| Double Ball Bearing | Да |
| Fan Speed | Да |
| RPM | 2,150 |
| MTBF | Да |
| Hours @ 25°C | 125,000 |

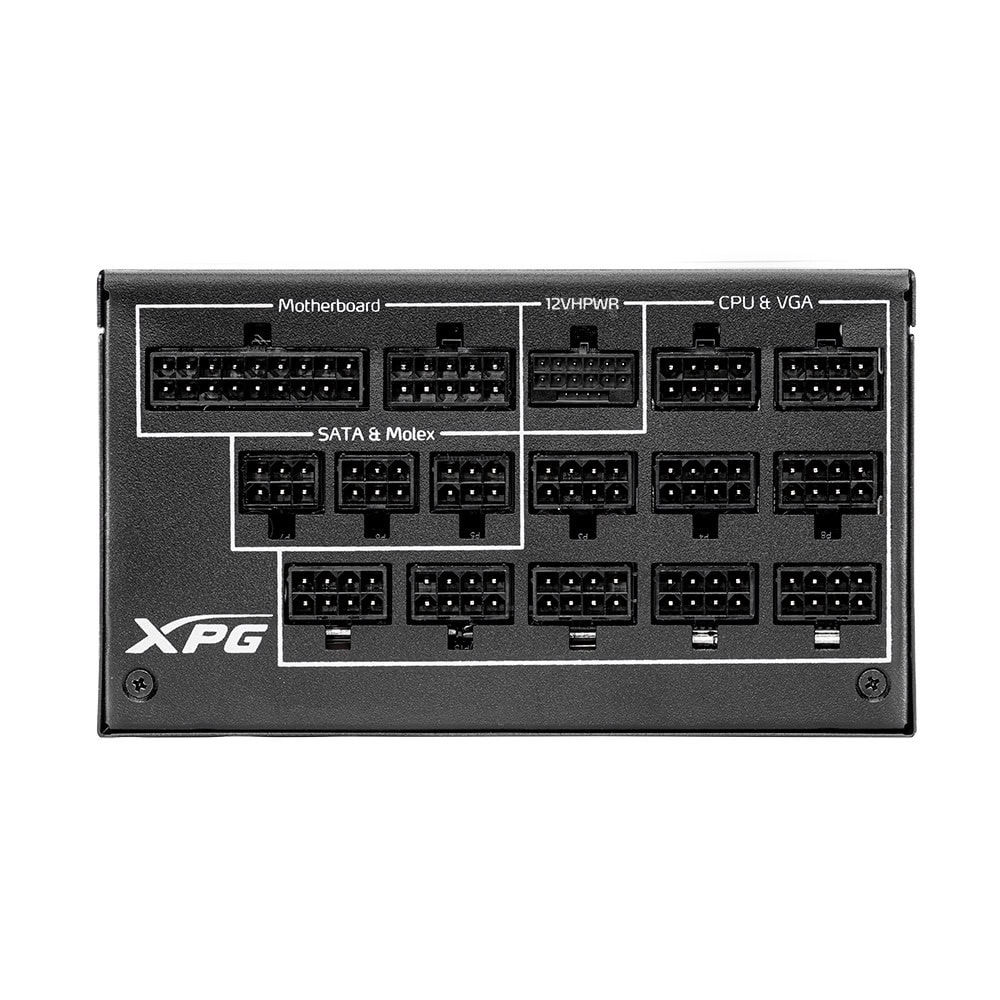

| ATX | 24 Pin Connector |
| 1 | Да |
| EPS | 8 Pin Connector |
| 2 | Да |
| PCI-E | 6+2 Pin Connector |
| 10 | Да |
| Molex | 4 Pin Connector |
| 8 | Да |
| 12VHPWR (12 + 4) Connector (600W) | Да |
| 1 | Да |
| SATA Connector | Да |
| 12 | Да |
| Floppy | 4 Pin Connector |
| 2 | Да |
