WiFi реле Shelly EM Gen3
Shelly EM Gen3
More Memory, More PowerThe Gen3 series ensures the quality and reliability of our devices by using our own powerful Shelly chip. Boasting 8MB of memory, this dramatically improves device performance and efficiency.
On the Road to MatterEach Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations. *Dependent on the extent of Matter's functionalities support.
Unified Control with Virtual ComponentsThe Gen3 Series introduces “virtual components, transforming how you manage and control 3rd party devices. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.
Monitor and save energy from anywhere

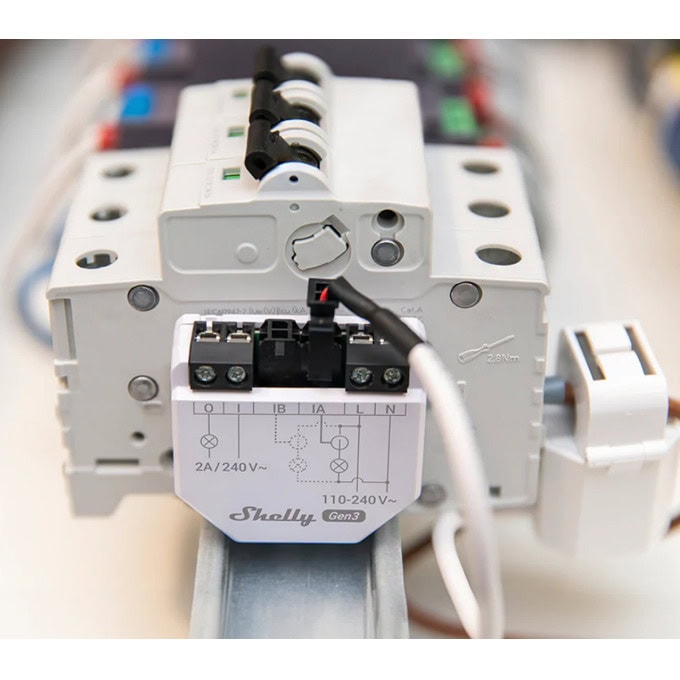

Unlock the power of smart energy use with detailed insights into your appliances' power consumption patterns. Integrate Shelly EM Gen3 into standard electrical wall boxes, behind power sockets, light switches, or other places with limited space. By identifying how and when your connected appliances use energy, you can optimize usage for maximum efficiency and lower your electricity bills.
Wi-Fi and Bluetooth connectivity
Connect Shelly ЕМ Gen3 to your Wi-Fi network. No HUB required! Quick inclusion via Bluetooth or use it as a Bluetooth gateway.

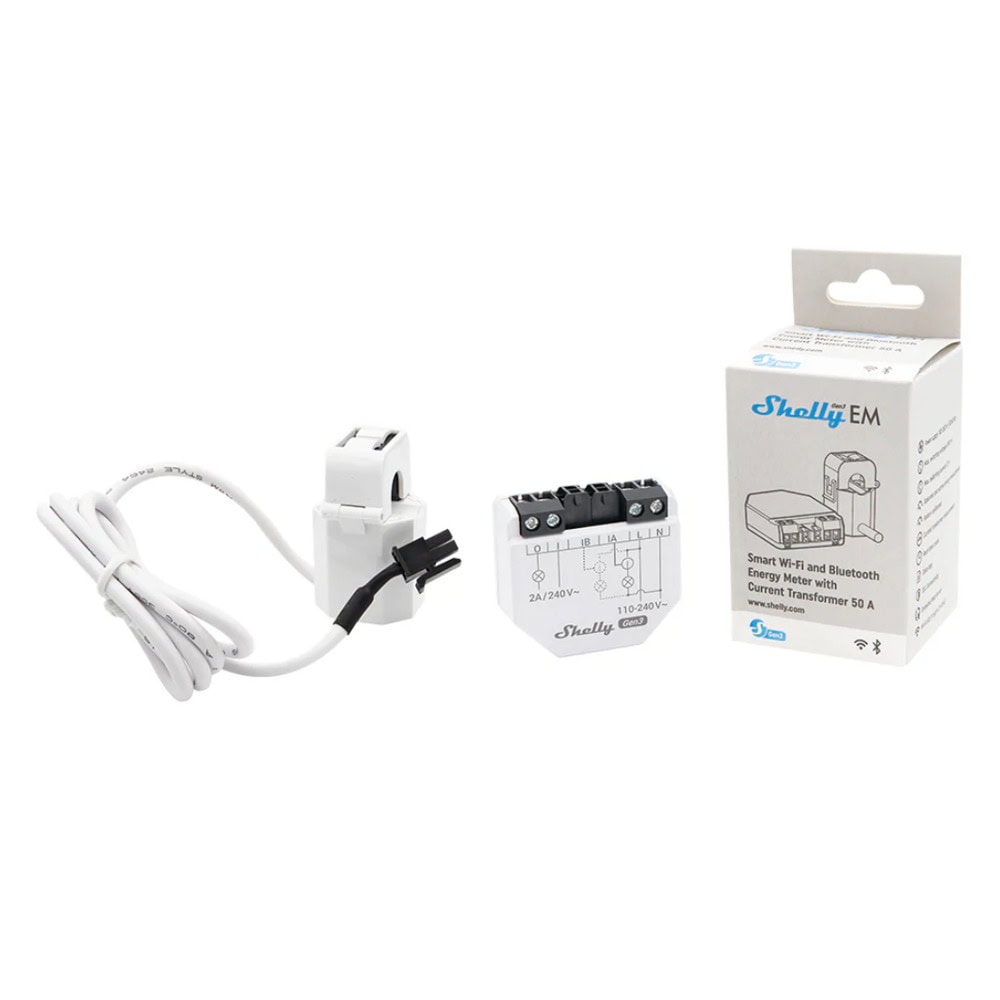

Current transformers connection
Connect up to 2 current transformers. No need for extra wiring!
Dry contact switch
For contactor control of heavier loads
Local data storage
Data logs stored on device for up to 10 days in 1-minute intervals. When connected to the cloud, data logs go back to 365 days.
Smart Scenes
Set custom scenes by combining Shelly EM Gen3 with your other Shelly devices to control energy use.
Scripting
Fully supports scripting, allowing you local control and custom functionalities.
Характеристики
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Влажност | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Монтаж | Wall console, Electrical cabinet |
| Shell material | Пластмаса |
| Electrical | Да |
| Захранване | 110 - 240 V~ 50/60 Hz |
| Консумация на енергия | Output circuits ratings Max. switching voltage:240 V~ Max. switching current:2 A/240 V~ Sensors, meters Voltmeter (AC):110-240 V~ 50/60 Hz Voltmeter accuracy:±2% Ammeter (AC):0 - 80A Ammeter accuracy:±2 % (2 - 50 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A) Compatible current transformers:CT 50ACT 80A Power and energy meters:Active and apparent powerActive and apparent energyPower factorFundamental active and fundamental reactive energy Channel-to-channel calibration minimum load:500 W No load threshold:30 VA per channel Measurement data storage:At least 10 days of 1 min data resolution Data export:CSV for PQ recorded valuesJSON format export through RPC Internal-temperature sensor:Yes Radio Wi-Fi Protocol:802.11 b/g/n RF band:2412 - 2472 МHz |
| Max. RF power | Bluetooth Protocol:4.2 RF band:2402 - 2480 MHz |
| Max. RF power | Microcontroller unit CPU:ESP-Shelly-C38F Flash:8 MB Firmware capabilities Schedules:Yes Webhooks (URL actions):20 with 5 URLs per hook Scripting:Yes MQTT:Yes Encryption:Yes (Transport level) Authentication:Yes (Application and transport level) |
