WiFi реле Shelly DALI Dimmer Gen3

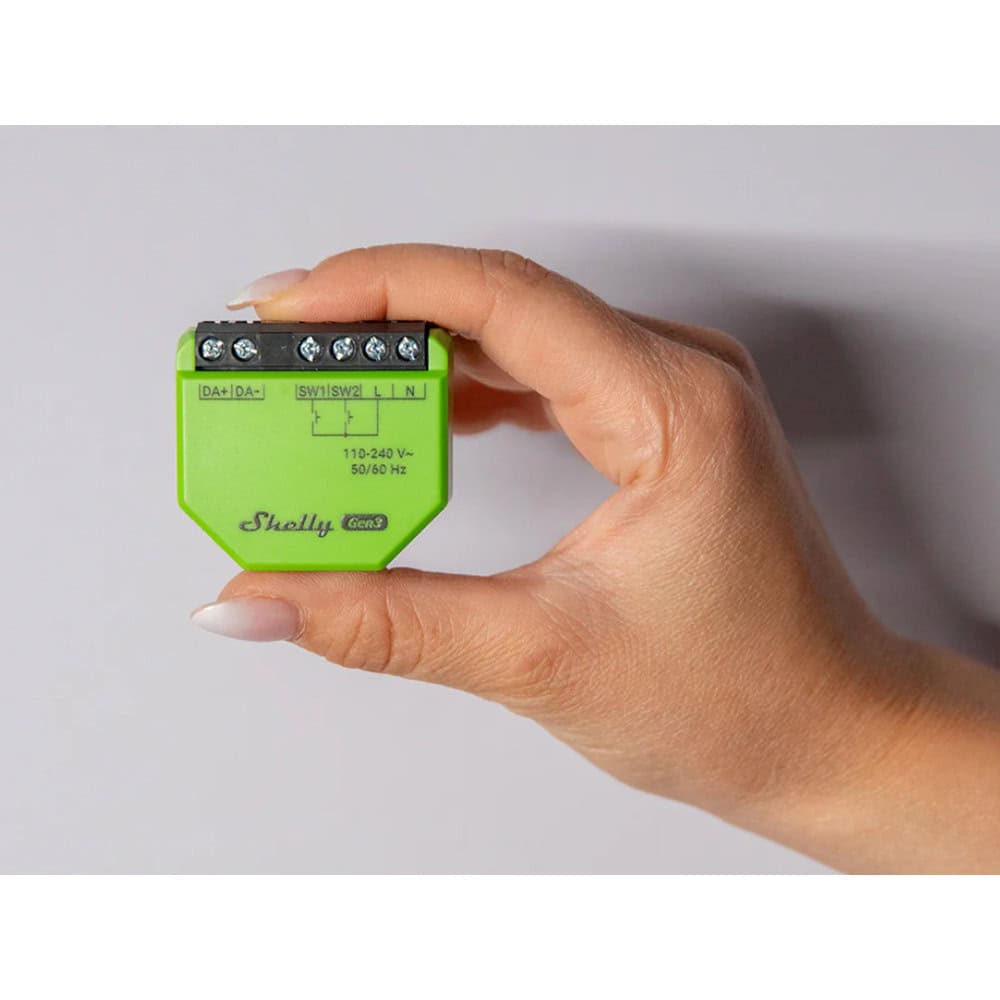

Shelly DALI Dimmer Gen3
Smart Dimmer for DALI lights
Control high-end DALI luminaires with Shelly DALI Dimmer Gen3 and integrate them into your Shelly smart ecosystem. Experience a predictable and repeatable brightness control of DALI lights with additional functions for easy maintenance. Excellent integration with external Shelly sensors or input controls enhance and automate the usability of your home or office space.
Control of DALI Part 207 gear
Shelly DALI Dimmer Gen3 is designed to provide brightness control of DALI lights. Whether for your home or your office space, Shelly smart solutions allow for cost effective and highly flexible deployments of sensors and actuators.
Integrated bus power supply
The integrated bus power supply allows control of up to 5 downstream lights without the use of additional DALI power supply module. When additional sensor or wall switches need to be deployed the Shelly product line offers wired and wireless sensor for easy integration or retrofit solutions.
KNX Support
Shelly DALI Dimmer Gen3 integrates into KNX systems, offering a powerful and cost-effective solution for expanding your existing setup. By enabling wireless extension, it eliminates the need for wiring, reducing both installation time and costs. Whether you're upgrading a current system or adding new capabilities, it provides a flexible and efficient way to enhance your KNX network.
Remote control
Enjoy the flexibility of remote control and monitoring of your smart home, office space or store. Your cloud connected Shelly devices can be integrated into the Shelly Smart Home application. Control individual rooms, create smart scenes, share your devices with your family members.
Характеристики
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Влажност | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Монтаж | In-wall, suspended ceilings |
| Shell material | Plastic |
| Захранване | 110 - 240 VAC ±10% 50/60Hz |
| Консумация на енергия | Output circuits ratings Bus power supplyGuaranteed 10mA (up to 5 DALI control gear units), Short circuit current Sensors, meters Internal-temperature sensor:Yes Radio Wi-Fi Protocol:802.11 b/g/n RF band:2401 - 2495 МHz |
| Max. RF power | Bluetooth Protocol:4.2 RF band:2400 - 2483.5 MHz |
| Max. RF power | Microcontroller unit CPU:ESP32-C3 Shelly Flash:8 MB Firmware capabilities Schedules:20 Webhooks (URL actions):20 with 5 URLs per hook Scripting:Yes MQTT:Yes Encryption:Yes, TLS 1.2 |
