WiFi реле Shelly 1PM Mini Gen4

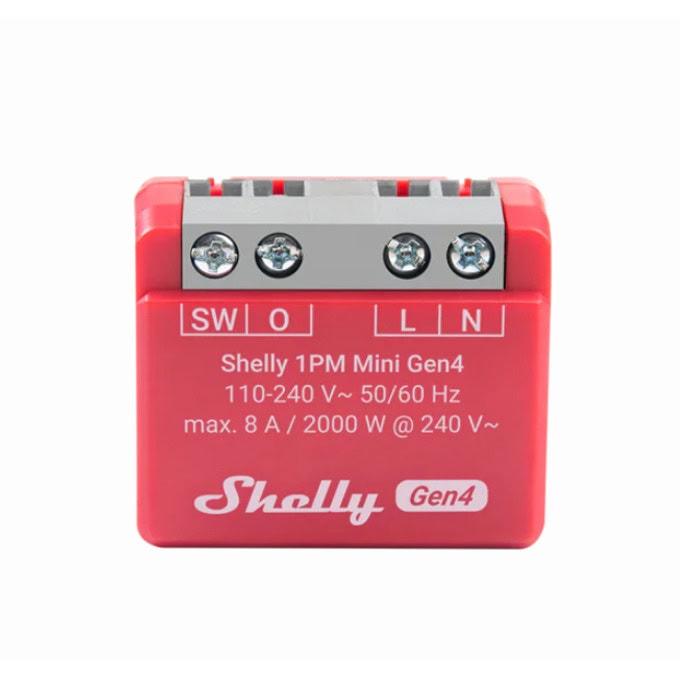

Shelly 1PM Mini Gen4
Track your power consumption and save money
Tailored for measuring the power consumption of appliances up to 8 A, Shelly 1PM Mini Gen4 is perfectly suited for monitoring smaller devices, including personal electronics, fans, lighting fixtures, and kitchen gadgets. By using it to monitor power consumption, you can manage energy usage and make informed adjustments to reduce electricity costs. Shelly 1PM Mini Gen4 offers free data storage, providing access to historical data for analysis and comparison, which can also help you identify devices consuming excessive power or working unnecessarily.
Make any small electrical appliance smart

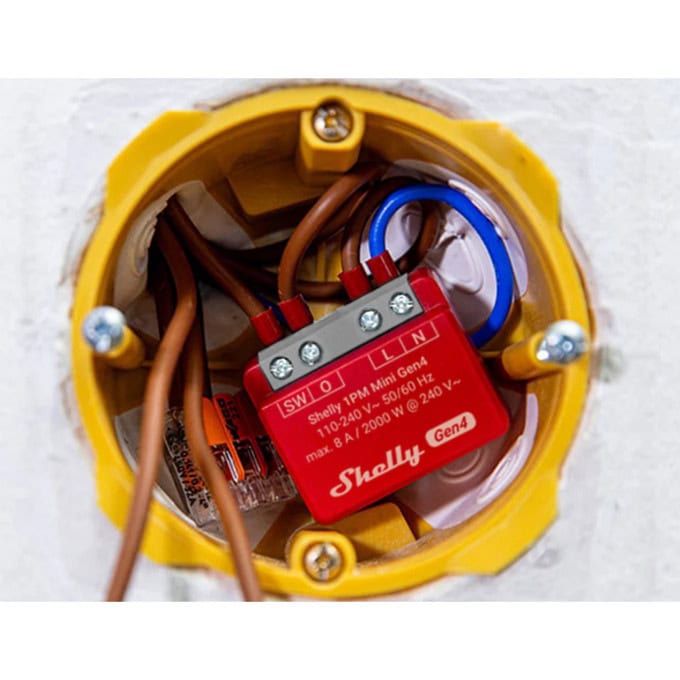

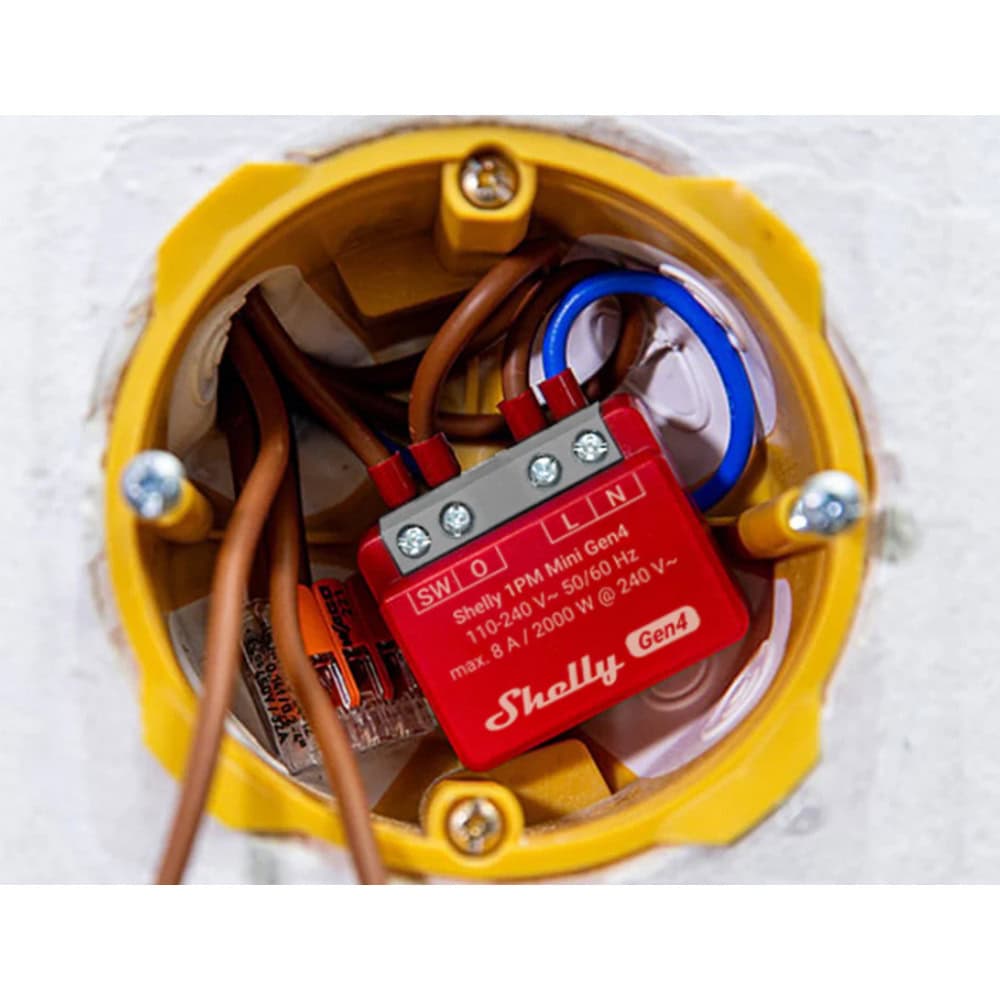

Transform old electrical appliances, like small heaters or kitchen gadgets into smart devices with Shelly 1PM Mini Gen4. It provides precise power monitoring, allowing you to track energy consumption in real-time, and gives you remote control over appliances, no matter where you are. You can wire it behind your socket or even inside the appliance's casting. Create custom schedules for your appliances based on your daily routine to save energy and set smart scenes to be prepared for any unexpected occurrences in your home!
Small size, big impact!

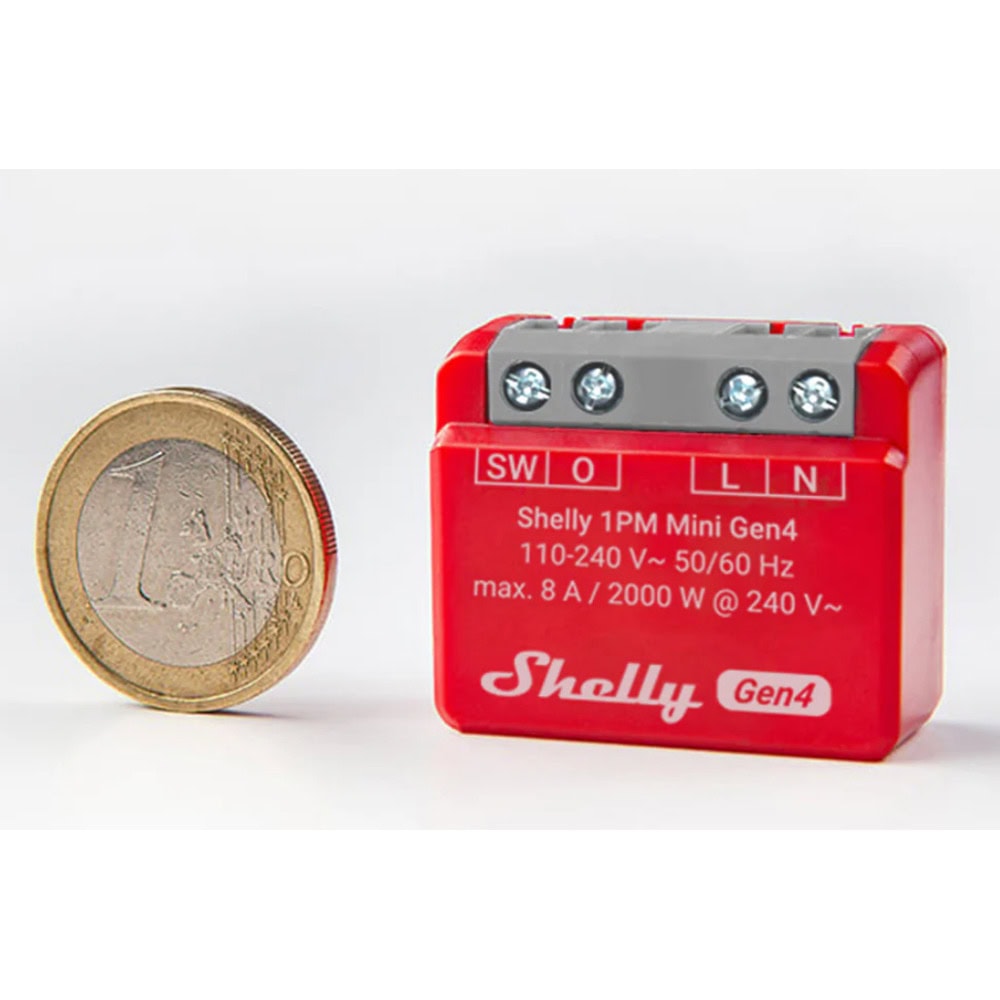

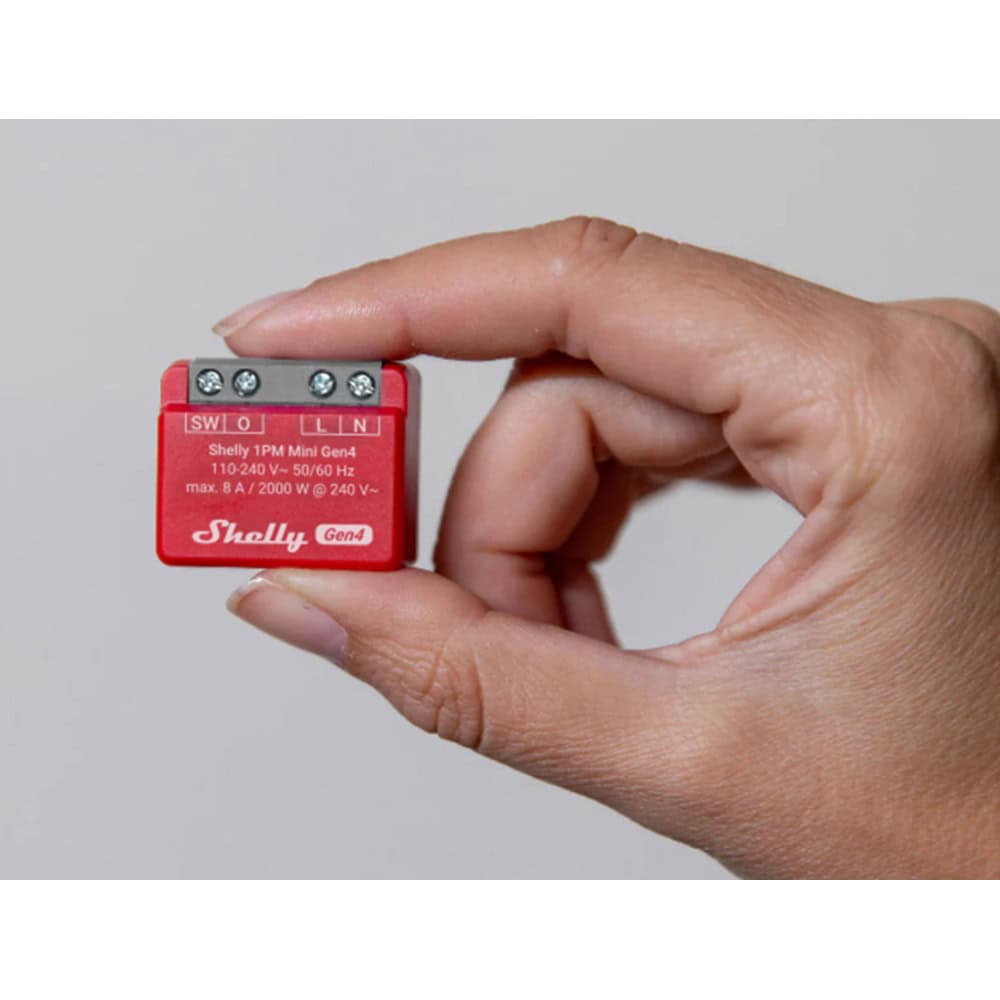

Designed with convenience in mind, these mini devices have all the capabilities of Shelly's standard smart devices fit into a compact form factor.
With an improved processor and 8 MB of memory, the devices deliver enhanced efficiency, responsiveness, and seamless operation.
Each Mini Gen4 device is Matter-certified and supports multi-protocol connectivity, allowing greater flexibility within your smart home setup.
Multiprotocol connectivity
Highly compatible! Choose the best protocol for your smart home—Zigbee, Wi-Fi, or Bluetooth
Matter certified
Integrates into any Matter ecosystem
Power Monitoring
The device provides precise monitoring of power consumption.
Smart schedules
Set custom schedules based on your daily agenda
Smart scenes
Set custom scenes by combining Shelly 1PM Mini Gen4 with your other devices
Scripting
Shelly 1PM Mini Gen4 fully supports mjS scripting, allowing you to create custom features and functionalities
Характеристики
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Монтаж | Wall box |
| Shell material | Пластмаса |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Влажност | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | Да |
| Захранване | 110 - 240 V~ |
| Relay | Не contact, 1-pole, µ contact |
| External protection | Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3 |
| Output circuits ratings | Да |
| Max. switching voltage | 240 V~ |
| Max. switching current | 8A/240 V~ |
| Power measurement | Да |
| Voltage protection / Cutoff | Да |
| Current protection / Cutoff | Да |
| Max power protection / Cutoff | Да |
| Sensors, meters | Да |
| Internal-temperature sensor | Да |
| Radio | Да |
| Wi-Fi | Да |
| Protocol | 802.11 b/g/n/ax |
| RF band | 2412 - 2472 МHz |
| Max. RF power | Bluetooth Protocol:5.0 RF band:2402 - 2480 MHz |
| Max. RF power | Zigbee Protocol:802.15.4 RF bands:2400 to 2483.5 MHz |
| Max. RF power | Microcontroller unit CPU:ESP-Shelly-C68F Flash:8MB Firmware capabilities Schedules:20 Webhooks (URL actions):20 with 5 URLs per hook Scripting:Yes MQTT:Yes |
