Shelly
Wi-Fi реле Shelly Dimmer Gen4
Артикул №: 1000060251
Категория:
Смарт автоматизация
48,99 €
✓ Налично във външен склад
Характеристики
| Size (HxWxD) | 38.5x43.5x17mm / 1.52x1.71x0.67in |
| Тегло | 24.3 g / 0.86 oz |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |

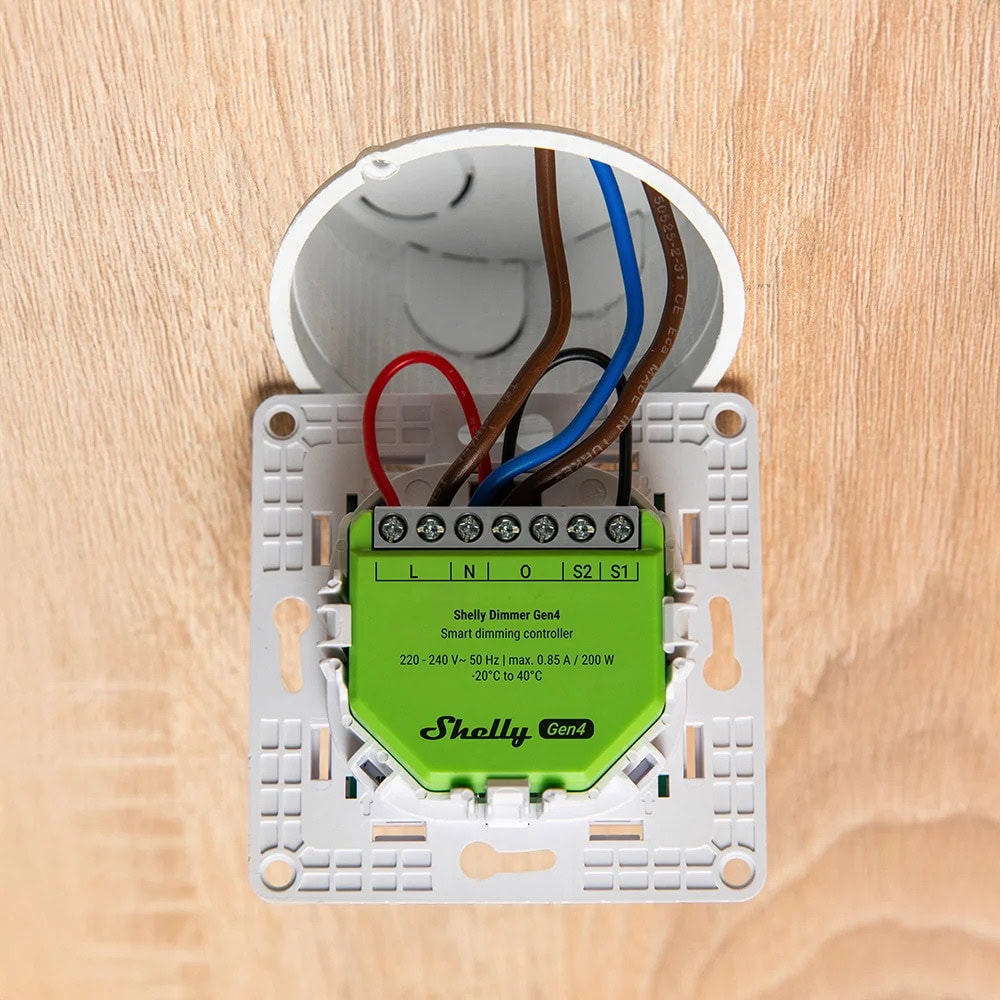

| Монтаж | In-wall |
| Shell material | Plastic |
| Shell color | Lime |
| Print color | Черен |
| Connectors color | Gray Environmental |
| Ambient working temperature | -20°C to 40°C / -5°F to 105°F |
| Влажност | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft Electrical |
| Захранване | 220-240 V~ 50 Hz |
| Консумация на енергия | Output circuits ratings |
| Max. output power | 200 W |
| Max. current | 0.85 A Sensors, meters |
| Voltmeter (AC) | 180 V - 280 V |
| Voltmeter accuracy | ± 5 % (when used with neutral) |
| Ammeter (AC) | 0 A - 3 A |
| Ammeter accuracy | ± 5 % (when used with neutral) |
| Internal-temperature sensor | Yes Wi-Fi |
| Protocol | 802.11 b/g/n/ax |
| RF band | 2401 - 2483 МHz |
| Max. RF power | Bluetooth |
| Protocol | 5.0 |
| RF band | 2400 - 2483.5 MHz |
| Max. RF power | Zigbee |
| Protocol | 802.15.4 |
| Zigbee repeater | Да |
| RF bands | 2400 to 2483.5 MHz |
| Max. RF power | Microcontroller unit |
| CPU | ESP-Shelly-C68F STM32 G051 |
| Clock frequency | ESP-Shelly-C68F: 40 Mhz |
| Flash | 8 MB Firmware capabilities |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Да |
| MQTT | Да |
