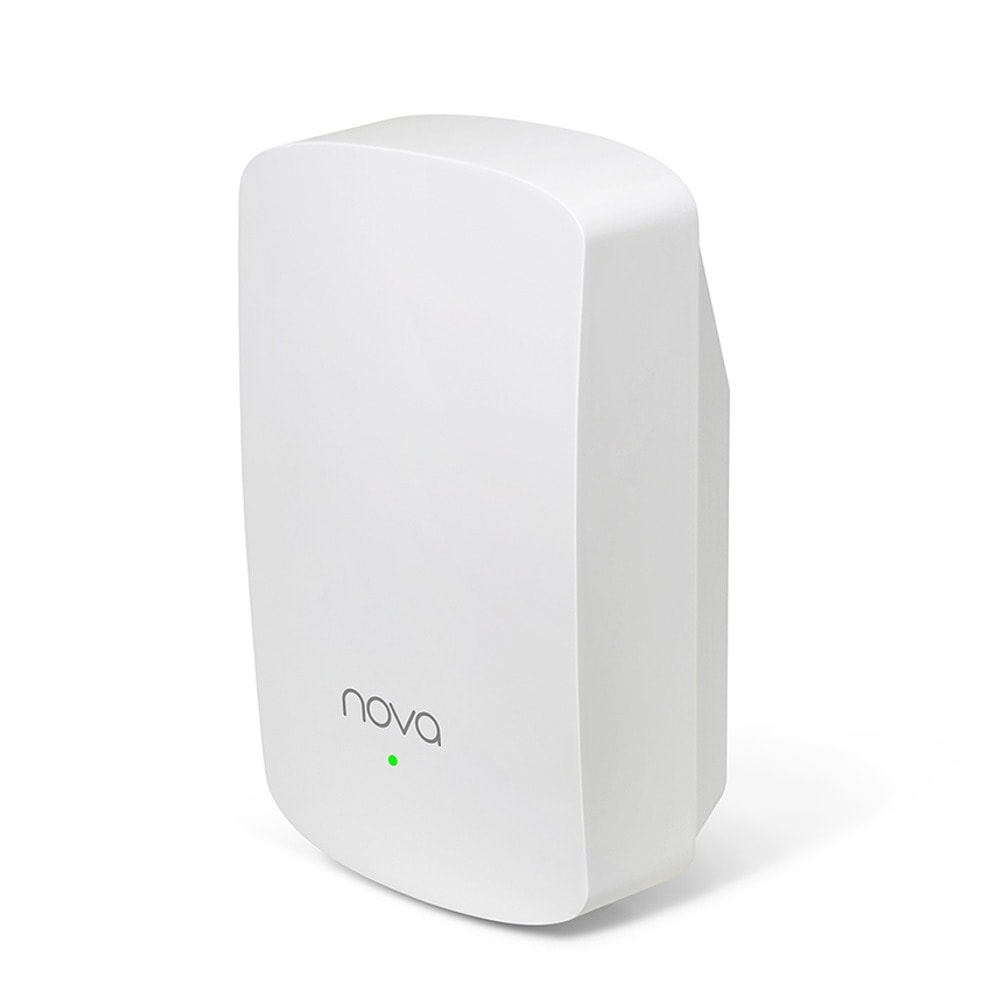

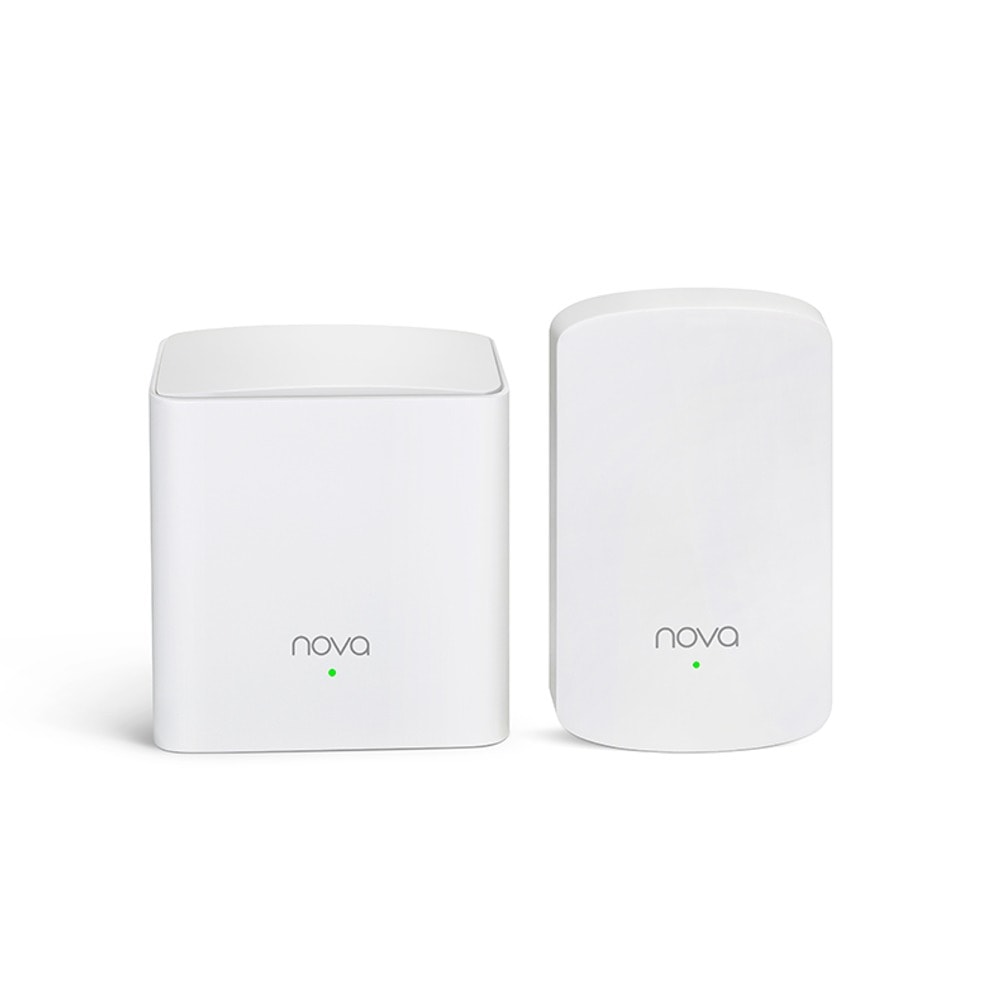

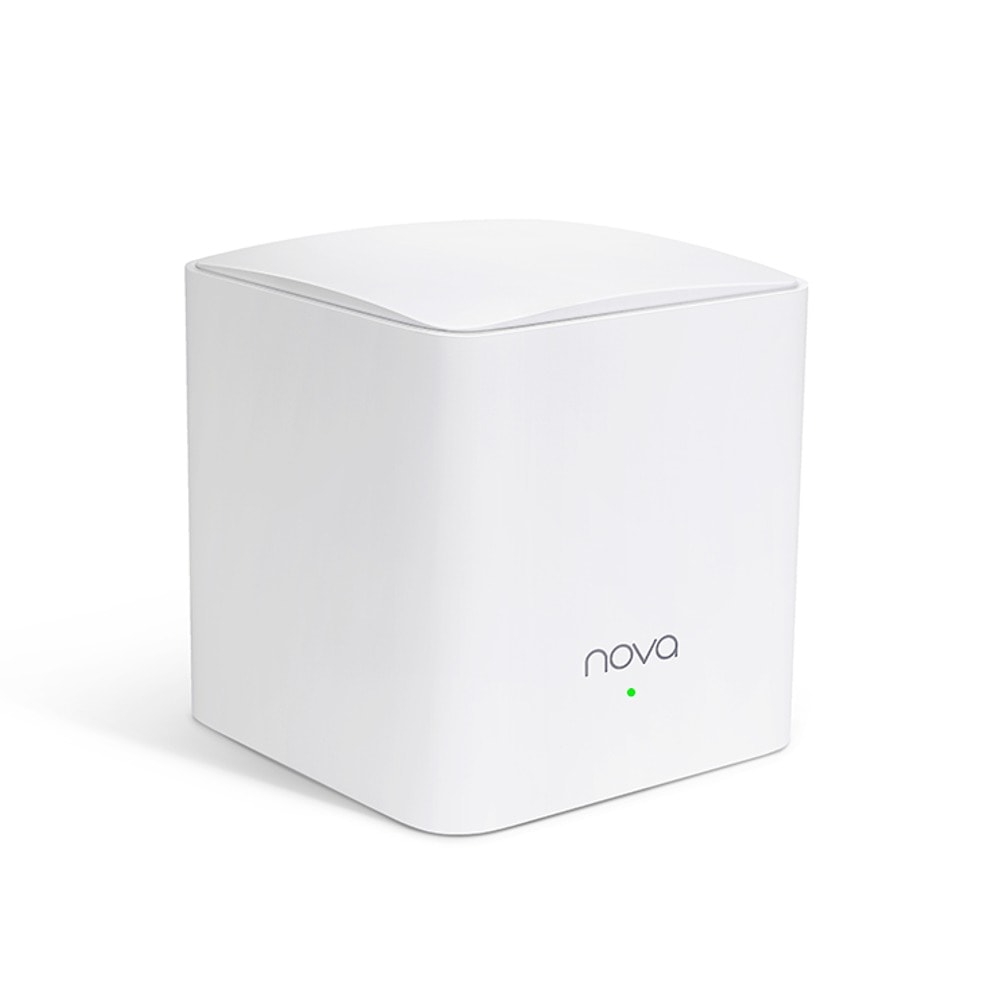

Wi-Fi Mesh система Tenda MW5 (3 Pack)

Tenda MW5 (3 Pack)

Standard&Protocol
IEEE802.11a/b/g/n/ac
IEEE 802.3, IEEE 802.3u, IEEE 802.4ab

Ethernet Interface
Primary Node: 2 x 10/100/1000Mbps RJ45 ports
Secondary Node: 2 x 10/100Mbps RJ45 ports

Antenna
2 x Internal antenna

Button
1 x Reset Button

Power
Primary Node Input: 100-240V—50/60Hz, 0.6A
Output: 12V1A
Secondary Node Input:100-240V—50/60Hz, 0.3A
Output: 9V 800mA

Dimension
Primary Node: 91 x 91 x 93mm (3.58 x 3.58 x 3.66 in.)
Secondary Node: 114 x 68 x45mm (4.48 x 2.67 x 1.77 in.)

LED Indicator
1 x Tri-color LED
Indicator(Green,Yellow,Red)

Wireless
Wireless Standard
IEEE802.11a/b/g/n/ac (WiFi 5 wave 2)

Wireless roaming
Comply with IEEE802.11k/v/r

Mesh network Standard
IEEE802.11s

Rate
2.4GHz: 300Mbps
5GHz: 867Mbps
Frequency
2.4~2.4835GHz
5.15~5.25GHz
5.725~5.85GHz

Transmission Power
CE:
<20dBm(2.4G)
<23dBm(5G)

Basic Features
SSID Broadcast
Beam Forming
MU-MIMO
AP Steering
Band Steering

Wireless Security
WPA-PSK/WPA2-PSK(default)

Software
Operating Mode
Router Mode,Bridge Mode

Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

DHCP Server
DHCP Server, DHCP Client List

Virtual Server
Port Forwarding, UPnP

Parental Control
Client Filter

Firewall
Forbid TCP/UDP flood attack

VPN
PPTP/L2TP/IPsec pass through

DNS
Support manually setting DNS server
Special Features
Smart QoS (Gaming, Video & Audio, Download)

Others
Auto-sensing internet connection
Support App management and Remote management
Guest Network
Firmware upgrade online

Operation Temperature
0 ~ 40 ℃

Storage Temperature
-40 ~ 70 ℃

Operating Humidity
10%~90% RH non-condensing

Storage Humidity
5%~90% RH non-condensing
APP installation
Available in iOS 8.0 or later, Android 4.0 or later

Certification
CE, FCC, RoHS,EAC,IC

Package Contents
Mesh5 x 1, Mesh5s x 2, Power adapter x 1, QIG x 1, RJ45 Gigabit Ethernet cable x 1
