Dahua
Видеодомофон Dahua VTO2000A
Артикул №: 1000013708
Категория:
Видеодомофони
143,99 €
✓ Налично във външен склад

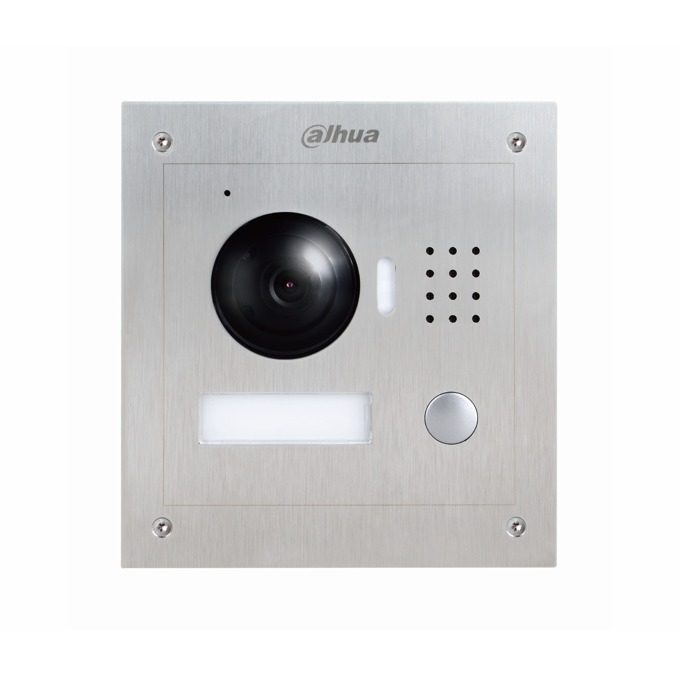

Dahua VTO2000A
IP Villa Outdoor Station
HD CMOS camera
Stainless steel panel, IP54,IK07
Night vision &Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted & Flush mounted
Technical Specification
Model
VTO2000A
System
Main Processor
Embedded Micro Processor
Operation System
Embedded LINUX OS
Video
Video Compression
H.264
Image Sensor
1/3” 1.3MP CMOS
Lens
2.8mm
Angle of View
D:120° H:90°
Day/Night
Color Image
Audio
Audio Compression
G.711
Audio Input
Omnidirectional Mic
Audio Output
Built-in Speaker
Bidirectional Talk
Support Dual-way Bidirectional talk
Operation Mode
Keypad
Single Mechanical Button
Interface
Door Control
2(1 relay out for main lock, 1 extended by access control module)
Alarm In
2(1ch unlock button, 1ch feedback)
RS485
1
Network
Ethernet
10M/100Mbps Self-adaptive
Network Protocol
TCP/IP
Ethernet
10M/100Mbps Self-adaptive
Network Protocol
TCP/IP
General
Ingress Protection
IP54, IK07
Tamper Switch
1
Installation
Surface & Flush
Material
Stainless Steel
Power
DC 12V
Power Consumption
Standby ≤1W, Work ≤10W
Working Temperature
﹣40°C~+60°C
Relative Humidity
10%~90%RH
Dimensions
IP Villa Outdoor Station
HD CMOS camera
Stainless steel panel, IP54,IK07
Night vision &Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted & Flush mounted
Technical Specification
Model
VTO2000A
System
Main Processor
Embedded Micro Processor
Operation System
Embedded LINUX OS
Video
Video Compression
H.264
Image Sensor
1/3” 1.3MP CMOS
Lens
2.8mm
Angle of View
D:120° H:90°
Day/Night
Color Image
Audio
Audio Compression
G.711
Audio Input
Omnidirectional Mic
Audio Output
Built-in Speaker
Bidirectional Talk
Support Dual-way Bidirectional talk
Operation Mode
Keypad
Single Mechanical Button
Interface
Door Control
2(1 relay out for main lock, 1 extended by access control module)
Alarm In
2(1ch unlock button, 1ch feedback)
RS485
1
Network
Ethernet
10M/100Mbps Self-adaptive
Network Protocol
TCP/IP
Ethernet
10M/100Mbps Self-adaptive
Network Protocol
TCP/IP
General
Ingress Protection
IP54, IK07
Tamper Switch
1
Installation
Surface & Flush
Material
Stainless Steel
Power
DC 12V
Power Consumption
Standby ≤1W, Work ≤10W
Working Temperature
﹣40°C~+60°C
Relative Humidity
10%~90%RH
Dimensions
Технически характеристики
| Тип | Индивидуални |
