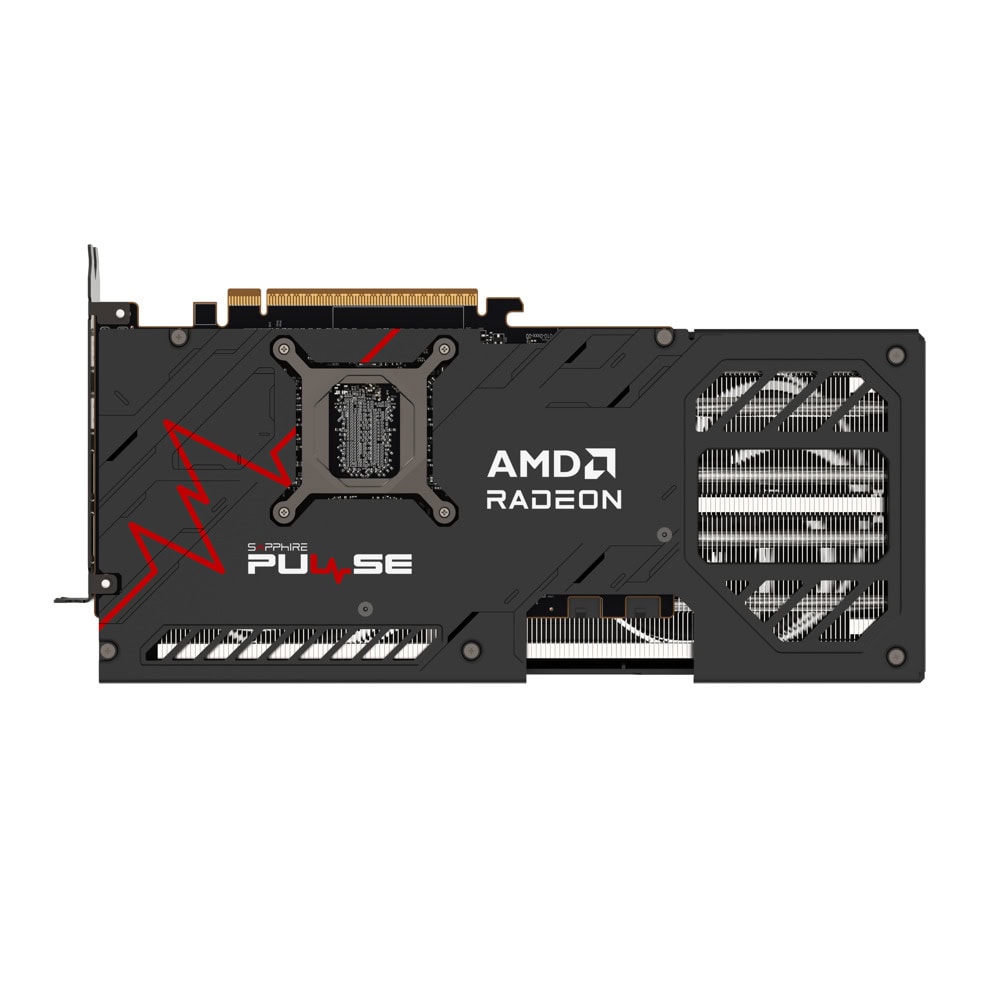

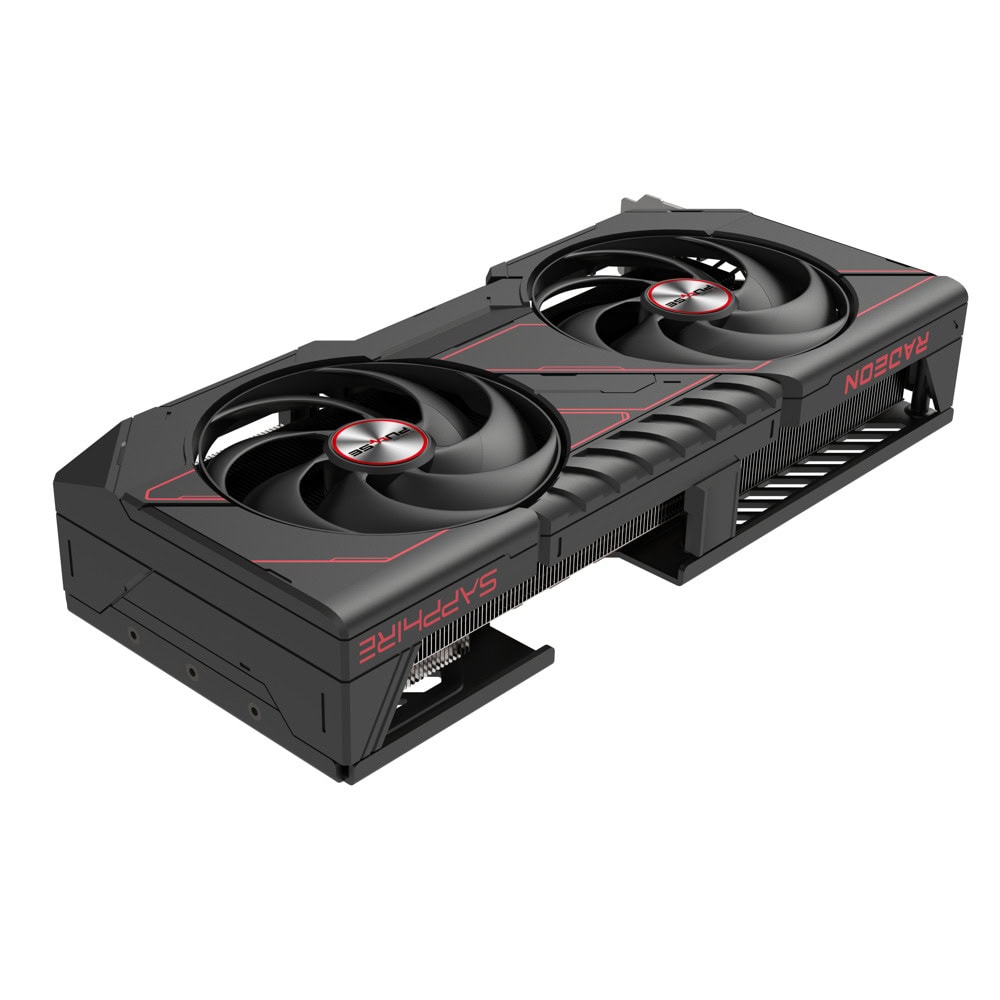

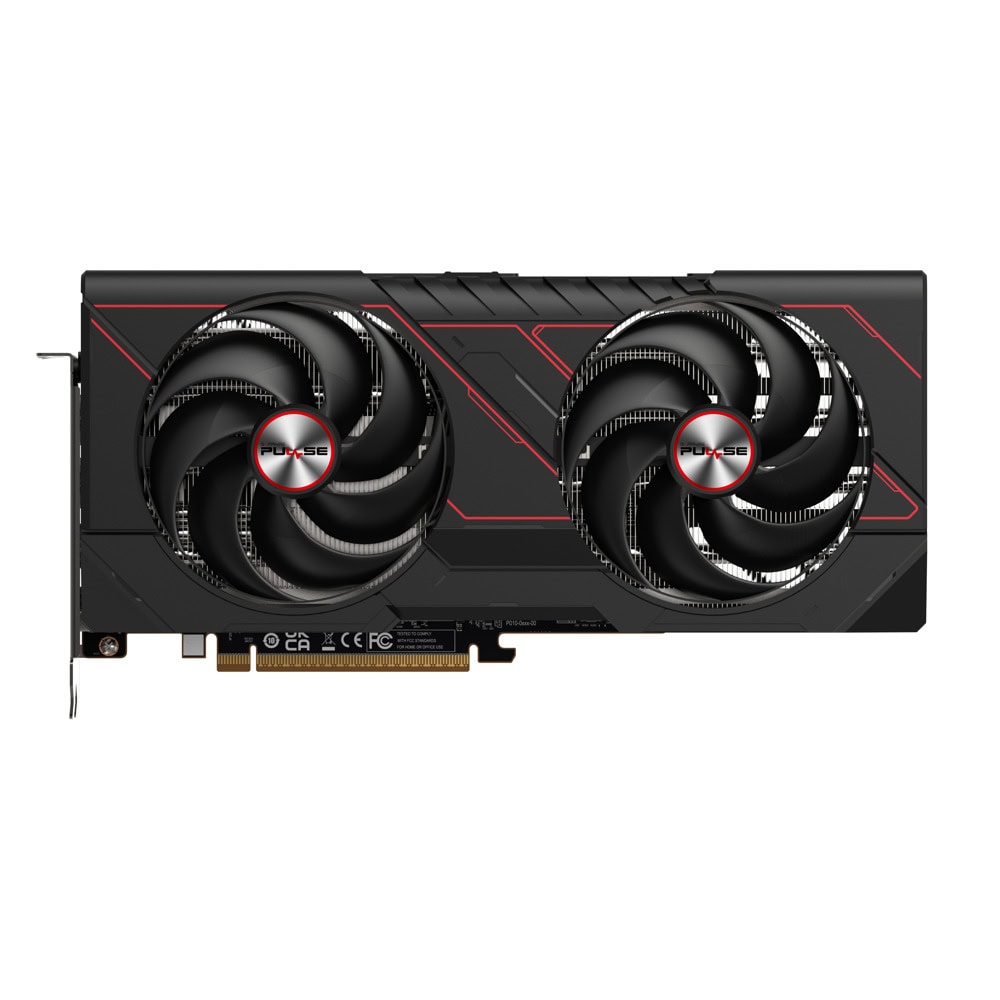

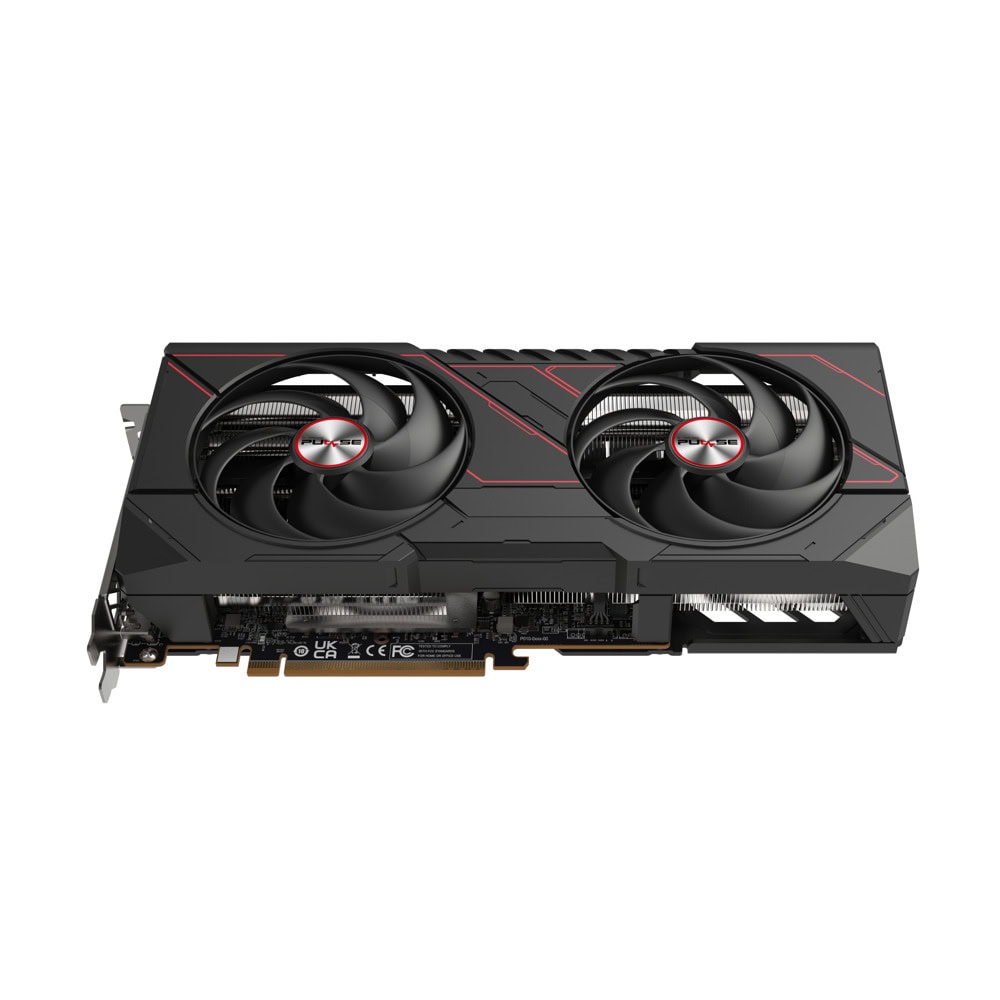

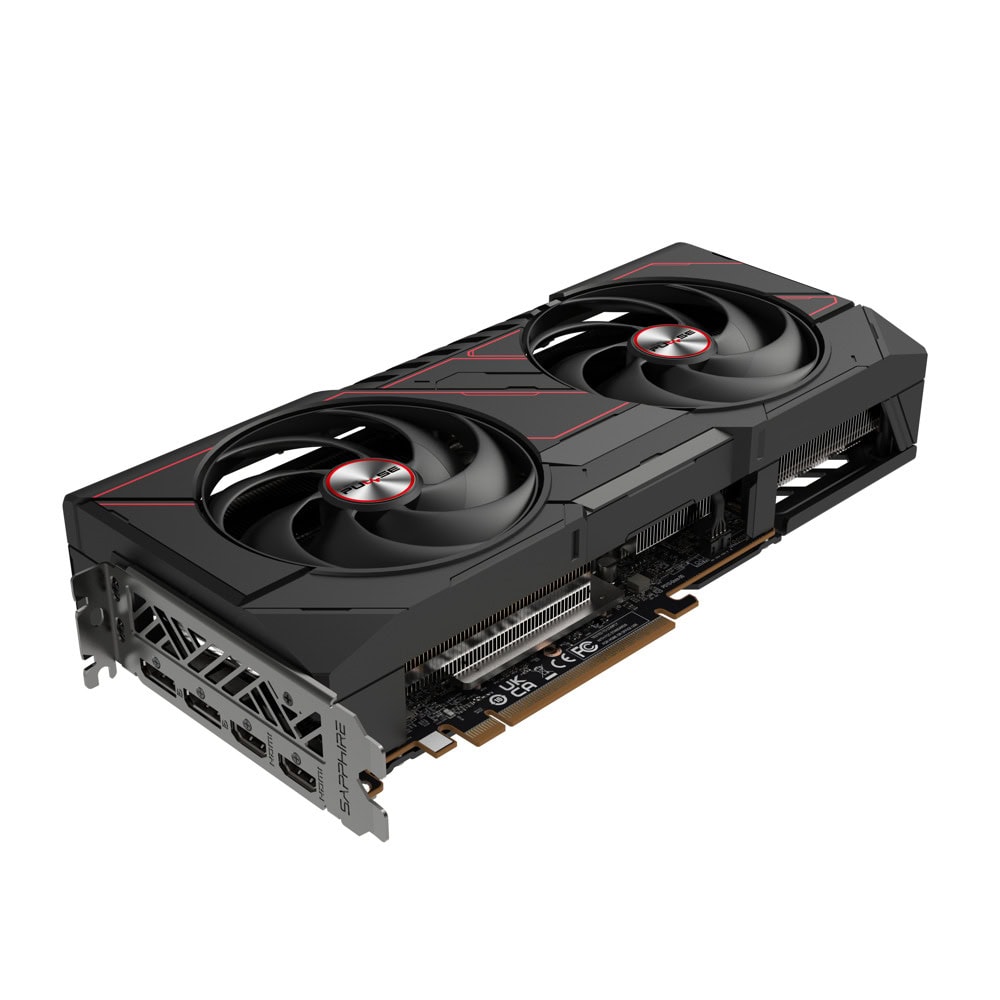

Видео карта AMD Radeon RX 9070
Free Flow
The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.
AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Характеристики
| Boost Clock | Up to 2520 MHz |
| Game Clock | Up to 2070 MHz |
| CUs (3rd Gen RT + 2nd Gen AI Accelerators) | 56 |
| Gbps Effective | 20 |
| Maximum | 4 Displays |
| HDMI | 7680×4320 |
| DisplayPort 2.1a | 7680×4320 |
| PCI-Express 5.0 | x16 |
| AMD RDNA | 4 Architecture |
| Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) | 56 |
| AMD HYPR-RX with AFMF | 2 |
| AMD FidelityFX Super Resolution | 4 with AI Upscaling |
| DisplayPort | 2.1a |
| AMD Fluid Motion Frames | 2 technology |
| AMD Radeon Anti-Lag | 2 technology |
| Microsoft DirectX | 12 Ultimate |
| GB of GDDR6 on 256-bit Memory Bus | 16 |
| Slot, ATX | 2.5 |
| Размер | 280(L)X 120.25(W)X 51.5 (H)mm |
| Minimum | 650 Watt Power Supply |
| X 8-pin Power Connector | 2 |
| PCI Express® based PC is required with one | X16 lane graphics slot available on the motherboard. |
| Minimum | 8GB of system memory. 16GB recommended |
