Вентилатори 180mm

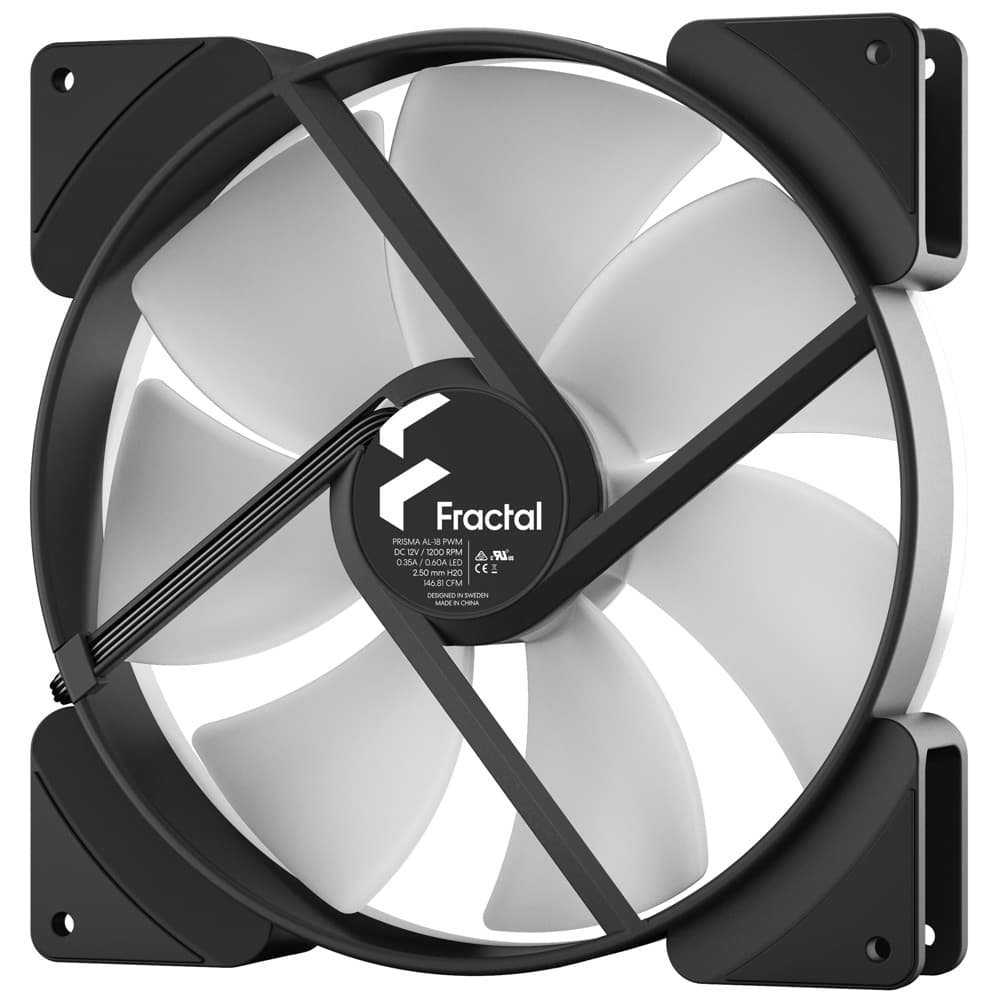

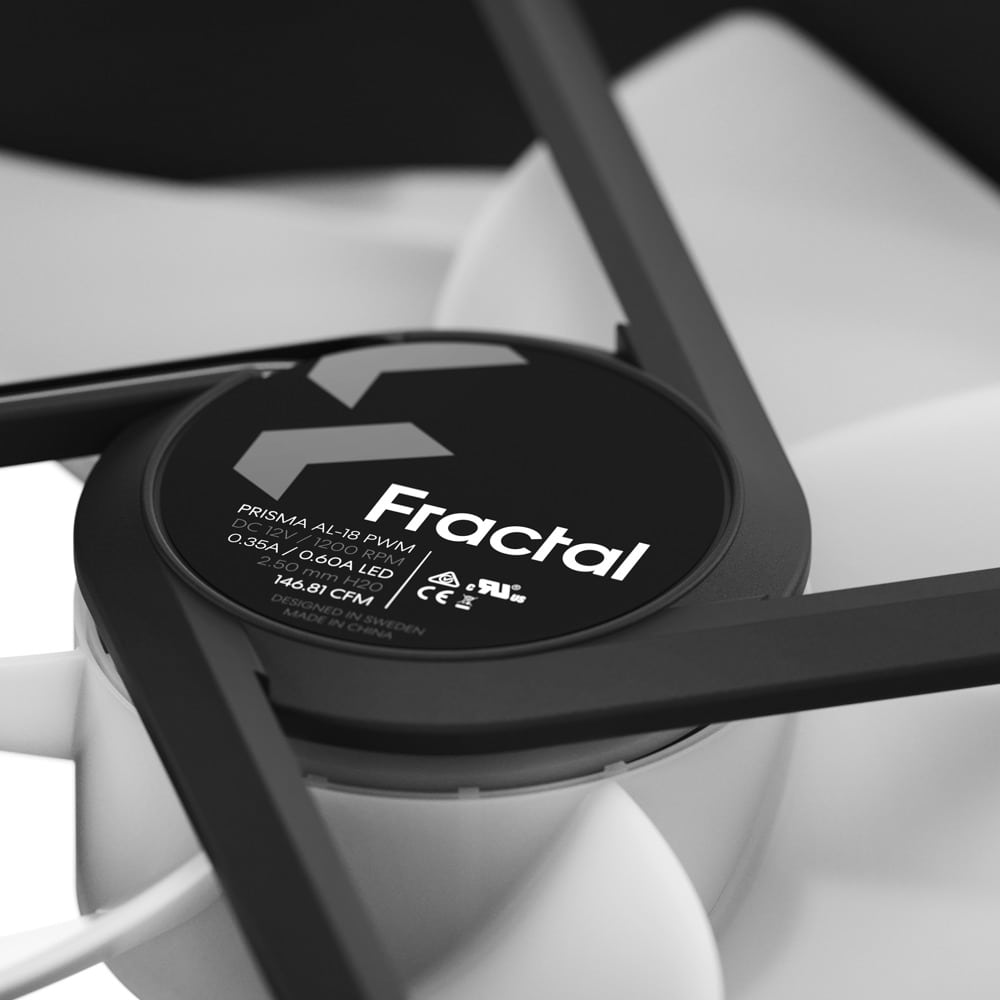

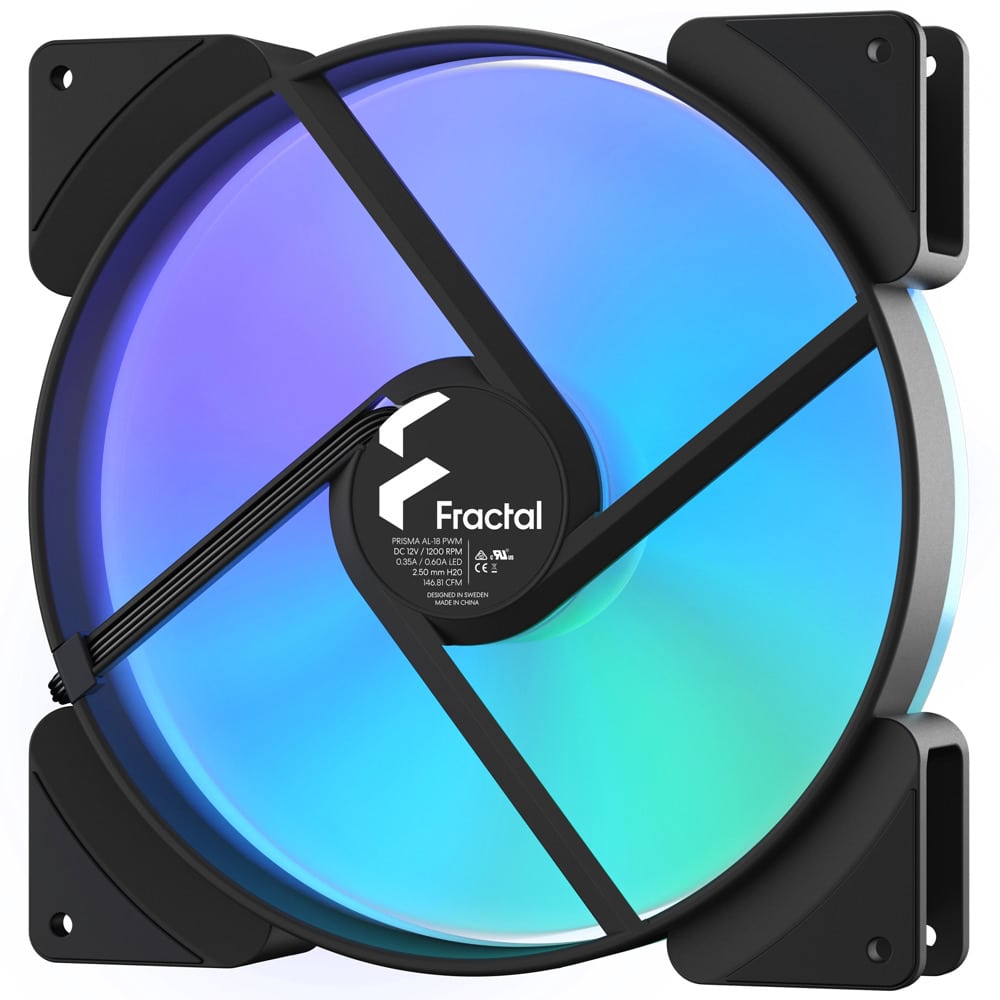

Fractal Design Prisma AL-18 PWM
The Prisma AL-18 is a powerful 180 mm ARGB fan that packs a mean punch in the airflow department. Massive blades, stout 38 mm thickness, and wide 300-1200 RPM range with PWM control allow the AL-18 to yield remarkably high airflow while remaining exceptionally quiet.
Manually Controllable
Adjust R1 RGB controller (sold separately) enables physical control of colors and effects

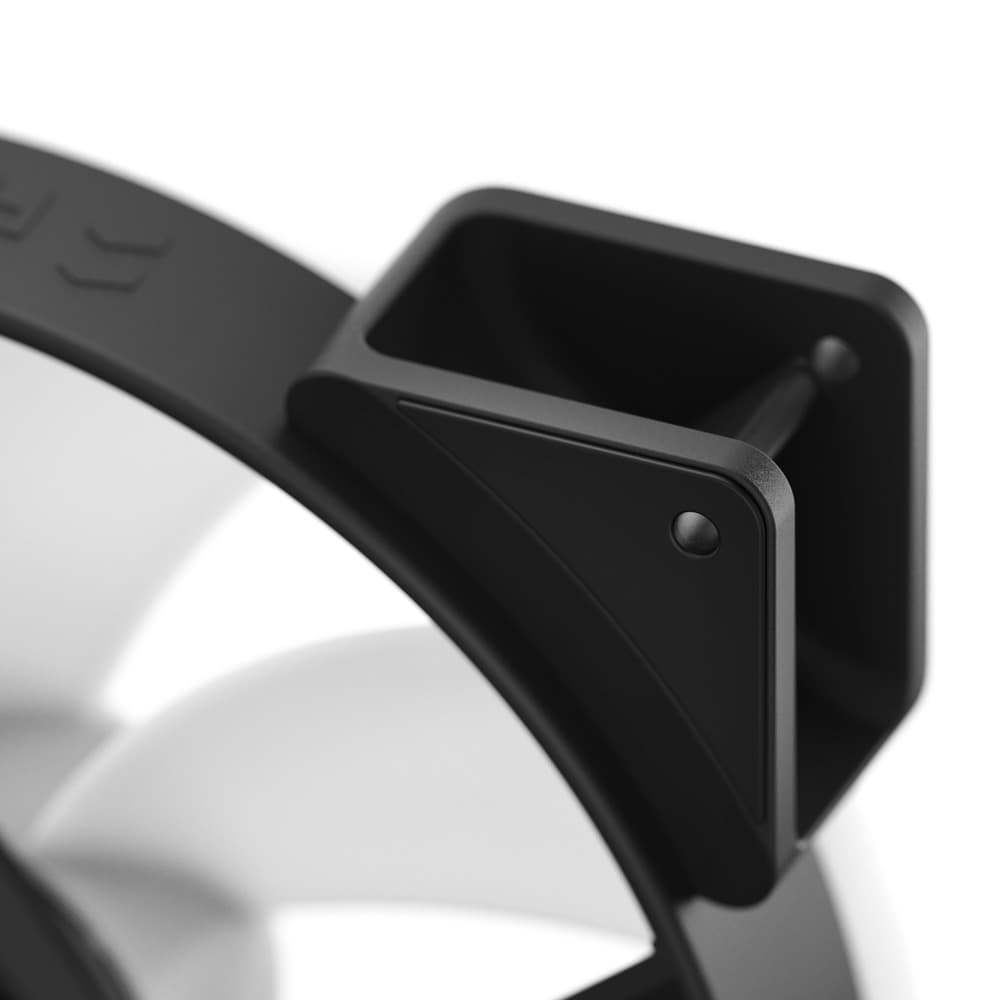

Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
Black sleeved power cables offer an extra touch of style
PWM precision
PWM control with a wide 300-1200 RPM speed range ideal for radiators
Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
Aerodynamic stator struts with embedded wiring reduce noise and turbulence
Характеристики
| Size 180 x 180 | x 38 mm |
| Screw hole pattern | 165 x 165 mm |
| Power connector | 4-pin |
| Number of blades | 7 |
| Rotational speed | 300 – 1200 RPM |
| Ниво на шум | 14.9 – 37.4 dB(A) |
| Max airflow (CFM) | 43.1 – 146.8 CFM |
| Max airflow (m3/h) | 73.27 – 249.56 m³/h |
| Max pressure | 0.44 – 2.50 mmH2O |
| Fan input power | 4.2W at 12VDC |
| Fan max input current | 0.35A |
| Fan input voltage | 12V |
| Minimum startup voltage | 6V |
| LED rated voltage | 5V |
| LED rated current | 0.6A |
| LED Rated input power | 3.0W |
| MTTF | 90,000 hrs |
| Fan weight | 521 g (1.043 kg 2-pack) |
| Дължина на кабела | 1000 mm |
