be quiet!
Вентилатори 140mm
Артикул №: 1000034642
Категория:
Вентилатори
54,99 €
✓ Налично във външен склад

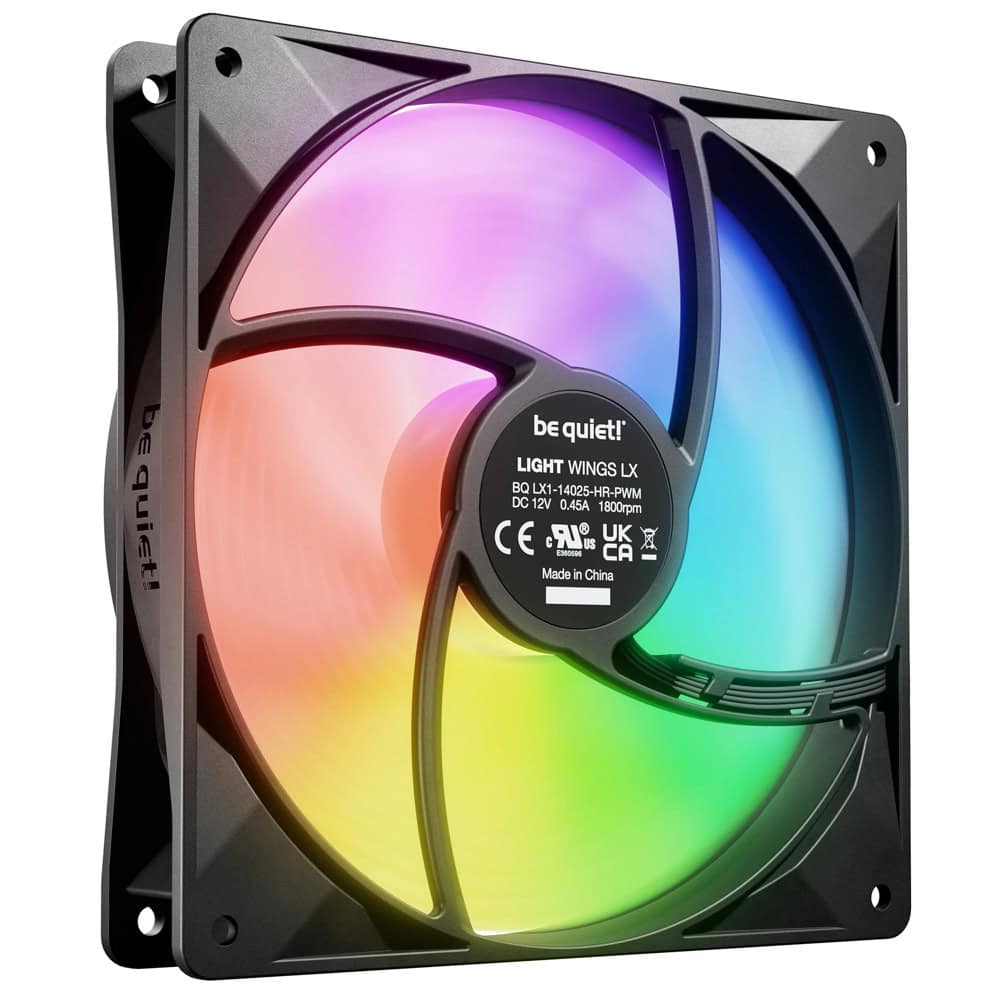

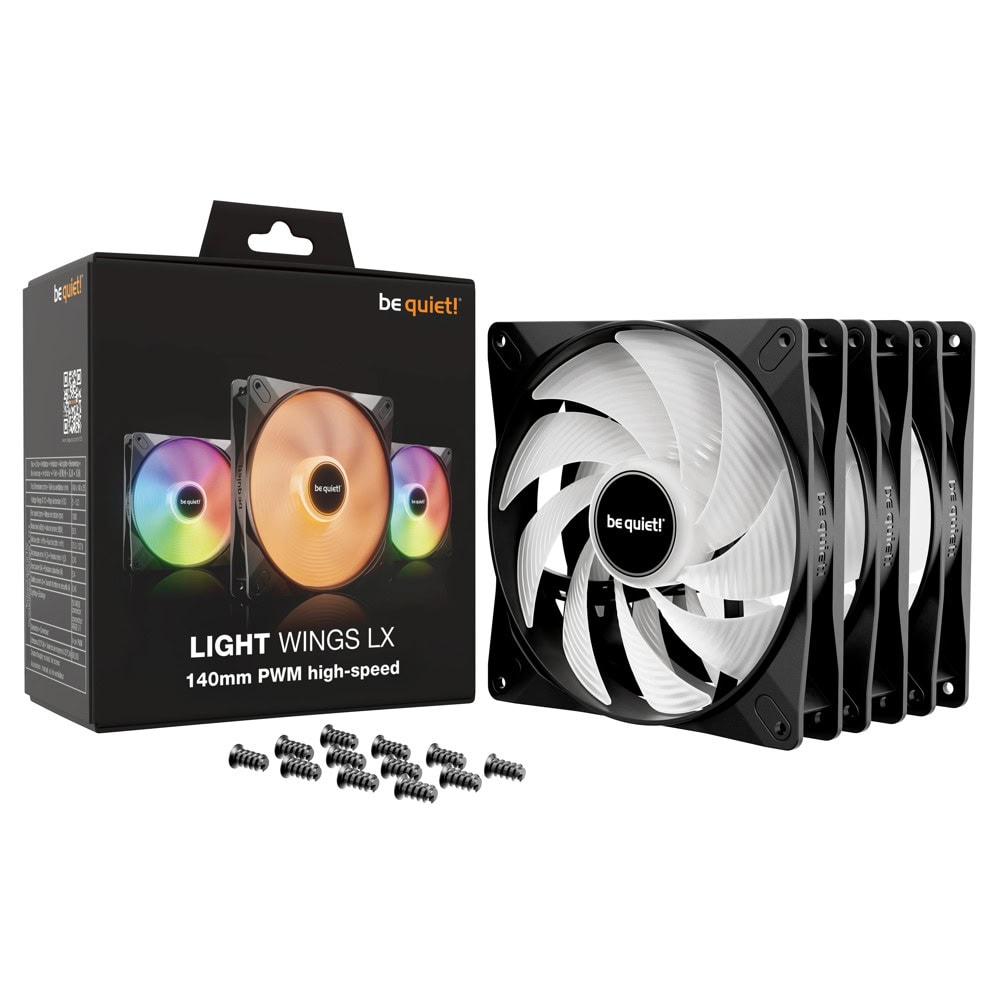

be quiet! LIGHT WINGS LX 3-pack
BL130
Black
Mechanical specifications
Lighting: ARGB LED
Fan speed at 100% PWM / 12V (rpm): 1800
Dimensions (L x W x H), (mm): 140 x 25 x 140
Weight incl. fixed cables (g): 169
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: -
Screw fixing: ✓
Cables / Connectors
Daisy-chain compatible: ✓
Lighting connector: 5V 3-pin ARGB
Connector: 4-pin PWM
Cable length (mm): 500
Cable sleeve: -
Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h): 75.3 / 127.9
Air Pressure at 100% PWM / 12V (mm H2O): 2.45
Noise level at 100% PWM / 12V (dB(A)): 30.5
Lifespan (h / 25°C): 60,000
Zero RPM mode: -
Electrical specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 - 13.2
Current consumption (A): 0.18
Input current (A): 0.18
Safety current (A): 0.45
Input power (W): 5.4
Rated Current LED (A): 0.39
BL130
Black
Mechanical specifications
Lighting: ARGB LED
Fan speed at 100% PWM / 12V (rpm): 1800
Dimensions (L x W x H), (mm): 140 x 25 x 140
Weight incl. fixed cables (g): 169
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: -
Screw fixing: ✓
Cables / Connectors
Daisy-chain compatible: ✓
Lighting connector: 5V 3-pin ARGB
Connector: 4-pin PWM
Cable length (mm): 500
Cable sleeve: -
Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h): 75.3 / 127.9
Air Pressure at 100% PWM / 12V (mm H2O): 2.45
Noise level at 100% PWM / 12V (dB(A)): 30.5
Lifespan (h / 25°C): 60,000
Zero RPM mode: -
Electrical specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 - 13.2
Current consumption (A): 0.18
Input current (A): 0.18
Safety current (A): 0.45
Input power (W): 5.4
Rated Current LED (A): 0.39
Технически характеристики
| Lighting | ARGB LED |
| Dimensions (L x W x H), (mm) | 140 x 25 x 140 |
| Weight incl. fixed cables (g) | 169 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Screw fixing | ✓ |
| Daisy-chain compatible | ✓ |
| Lighting connector | 5V 3-pin ARGB |
| Конектор | 4-pin PWM |
| Cable length (mm) | 500 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 75.3 / 127.9 |
| Lifespan (h / 25°C) | 60,000 |
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.18 |
| Input current (A) | 0.18 |
| Safety current (A) | 0.45 |
| Input power (W) | 5.4 |
| Rated Current LED (A) | 0.39 |
