Noctua
Вентилатор 92mm
Артикул №: 1000044242
Категория:
Вентилатори
20,99 €
✓ Налично във външен склад

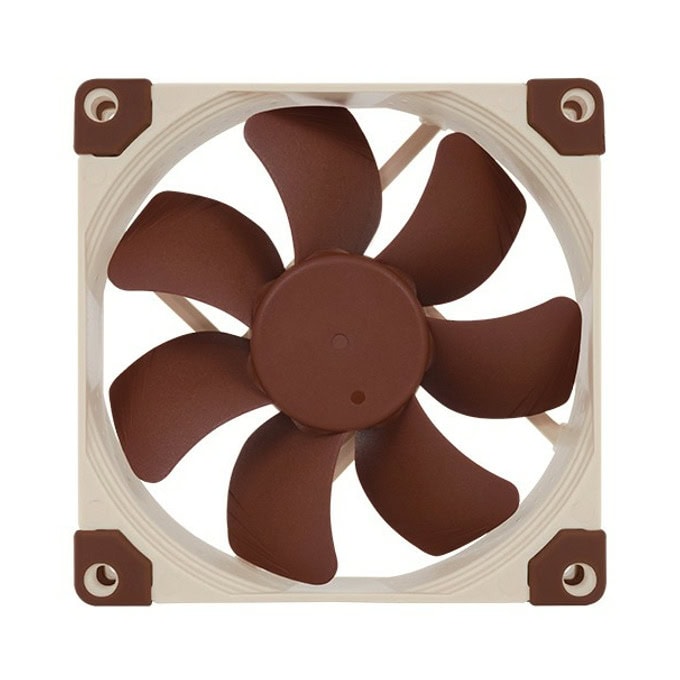

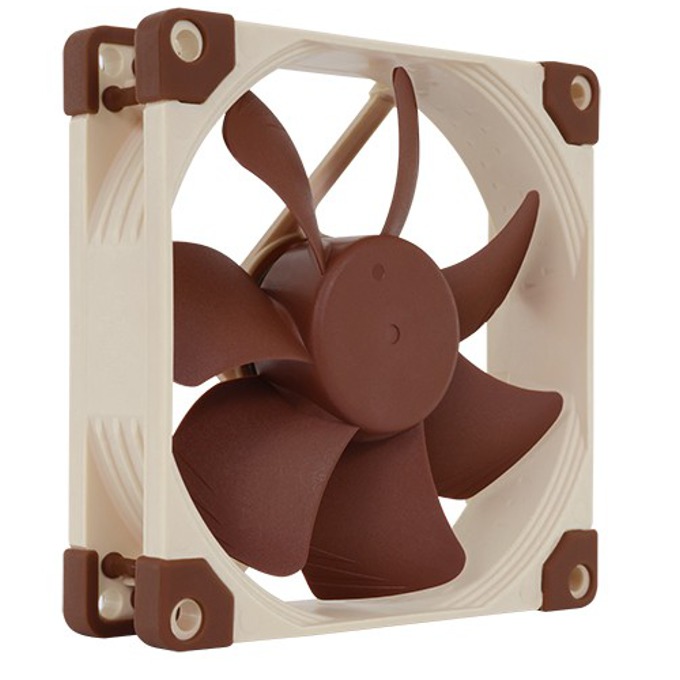

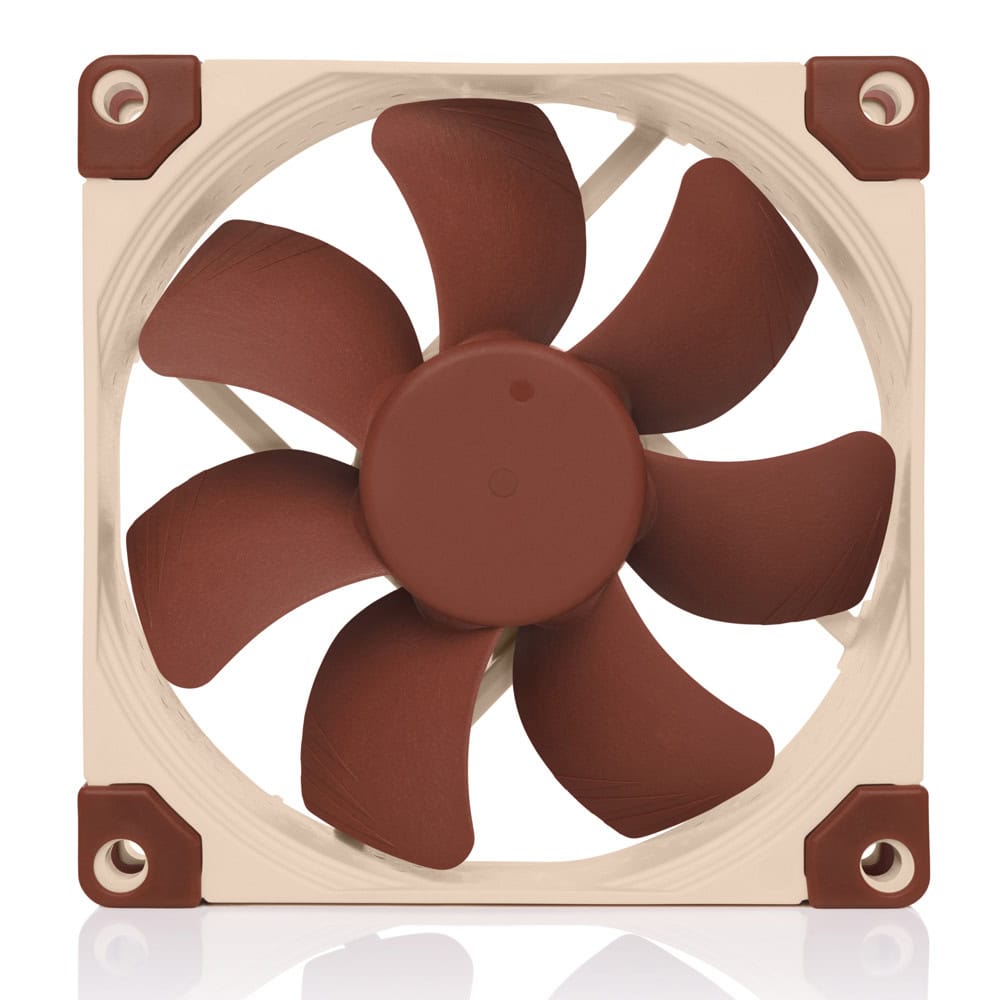

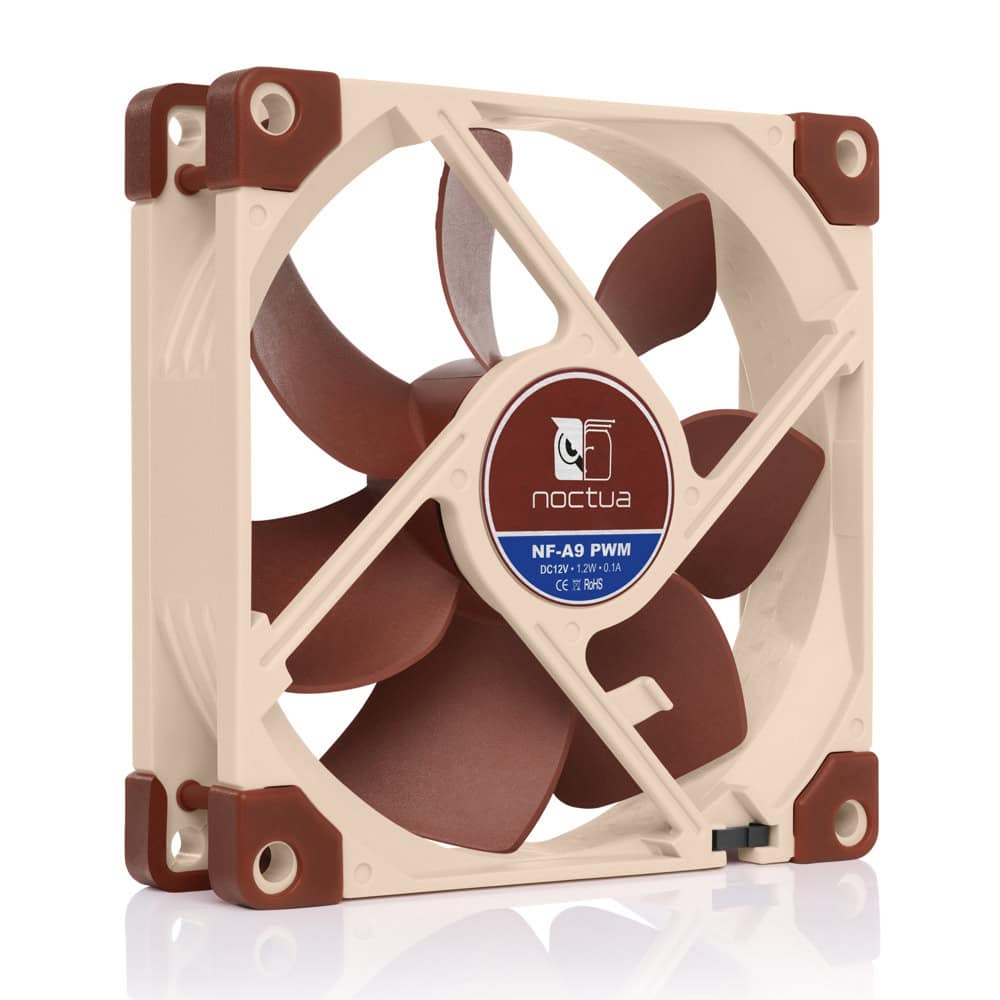

Noctua NF-A9 PWM
92mm Fan
Specifications
Size: 92x92x25 mm
Connector: 4-pin PWM
Bearing: SSO2
Blade Geometry: A-Series with Flow Acceleration Channels
Frame Technology: AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%): 2000 RPM
Rotational Speed with L.N.A. (+/- 10%): 1550 RPM
Min. Rotational Speed (PWM, +/-20%): 400 RPM
Airflow: 78,9 m³/h
Airflow with L.N.A.: 62,6 m³/h
Acoustical Noise: 22,8 dB(A)
Acoustical Noise with L.N.A.: 16,3 dB(A)
92mm Fan
Specifications
Size: 92x92x25 mm
Connector: 4-pin PWM
Bearing: SSO2
Blade Geometry: A-Series with Flow Acceleration Channels
Frame Technology: AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%): 2000 RPM
Rotational Speed with L.N.A. (+/- 10%): 1550 RPM
Min. Rotational Speed (PWM, +/-20%): 400 RPM
Airflow: 78,9 m³/h
Airflow with L.N.A.: 62,6 m³/h
Acoustical Noise: 22,8 dB(A)
Acoustical Noise with L.N.A.: 16,3 dB(A)
Технически характеристики
| Размер | 92x92x25 mm |
| Конектор | 4-pin PWM |
| Bearing | SSO2 |
| Blade Geometry | A-Series with Flow Acceleration Channels |
| Frame Technology | AAO (Advanced Acoustic Optimisation) |
| Rotational Speed (+/- 10%) | 2000 RPM |
| Rotational Speed with L.N.A. (+/- 10%) | 1550 RPM |
| Min. Rotational Speed (PWM, +/-20%) | 400 RPM |
| Airflow | 78,9 m³/h |
| Airflow with L.N.A. | 62,6 m³/h |
| Acoustical Noise | 22,8 dB(A) |
| Acoustical Noise with L.N.A. | 16,3 dB(A) |
| Static Pressure | 2,28 mm H2O |
| Static Pressure with L.N.A. | 1,53 mm H2O |
| Max. Input Power | 1,2 W |
| Max. Input Current | 0,1 A |
| Напрежение | 12 V |
| MTBF | > 150.000 h |
