Noctua
Вентилатор 60mm
Артикул №: 1000044251
Категория:
Вентилатори
15,99 €
✓ Налично във външен склад
Noctua - Bild

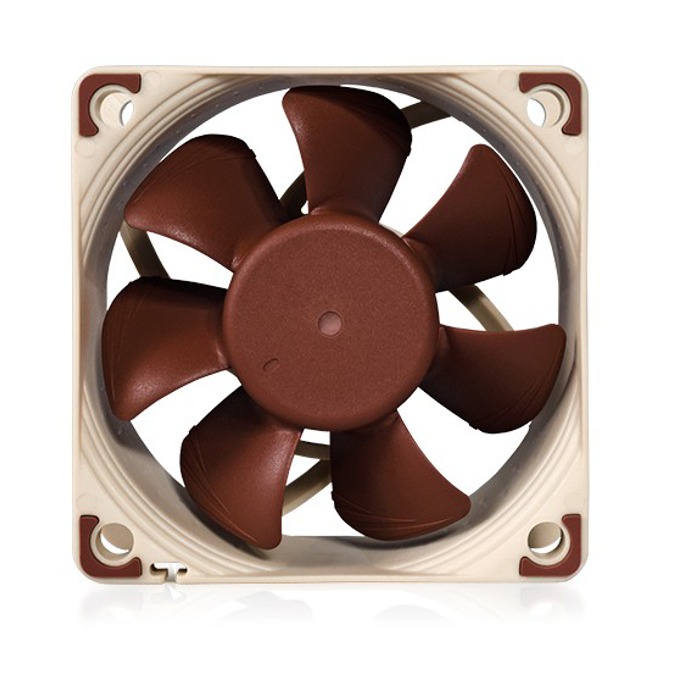

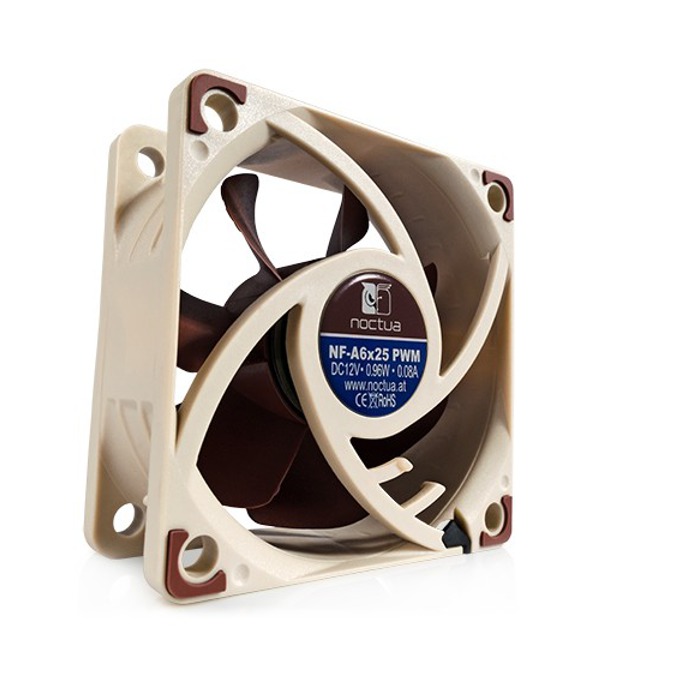

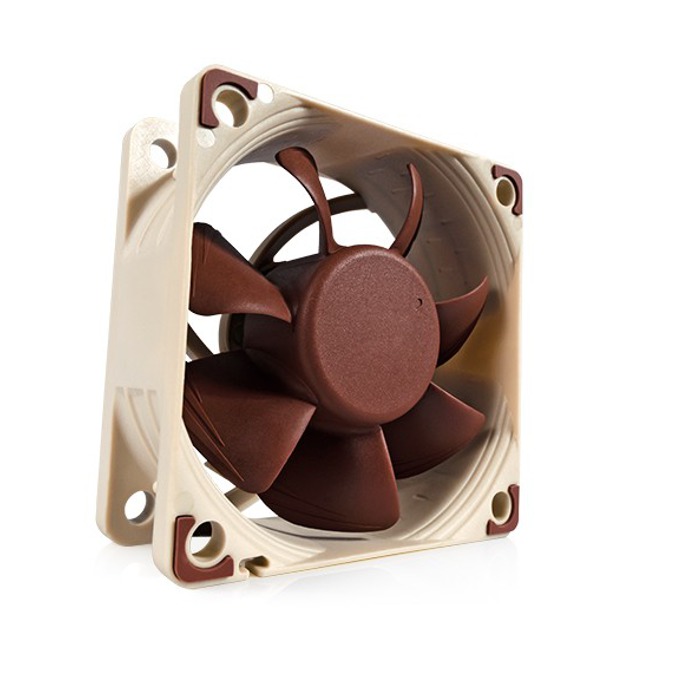

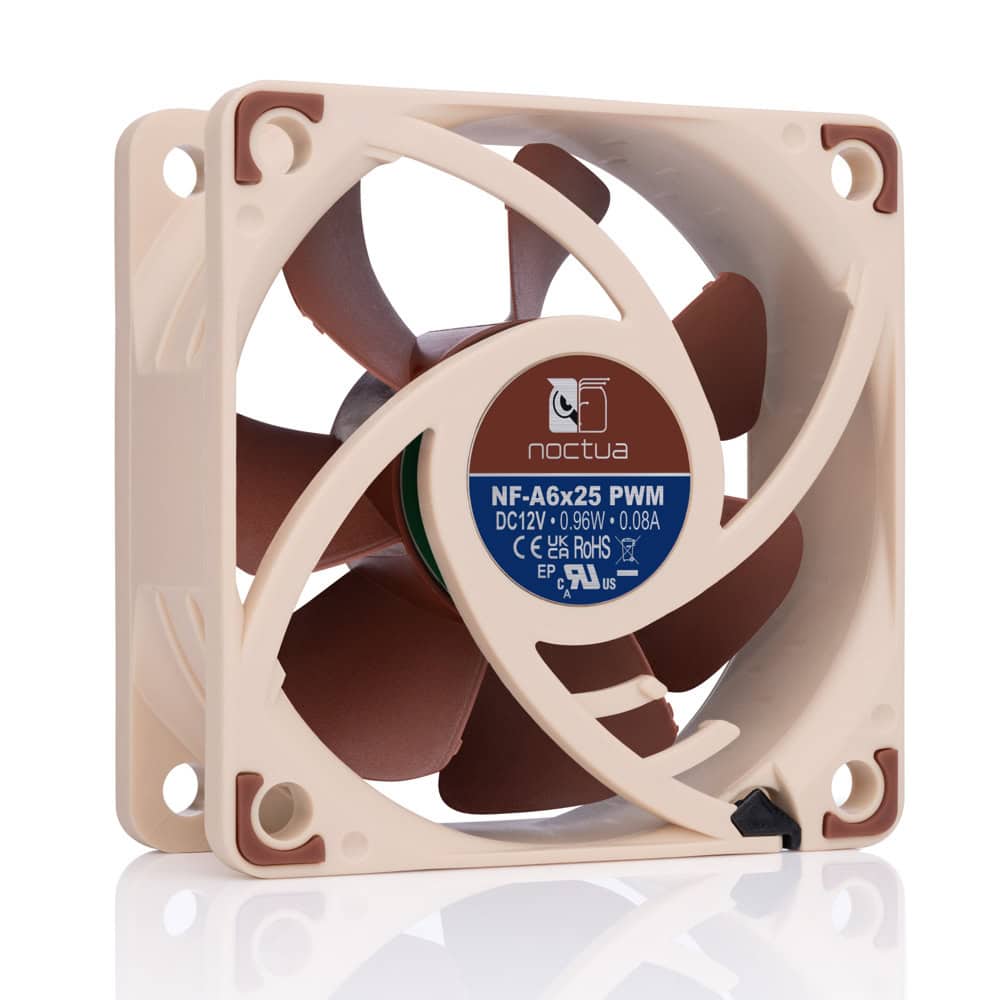

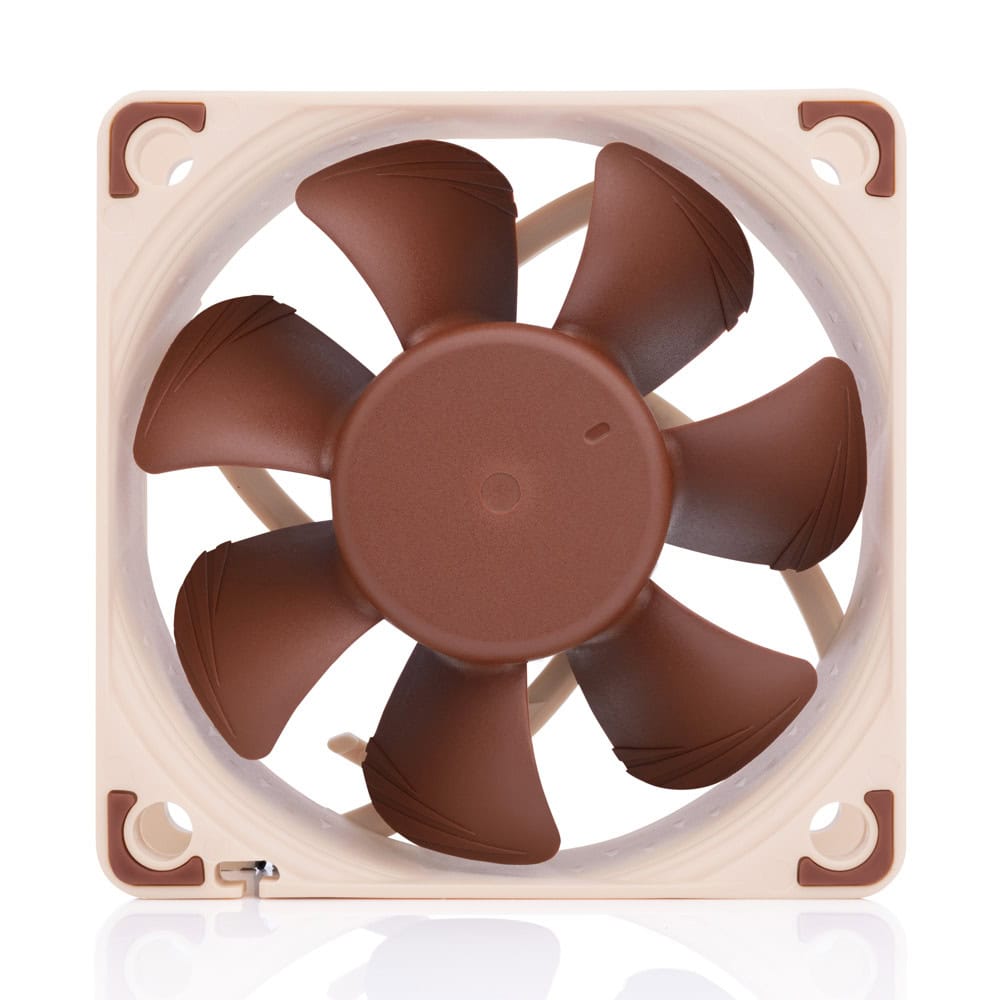

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A6x25 is a highly optimised, premium quality quiet fan in 60x25mm size. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 3000 to 2300rpm. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands
Size: 60x60x25 mm
Connector: 4-pin PWM
Bearing: SSO2
Blade Geometry: A-Series with Flow Acceleration Channels
Frame Technology: AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%): 3000 RPM
Rotational Speed with L.N.A. (+/- 10%): 2300 RPM
Min. Rotational Speed (PWM, +/-20%): 550 RPM
Airflow : 29,2 m³/h
Airflow with L.N.A.: 22,6 m³/h
Acoustical Noise: 19,3 dB(A)
Acoustical Noise with L.N.A.: 13,7 dB(A)
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A6x25 is a highly optimised, premium quality quiet fan in 60x25mm size. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 3000 to 2300rpm. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands
Size: 60x60x25 mm
Connector: 4-pin PWM
Bearing: SSO2
Blade Geometry: A-Series with Flow Acceleration Channels
Frame Technology: AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%): 3000 RPM
Rotational Speed with L.N.A. (+/- 10%): 2300 RPM
Min. Rotational Speed (PWM, +/-20%): 550 RPM
Airflow : 29,2 m³/h
Airflow with L.N.A.: 22,6 m³/h
Acoustical Noise: 19,3 dB(A)
Acoustical Noise with L.N.A.: 13,7 dB(A)
Технически характеристики
| Размер | 60x60x25 mm |
| Конектор | 4-pin PWM |
| Bearing | SSO2 |
| Blade Geometry | A-Series with Flow Acceleration Channels |
| Frame Technology | AAO (Advanced Acoustic Optimisation) |
| Rotational Speed (+/- 10%) | 3000 RPM |
| Rotational Speed with L.N.A. (+/- 10%) | 2300 RPM |
| Min. Rotational Speed (PWM, +/-20%) | 550 RPM |
| Airflow | 29,2 m³/h |
| Airflow with L.N.A. | 22,6 m³/h |
| Acoustical Noise | 19,3 dB(A) |
| Acoustical Noise with L.N.A. | 13,7 dB(A) |
| Static Pressure | 2,18 mm H2O |
| Static Pressure with L.N.A. | 1,29 mm H2O |
| Max. Input Power | 0,96 W |
| Max. Input Current | 0,08 A |
| Напрежение | 12 V |
| MTBF | > 150.000 h |
