Noctua
Вентилатор 60mm
Артикул №: 1000044420
Категория:
Вентилатори
16,99 €
✓ Налично във външен склад

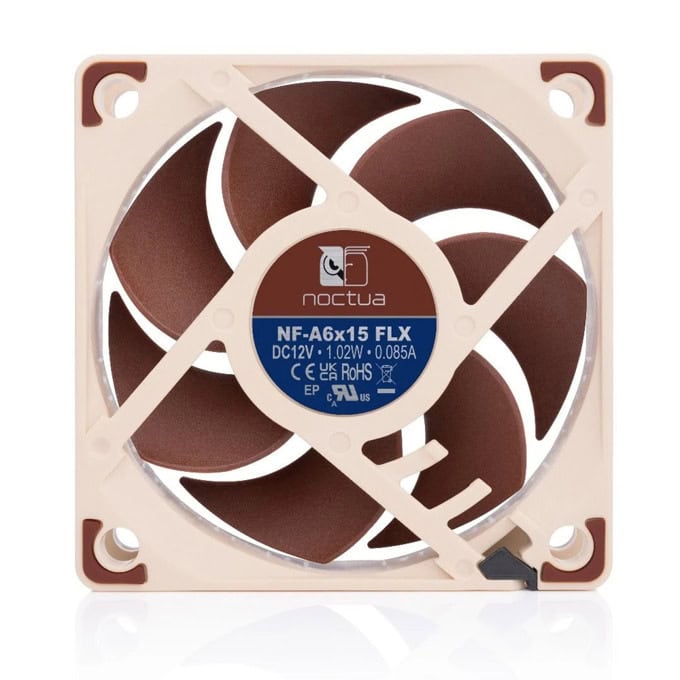

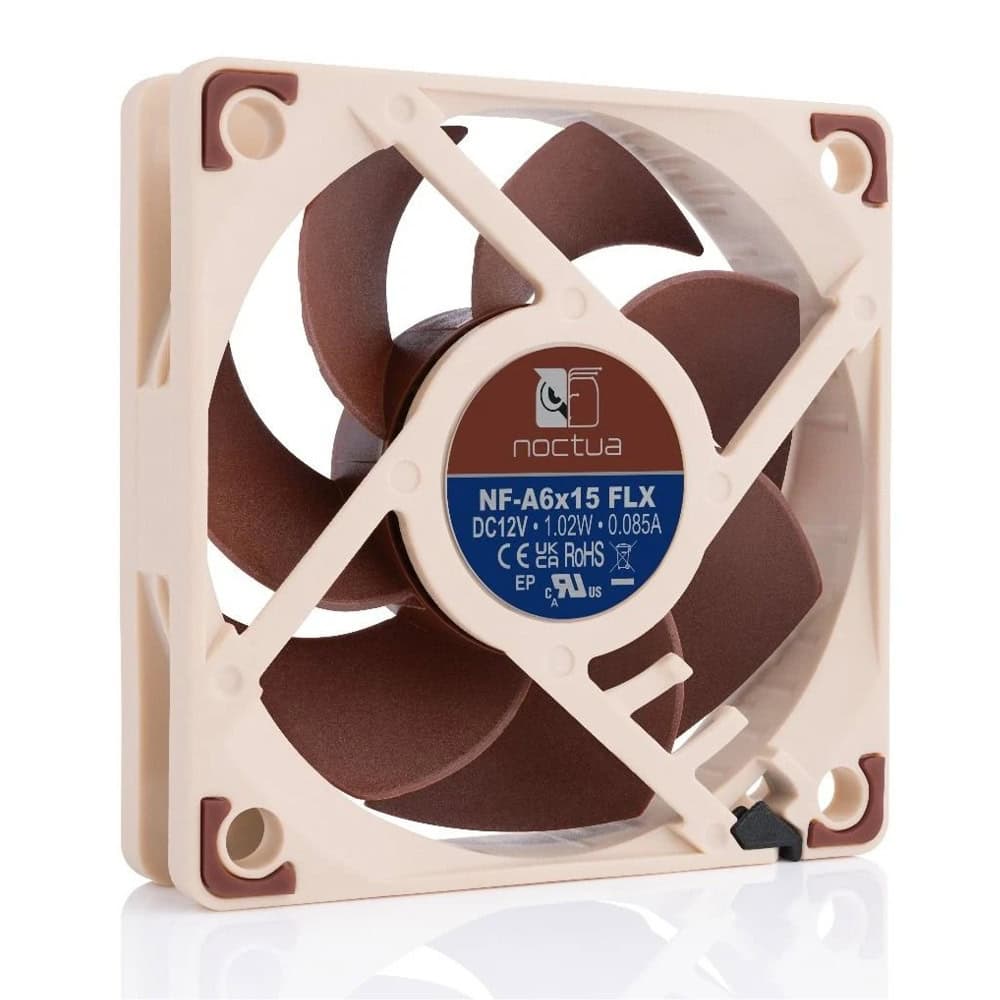

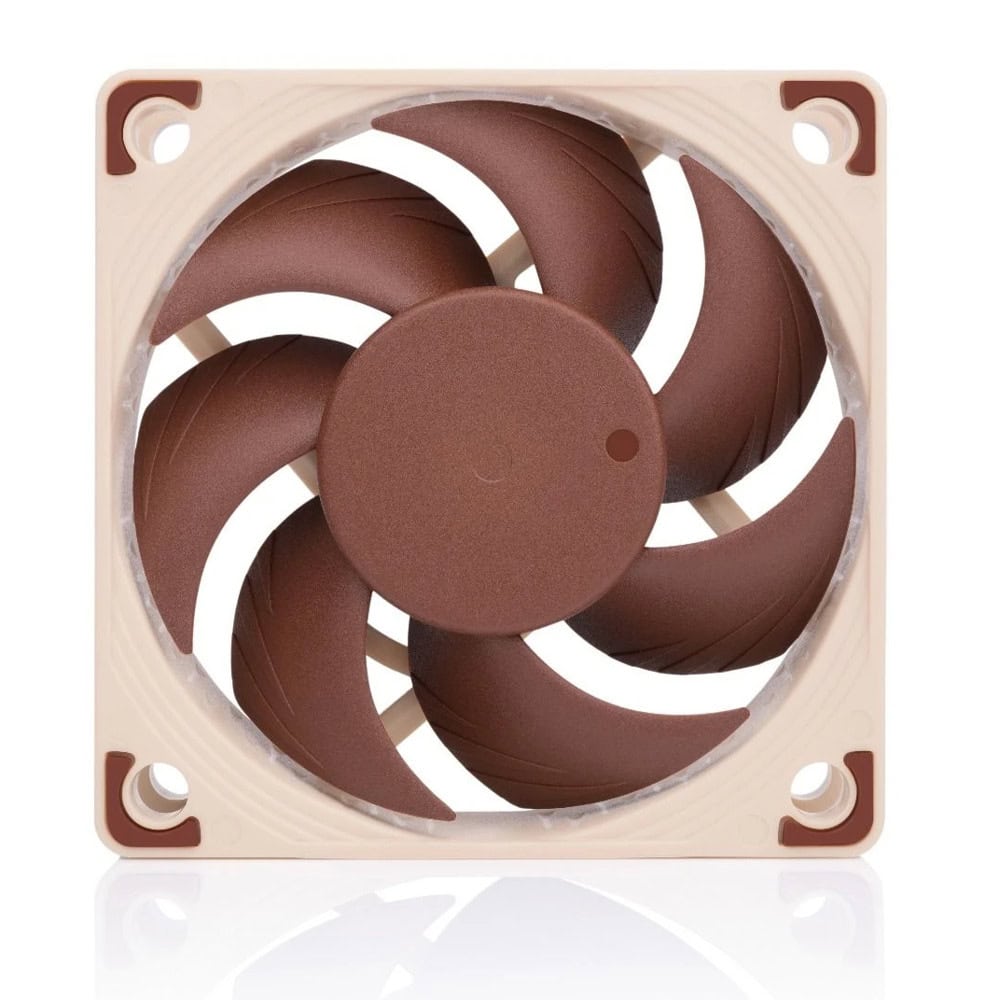

Noctua NF-A6x15-FLX
Size: 60x60x15 mm
Mounting hole spacing: 50x50 mm
Connector & pin-configuration: 3-pin
Cable length: 20cm + 30cm NA-EC1 extension cable
Bearing: SSO2
Blade geometry: A-Series with Flow Acceleration Channels
Frame technology: AAO (Advanced Acoustic Optimisation)
Material: Fibre-glass reinforced PBT
Rotational speed (+/- 10%): 3500 RPM
Rotational speed with L.N.A. (+/- 10%): 3050 RPM
Rotational Speed with U.L.N.A. (+/- 10%): 2250 RPM
Airflow: 23.4 m³/h
Airflow with L.N.A.: 20.1 m³/h
Airflow with U.L.N.A.: 14.5 m³/h
Acoustical noise: 19,8 dB(A)
Acoustical noise with L.N.A.: 16.5 dB(A)
Acoustical noise with U.L.N.A.: 7.8 dB(A)
Static pressure: 2.43 mm H₂O
Static pressure with L.N.A.: 1.79 mm H₂O
Static pressure with U.L.N.A.: 0.98 mm H₂O
Input power (max.): 1.02 W
Max. input current: 0.085 A
Operating voltage: 12 V
MTTF: > 150.000 h
Size: 60x60x15 mm
Mounting hole spacing: 50x50 mm
Connector & pin-configuration: 3-pin
Cable length: 20cm + 30cm NA-EC1 extension cable
Bearing: SSO2
Blade geometry: A-Series with Flow Acceleration Channels
Frame technology: AAO (Advanced Acoustic Optimisation)
Material: Fibre-glass reinforced PBT
Rotational speed (+/- 10%): 3500 RPM
Rotational speed with L.N.A. (+/- 10%): 3050 RPM
Rotational Speed with U.L.N.A. (+/- 10%): 2250 RPM
Airflow: 23.4 m³/h
Airflow with L.N.A.: 20.1 m³/h
Airflow with U.L.N.A.: 14.5 m³/h
Acoustical noise: 19,8 dB(A)
Acoustical noise with L.N.A.: 16.5 dB(A)
Acoustical noise with U.L.N.A.: 7.8 dB(A)
Static pressure: 2.43 mm H₂O
Static pressure with L.N.A.: 1.79 mm H₂O
Static pressure with U.L.N.A.: 0.98 mm H₂O
Input power (max.): 1.02 W
Max. input current: 0.085 A
Operating voltage: 12 V
MTTF: > 150.000 h
Технически характеристики
| Размер | 60x60x15 mm |
| Mounting hole spacing | 50x50 mm |
| Connector & pin-configuration | 3-pin |
| Дължина на кабела | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Материал | Fibre-glass reinforced PBT |
| Rotational speed (+/- 10%) | 3500 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 3050 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) | 2250 RPM |
| Airflow | 23.4 m³/h |
| Airflow with L.N.A. | 20.1 m³/h |
| Airflow with U.L.N.A. | 14.5 m³/h |
| Acoustical noise | 19,8 dB(A) |
| Acoustical noise with L.N.A. | 16.5 dB(A) |
| Acoustical noise with U.L.N.A. | 7.8 dB(A) |
| Static pressure | 2.43 mm H₂O |
| Static pressure with L.N.A. | 1.79 mm H₂O |
| Static pressure with U.L.N.A. | 0.98 mm H₂O |
| Input power (max.) | 1.02 W |
| Max. input current | 0.085 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
