Вентилатор 40mm Noctua NF-A4x10-PWM
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x10 is an award-winning, premium-quality quiet fan in size 40x10mm. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor as well as an OmniJoin Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
FAN Specification
Size
40x40x10 mm
Mounting hole spacing
32x32 mm

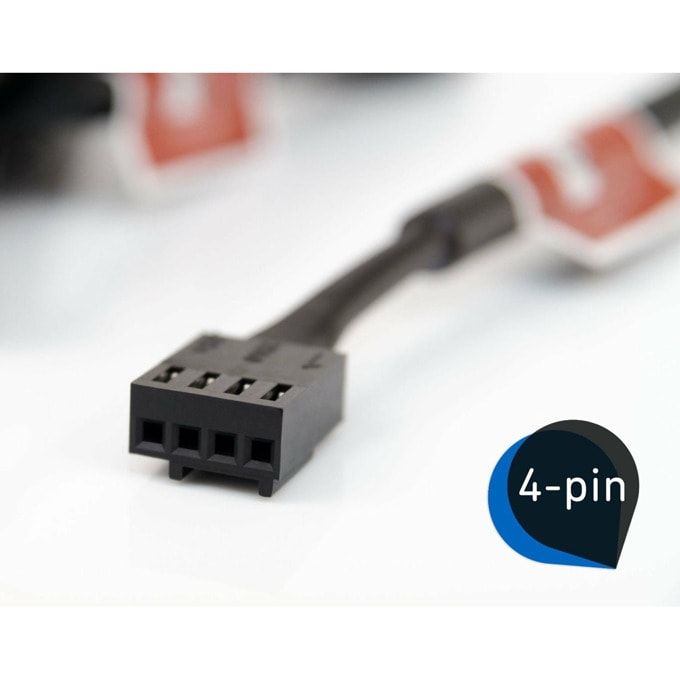

Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
Характеристики
| 5000 RPM | Rotational speed with L.N.A. (+/- 10%) |
| 3700 RPM | Min. rotational speed @ 20% PWM (+/-20%) |
| 1000 RPM | Airflow |
| 8,9 m³/h | Airflow with L.N.A. |
| 6,6 m³/h | Acoustical noise |
| 19,6 dB(A) | Acoustical noise with L.N.A. |
| 12,9 dB(A) | Static pressure |
| 1,95 mm H₂O | Static pressure with L.N.A. |
| 1,21 mm H₂O | Input power (max.) |
| 0,48 W | Input current (max.) |
| 0,04 A | Operating voltage |
| 12 V | MTTF |
| 150.000 h | Scope of delivery |
| 30cm Extension Cable | NA-AV3 anti-vibration mounts |
| OmniJoin Adaptor Set | 4-pin y-cable |
| Low-Noise Adaptor (L.N.A.) | 4 Fan Screws |
