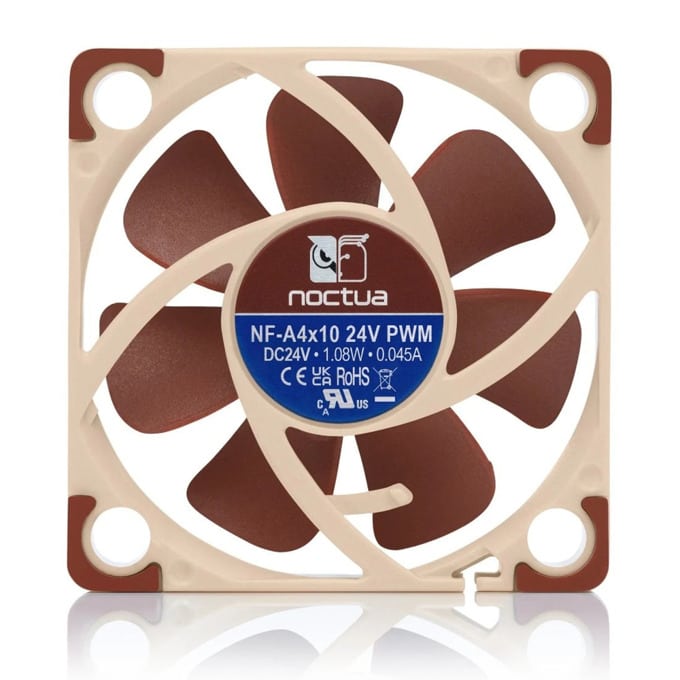

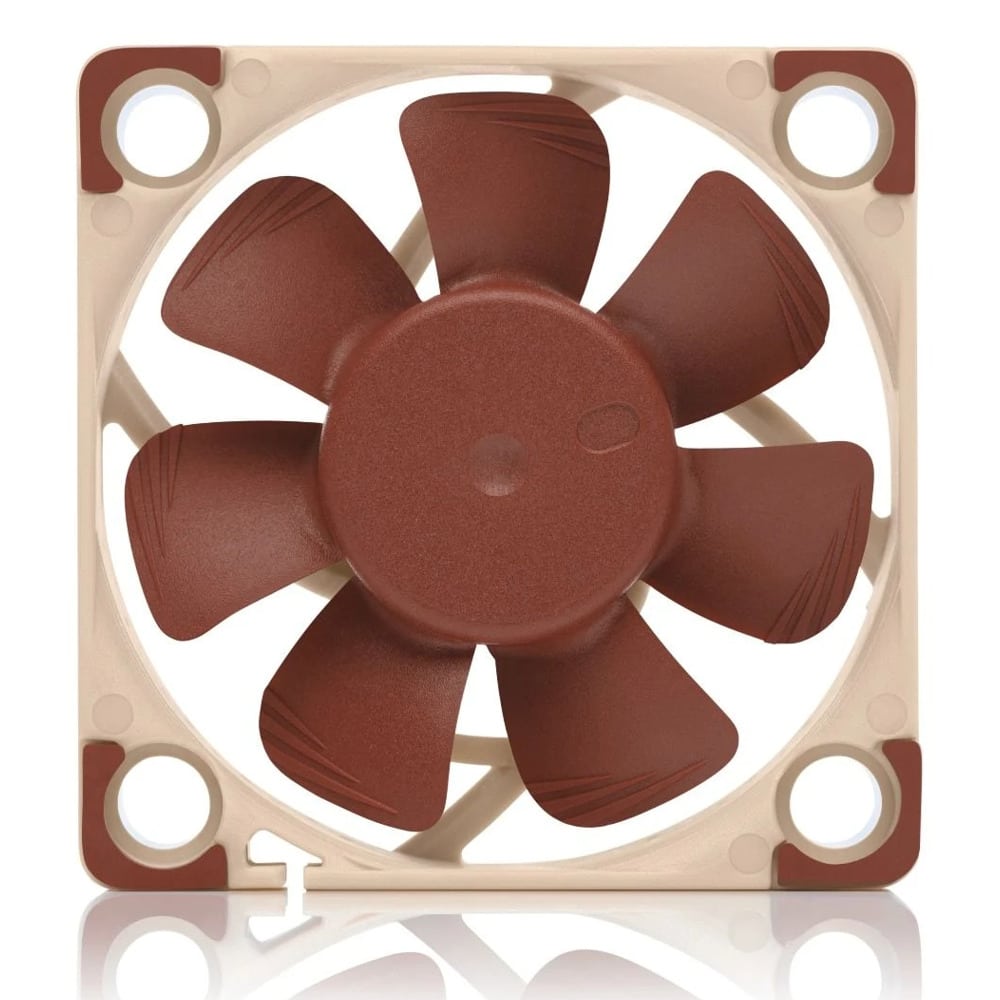

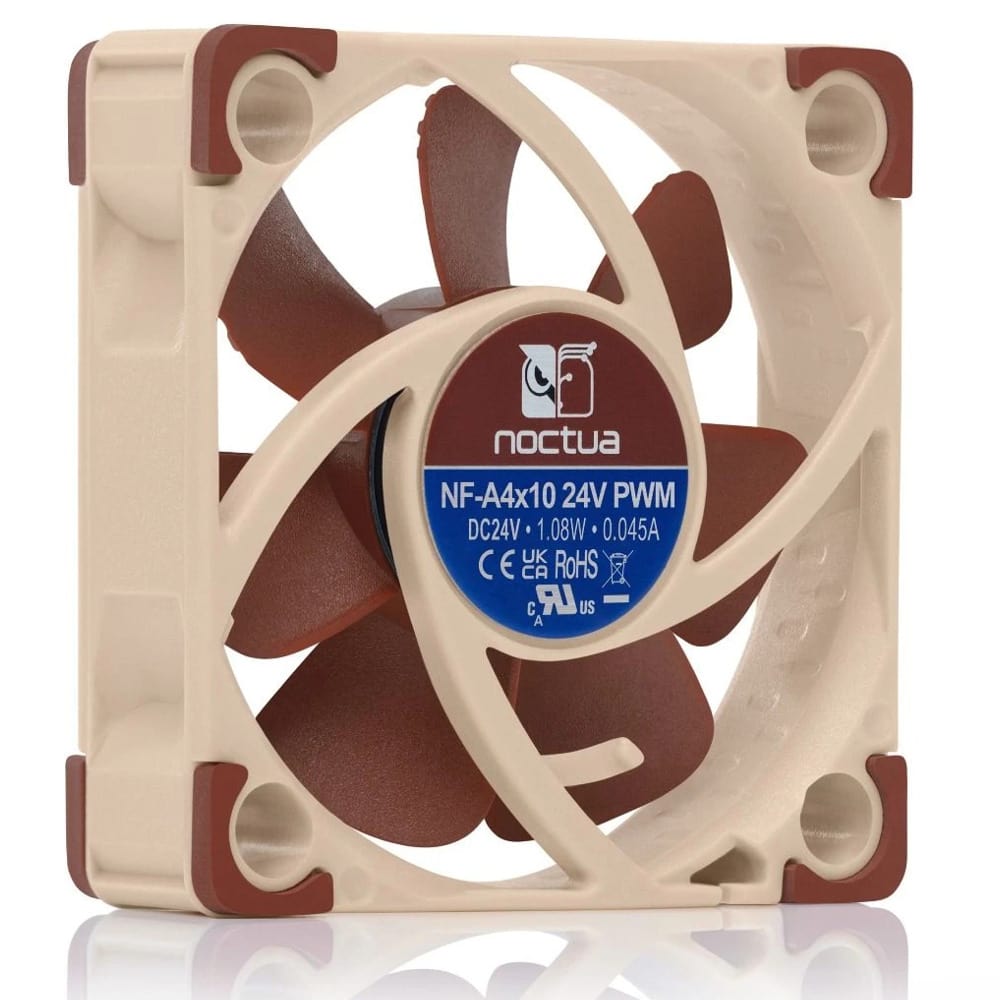

Вентилатор 40mm Noctua NF-A4x10 24V PWM

Caution: Being a 24V fan, the NF-A4x10 24V cannot be run at 12V and requires a starting voltage of at least 17V. It is therefore not suitable for standard PC applications.

The NF-A4x10 24V PWM is a PWM-enabled 24V variant of Noctua’s award-winning, premium-quality NF-A4x10 40mm fan. As such, it is ideal for 24V-based 3D printers as well as various other 24V applications. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A4x10 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included OmniJoin Adaptor Set, NA-AC9 adaptor cable for popular 3D printers (e.g. Creality Ender 3 & CR-10, Anycubic Mega), Low-Noise Adaptor and 6-year manufacturer’s warranty, the NF-A4x10 24V PWM is a premium choice for demanding 24V applications with or without PWM control.

FAN Specification

Size

40x40x10 mm

Mounting hole spacing

32x32 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Material
