Noctua
Вентилатор 140mm
Артикул №: 1000044235
Категория:
Вентилатори
26,99 €
✓ Налично във външен склад

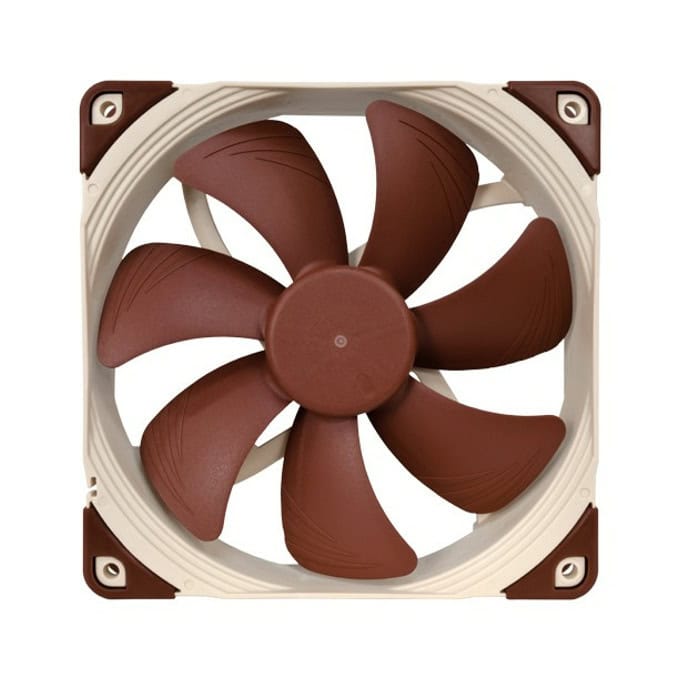

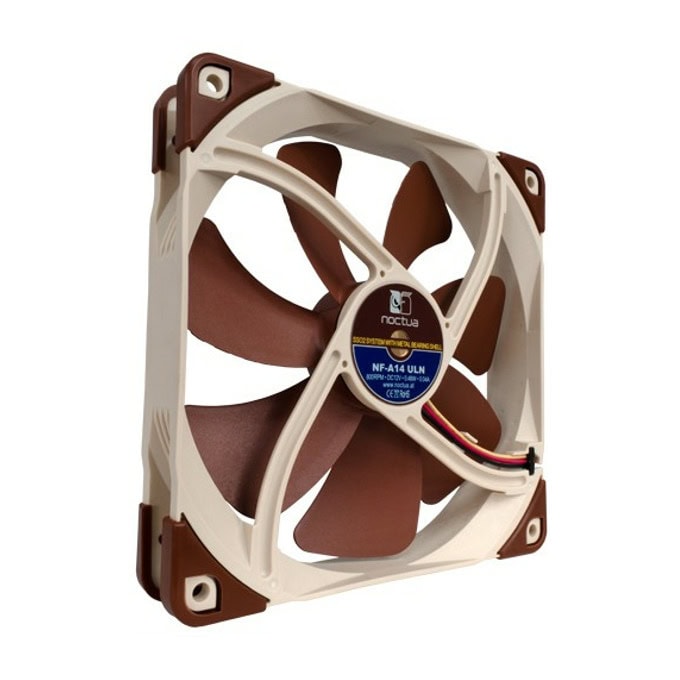

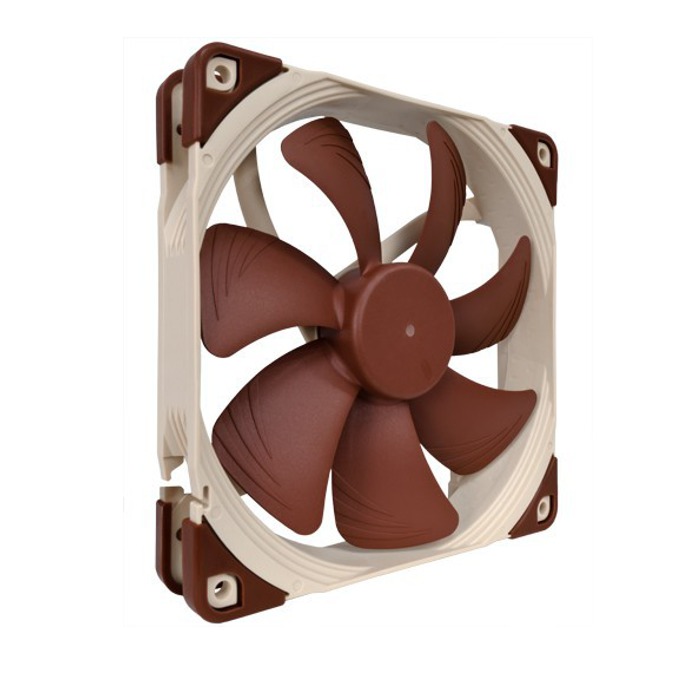

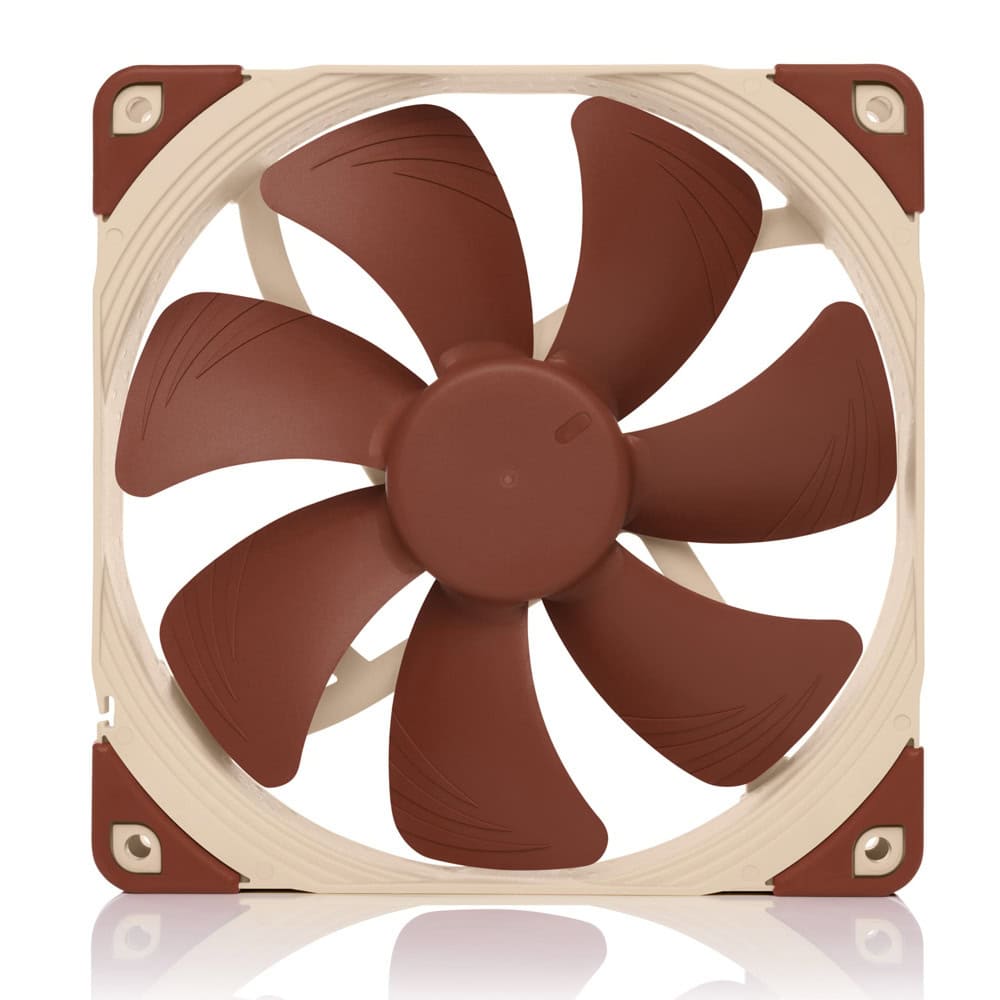

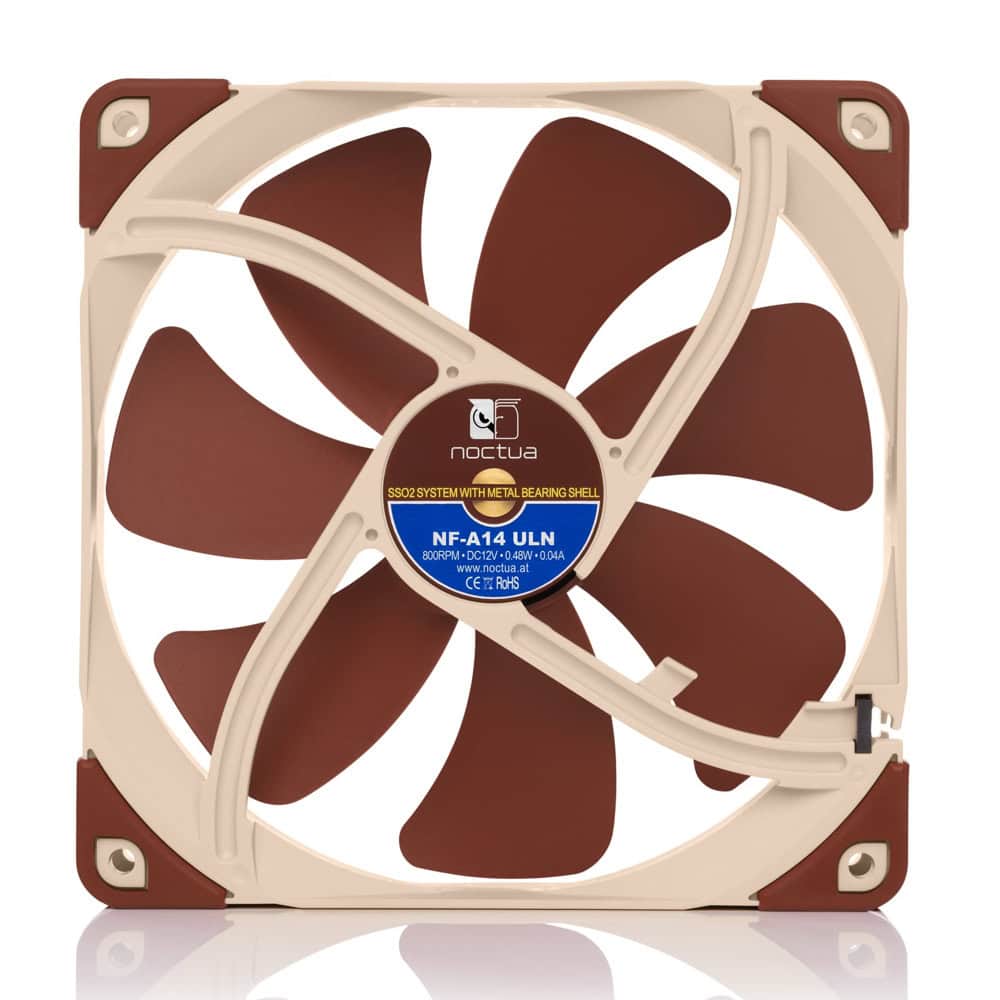

The NF-A14 is a premium quality quiet 140mm fan with a square frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. Its square shape and 140mm mounting holes (124.5mm spacing) make it ideal for use on watercooling radiators or as an upgrade for 140mm case fans. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A14 further improves the renowned quiet cooling performance of the award-winning NF-P14. The ULN version provides super-slow 800/650rpm speed settings for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
Specifications
Size: 140x140x25 mm
Connector: 3-pin
Bearing: SSO2
Blade Geometry: A-Series with Flow Acceleration Channels
Frame Technology: AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%): 800 RPM
Rotational Speed with L.N.A. (+/- 10%): 650 RPM
Airflow: 79,8 m³/h
Airflow with L.N.A.: 66,4 m³/h
Acoustical Noise: 11,9 dB(A)
Acoustical Noise with L.N.A.: 9,1 dB(A)
Specifications
Size: 140x140x25 mm
Connector: 3-pin
Bearing: SSO2
Blade Geometry: A-Series with Flow Acceleration Channels
Frame Technology: AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%): 800 RPM
Rotational Speed with L.N.A. (+/- 10%): 650 RPM
Airflow: 79,8 m³/h
Airflow with L.N.A.: 66,4 m³/h
Acoustical Noise: 11,9 dB(A)
Acoustical Noise with L.N.A.: 9,1 dB(A)
Технически характеристики
| Размер | 140x140x25 mm |
| Конектор | 3-pin |
| Bearing | SSO2 |
| Blade Geometry | A-Series with Flow Acceleration Channels |
| Frame Technology | AAO (Advanced Acoustic Optimisation) |
| Rotational Speed (+/- 10%) | 800 RPM |
| Rotational Speed with L.N.A. (+/- 10%) | 650 RPM |
| Airflow | 79,8 m³/h |
| Airflow with L.N.A. | 66,4 m³/h |
| Acoustical Noise | 11,9 dB(A) |
| Acoustical Noise with L.N.A. | 9,1 dB(A) |
| Static Pressure | 0,69 mm H2O |
| Static Pressure with L.N.A. | 0,42 mm H2O |
| Max. Input Power | 0,48 W |
| Max. Input Current | 0,04 A |
| Напрежение | 12 V |
| MTBF | > 150.000 h |
| 3 | 4 Pin Adaptor |
