A-Data
Вентилатор 140mm
Артикул №: 1000036544
Категория:
Вентилатори
15,99 €
✓ Налично във външен склад
EFFICIENT COOLING PERFORMANCE
XPG HURRICANE 140 ARGB PWM fan offers more than just mesmerizing dual-ring lighting effects. The fan speed runs up to 1,800 RPM, generating up to 91 CFM of cool air with 2.2 mmAq of static pressure.
PATENTED FAN BLADE DESIGN

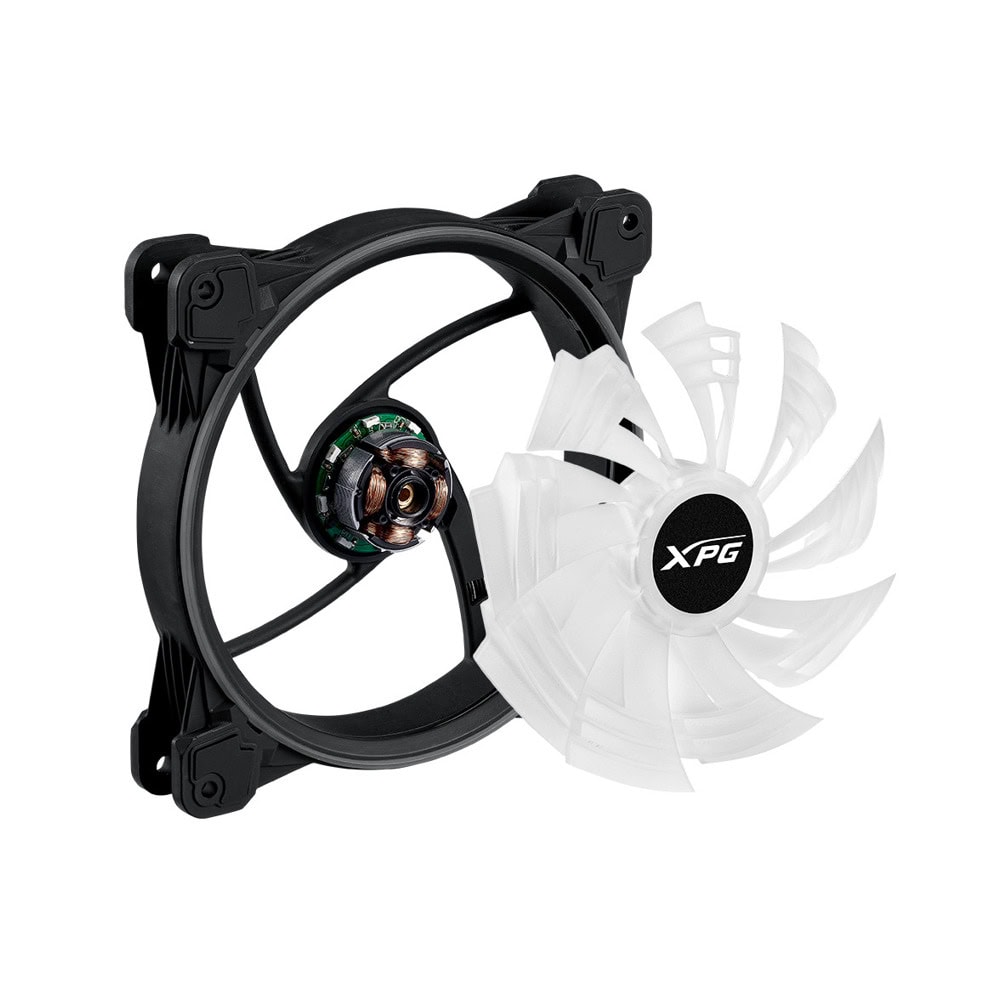

Innovative dual-layer fan blade design is comprised of the Main Blade and the Booster Blade. Both function simultaneously to enhance airflow and static pressure, while minimizing wind resistance hence less noise during operation.
Specifications
Dimensions
140 x 140 x 25mm
Bearing Type
Fluid Dynamic Bearing
Connector
4-Pin
Speed (RPM)
700 ~ 1,800 RPM ± 10%
Fan Max Air Flow (CFM)
91 CFM±10%
Fan Max Static Pressure (mmH2O)
2.2mm H2O ±10%
Fan Noise Level (dBA)
28.1 dBA(avg.)
Fan Rated Voltage
DC 12V
Fan Starting Voltage
DC 3.5V
Fan Operating Voltage
DC 3.5V～12.6V
Fan Rated Current
0.4A (Max)
Fan Power Dissipation
4.8W
Fan Protection
Auto-Restart
MTTF
230,000 Hours
Cable Length
610mm ± 10% with Daisy-Chain Capable
Remark
*Data may vary due to differences in testing equipment and environment, with ±10% tolerance.
XPG HURRICANE 140 ARGB PWM fan offers more than just mesmerizing dual-ring lighting effects. The fan speed runs up to 1,800 RPM, generating up to 91 CFM of cool air with 2.2 mmAq of static pressure.
PATENTED FAN BLADE DESIGN
Innovative dual-layer fan blade design is comprised of the Main Blade and the Booster Blade. Both function simultaneously to enhance airflow and static pressure, while minimizing wind resistance hence less noise during operation.
Specifications
Dimensions
140 x 140 x 25mm
Bearing Type
Fluid Dynamic Bearing
Connector
4-Pin
Speed (RPM)
700 ~ 1,800 RPM ± 10%
Fan Max Air Flow (CFM)
91 CFM±10%
Fan Max Static Pressure (mmH2O)
2.2mm H2O ±10%
Fan Noise Level (dBA)
28.1 dBA(avg.)
Fan Rated Voltage
DC 12V
Fan Starting Voltage
DC 3.5V
Fan Operating Voltage
DC 3.5V～12.6V
Fan Rated Current
0.4A (Max)
Fan Power Dissipation
4.8W
Fan Protection
Auto-Restart
MTTF
230,000 Hours
Cable Length
610mm ± 10% with Daisy-Chain Capable
Remark
*Data may vary due to differences in testing equipment and environment, with ±10% tolerance.
Характеристики
| X 140 x 25mm | 140 |
| CFM±10% | 91 |
| DBA(avg.) | 28.1 |
| Hours | 230,000 |
