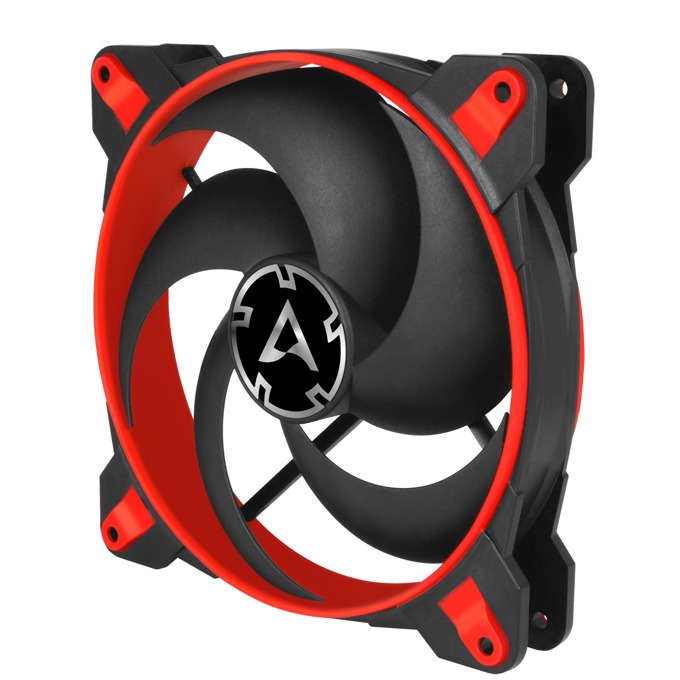

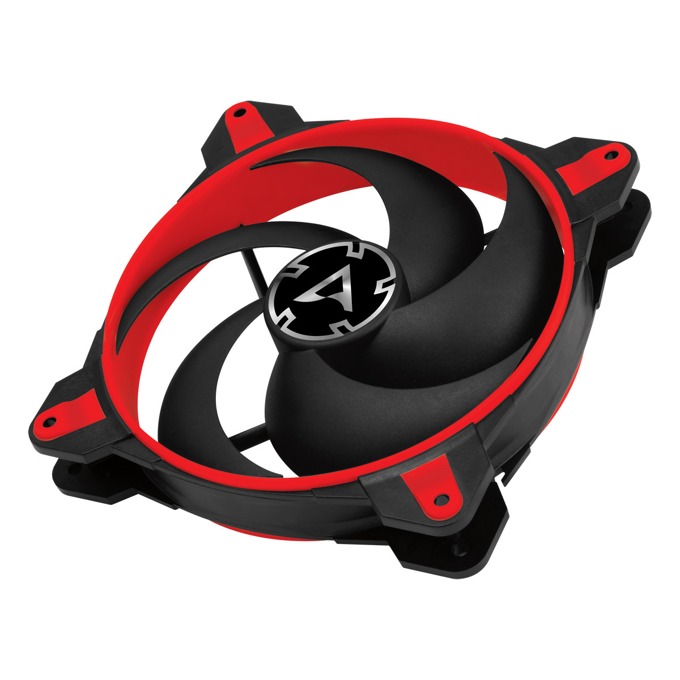

Вентилатор 140mm Arctic Fan BioniX P140 Red
Артикул №: 1000042325
Категория:
Вентилатори
11,99 €
✓ Налично в централен склад
Optimised for Static Pressure
During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure.
The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly
suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the
newest generation, which allows the new BioniX P140 to run much
more efficiently than its predecessors.
This saves energy and lowers the coil temperature without comprimising
the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its
low coil temperature.
200 to 1950 RPM
regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
0 dB Mode
The BioniX P140 is able to switch into silent passive mode when the PWM signal is below 5 % due to its new motor.
This allows working at your PC in complete silence without any unwanted noise.
Specifications:
Performance
During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure.
The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly
suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the
newest generation, which allows the new BioniX P140 to run much
more efficiently than its predecessors.
This saves energy and lowers the coil temperature without comprimising
the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its
low coil temperature.
200 to 1950 RPM
regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
0 dB Mode
The BioniX P140 is able to switch into silent passive mode when the PWM signal is below 5 % due to its new motor.
This allows working at your PC in complete silence without any unwanted noise.
Specifications:
Performance
Технически характеристики
| Air Flow | 77.6 CFM / 131.92 m³/h (@ 1.950 RPM) |
| Ниво на шум | 0.45 Sone (@ 1.950 RPM) |
| Static Pressure | 2.85 mm H2O(@ 1950 RPM) |
| Typical Voltage | 12 V DC |
| Дължина на кабела | 400 mm |
| Sub PST Cable Length | 50 mm |
| Motherboard | +12V DC |
