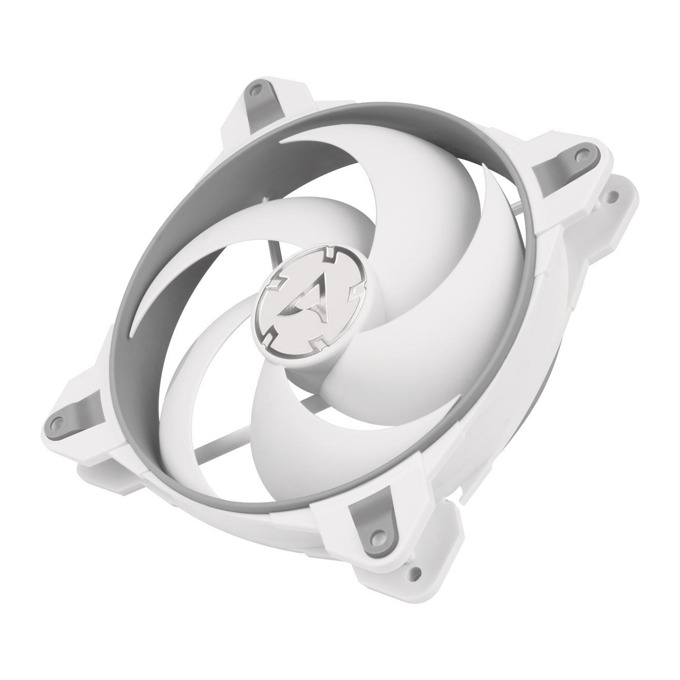

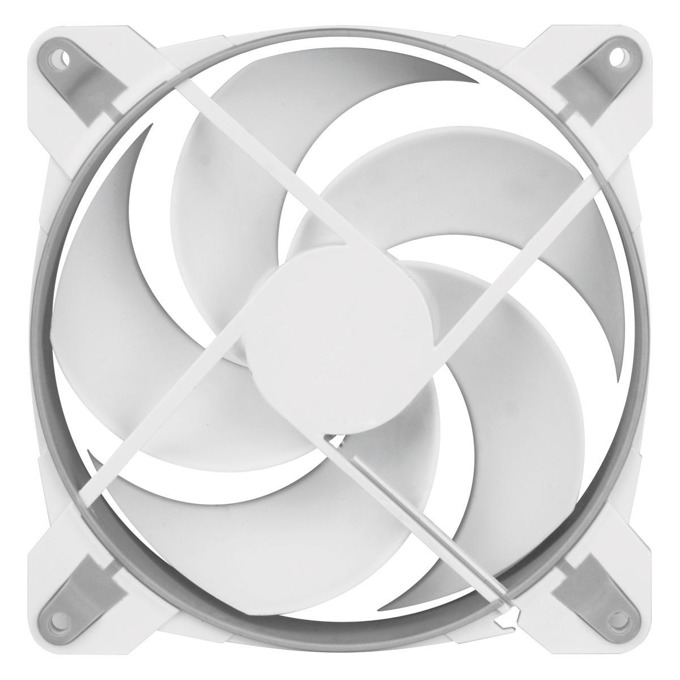

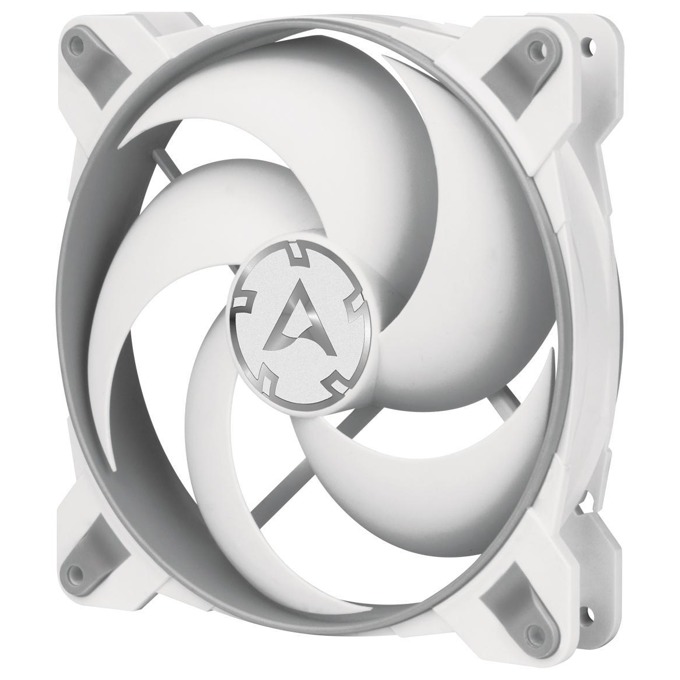

Вентилатор 140mm Arctic BioniX P140

Arctic BioniX P140 Grey/White

ACFAN00160A

Optimised for Static Pressure

During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure.

The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly

suitable for use on heatsinks and radiators.

More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the

newest generation, which allows the new BioniX P140 to run much

more efficiently than its predecessors.

This saves energy and lowers the coil temperature without compromising

the performance.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.

Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan.

The new ARCTIC motor has a four times longer service life through its

low coil temperature.

Consequently, we have extended the warranty to 10 years.

200 to 1950 RPM

regulated via PWM PST

With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Performance

Fan:

140 mm, 200 - 1.950 RPM (Controlled by PWM)

Air Flow:

77.6 CFM / 131.92 m³/h (@ 1.950 RPM)

Noise Level:

0.45 Sone (@ 1.950 RPM)

Static Pressure:

2.85 mm H2O (@ 1.950 RPM)
