Fractal Design

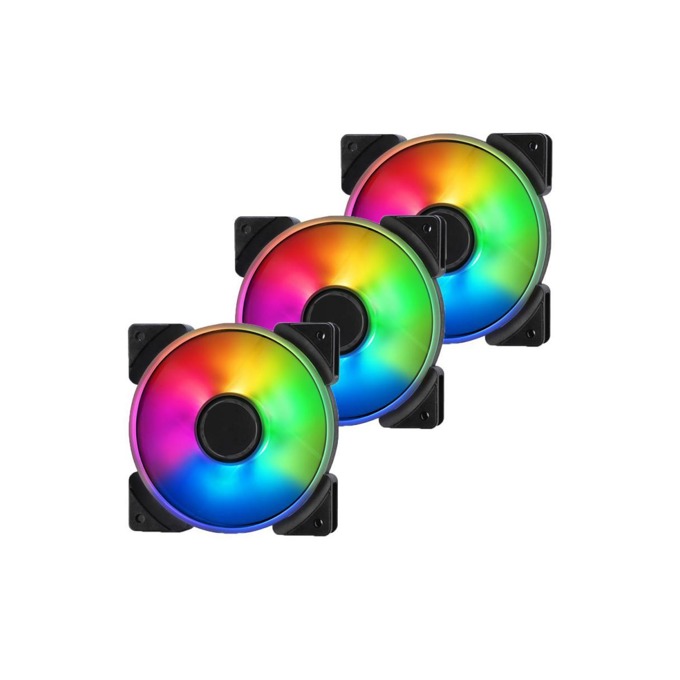

Вентилатор 120mm Fractal Design Prisma AL-12 PWM RGB (3-pack)
Артикул №: 1000046208
Категория:
Вентилатори
35,99 €
✓ Налично във външен склад
Size: 120 x 120 x 25 mm
Blade color: Semi-opaque white
Frame color: Black
LED type: Addressable RGB
Screw hole pattern: 105 x 105 mm
Power connector: 4-pin
Bearing: LLS
Number of blades: 7
Rotational speed: 500 – 2000 RPM
Noise level: 32.7 dB(A)
Airflow (CFM): 85.71 CFM
Airflow (m3/h): 145.62 m3/h
Blade color: Semi-opaque white
Frame color: Black
LED type: Addressable RGB
Screw hole pattern: 105 x 105 mm
Power connector: 4-pin
Bearing: LLS
Number of blades: 7
Rotational speed: 500 – 2000 RPM
Noise level: 32.7 dB(A)
Airflow (CFM): 85.71 CFM
Airflow (m3/h): 145.62 m3/h
Технически характеристики
| Blade color | Semi-opaque white |
| Frame color | Черен |
| LED type | Addressable RGB |
| Screw hole pattern | 105 x 105 mm |
| Power connector | 4-pin |
| Bearing | LLS |
| Number of blades | 7 |
| Rotational speed | 500 – 2000 RPM |
| Ниво на шум | 32.7 dB(A) |
| Airflow (CFM) | 85.71 CFM |
| Airflow (m3/h) | 145.62 m3/h |
| Static pressure | 2.78 mmH2O |
| Fan input power | 2.16W |
| Fan max input current | 0.18A |
| Fan input voltage | 12V |
| Fan starting voltage | 7V |
| LED input power | 1.50W |
| LED max input current | 0.30A |
| LED input voltage | 5V |
| Low (0-20%) PWM speed | 500 RPM |
| Low PWM noise level | 14.8 dB(A) |
| Low PWM airflow | 20.68 CFM |
| Low PWM static pressure | 0.36 mmH2O |
| MTBF | 100,000 hrs |
| Fan weight | 169 g |
| Package weight | 212 g |
| Дължина на кабела | 500 mm |
| Cable type | Black sleeved |
| Размери на опаковката | 182 x 122 x 30 mm |
| (Including hanging tab) | 202 x 122 x 80 mm |
| Размери на опаковката | 147 x 122 x 30 mm |
| (Excluding hanging tab) | 157 x 122 x 80 mm |
