Specifications

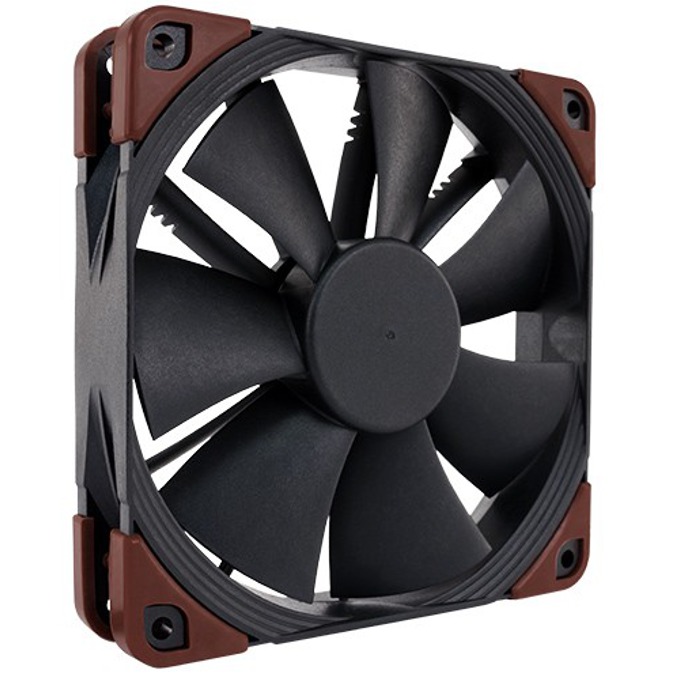

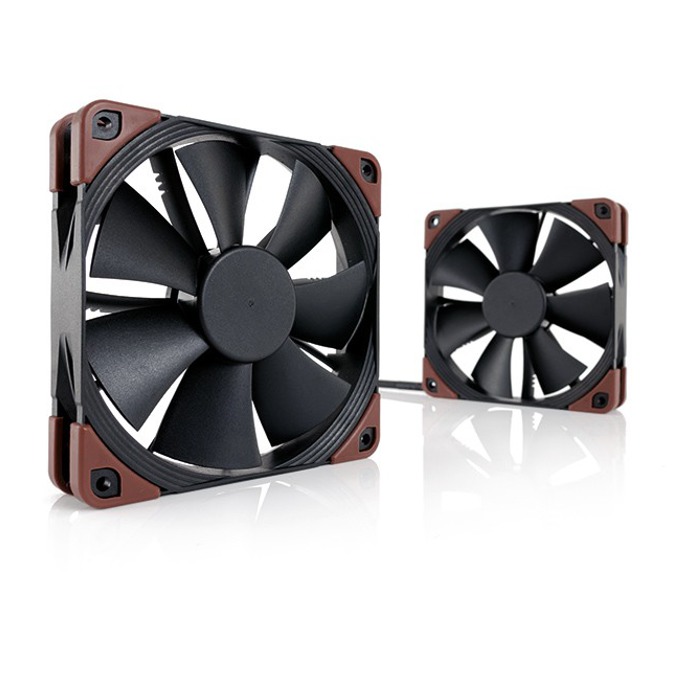

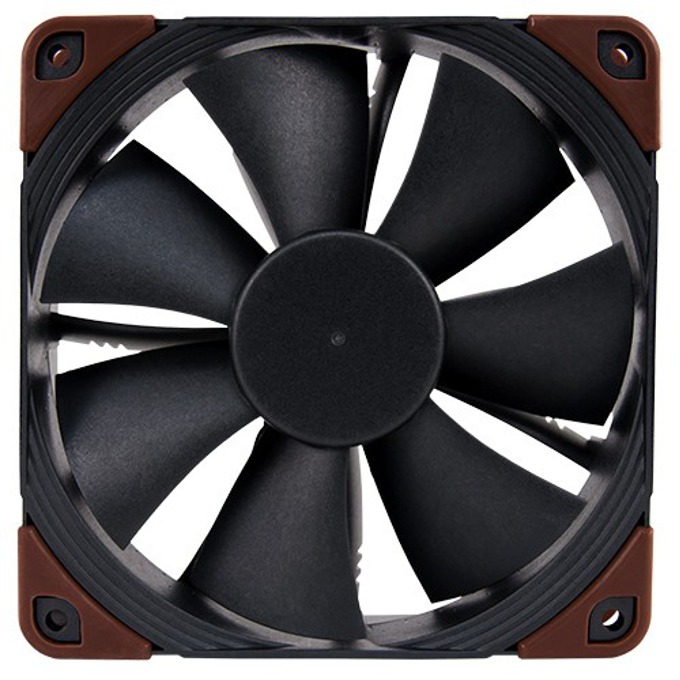

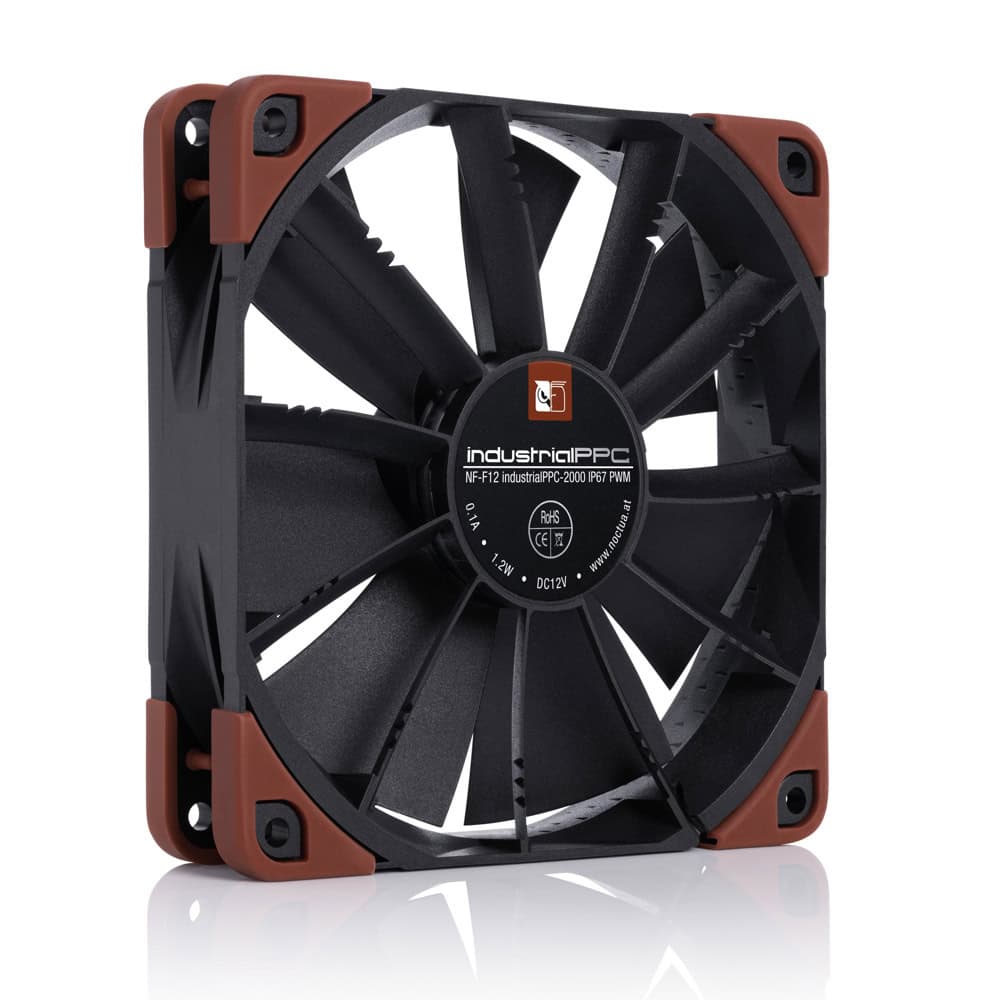

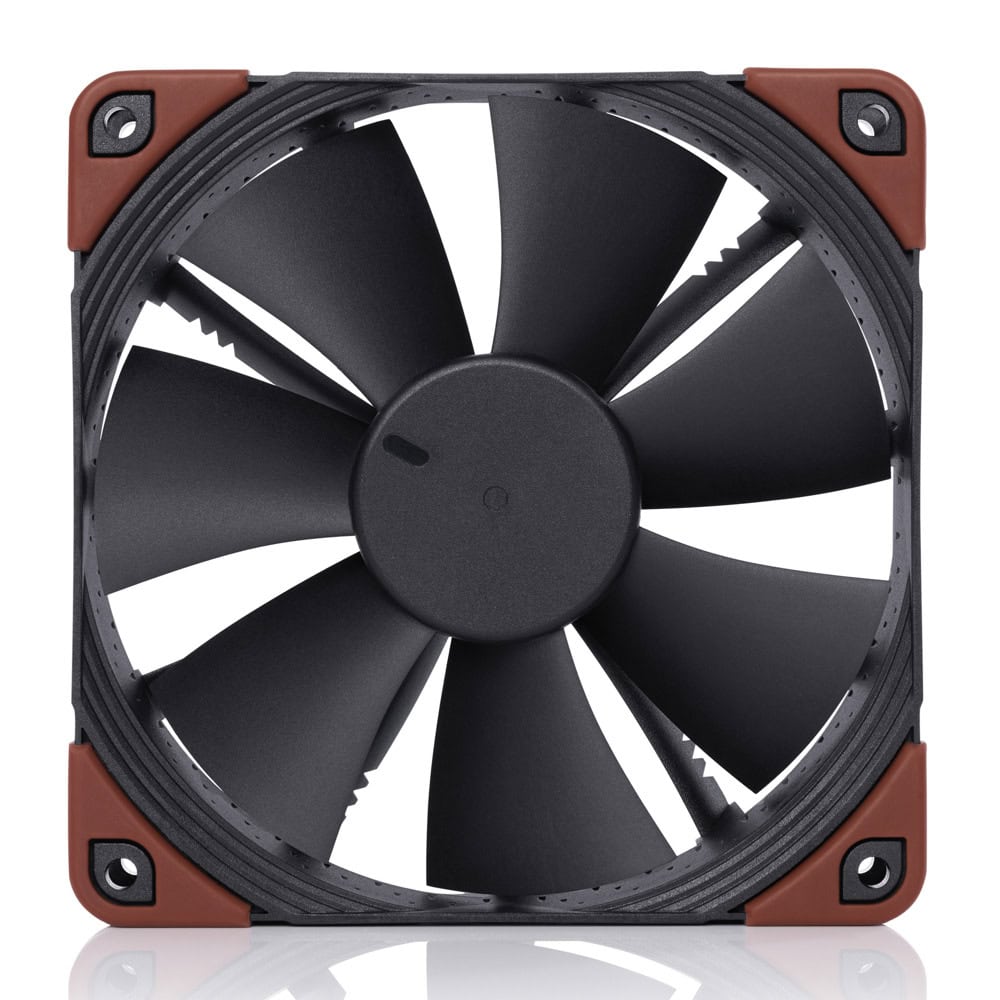

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
Size : 120x120x25 mm
Connector : 4-pin PWM
Bearing : SSO2
Blade Geometry : Heptaperf™
Frame Technology : FocusedFlow™
Rotational Speed (+/- 10%) : 2000 RPM
Min. Rotational Speed (PWM, +/-20%) : 450 RPM
Airflow : 121,8 m³/h
Acoustical Noise : 29,7 dB(A)
Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
Size : 120x120x25 mm
Connector : 4-pin PWM
Bearing : SSO2
Blade Geometry : Heptaperf™
Frame Technology : FocusedFlow™
Rotational Speed (+/- 10%) : 2000 RPM
Min. Rotational Speed (PWM, +/-20%) : 450 RPM
Airflow : 121,8 m³/h
Acoustical Noise : 29,7 dB(A)
Технически характеристики
| Размер | 120x120x25 mm |
| Конектор | 4-pin PWM |
| Bearing | SSO2 |
| Blade Geometry | Heptaperf™ |
| Frame Technology | FocusedFlow™ |
| Rotational Speed (+/- 10%) | 2000 RPM |
| Min. Rotational Speed (PWM, +/-20%) | 450 RPM |
| Airflow | 121,8 m³/h |
| Acoustical Noise | 29,7 dB(A) |
| Static Pressure | 3,94 mm H2O |
| Max. Input Power | 1,2 W |
| Max. Input Current | 0,1 A |
| Напрежение | 12 V |
| MTBF | > 150.000 h |
| Fan | 4 Fan Screws |
| Ingress Protection | IP67 |
| Материал | Fibre-glass reinforced polyamide |
| Motor type | Three-phase |
