Noctua
Вентилатор 120mm
Артикул №: 1000022647
Категория:
Вентилатори
31,99 €
✓ Налично във външен склад

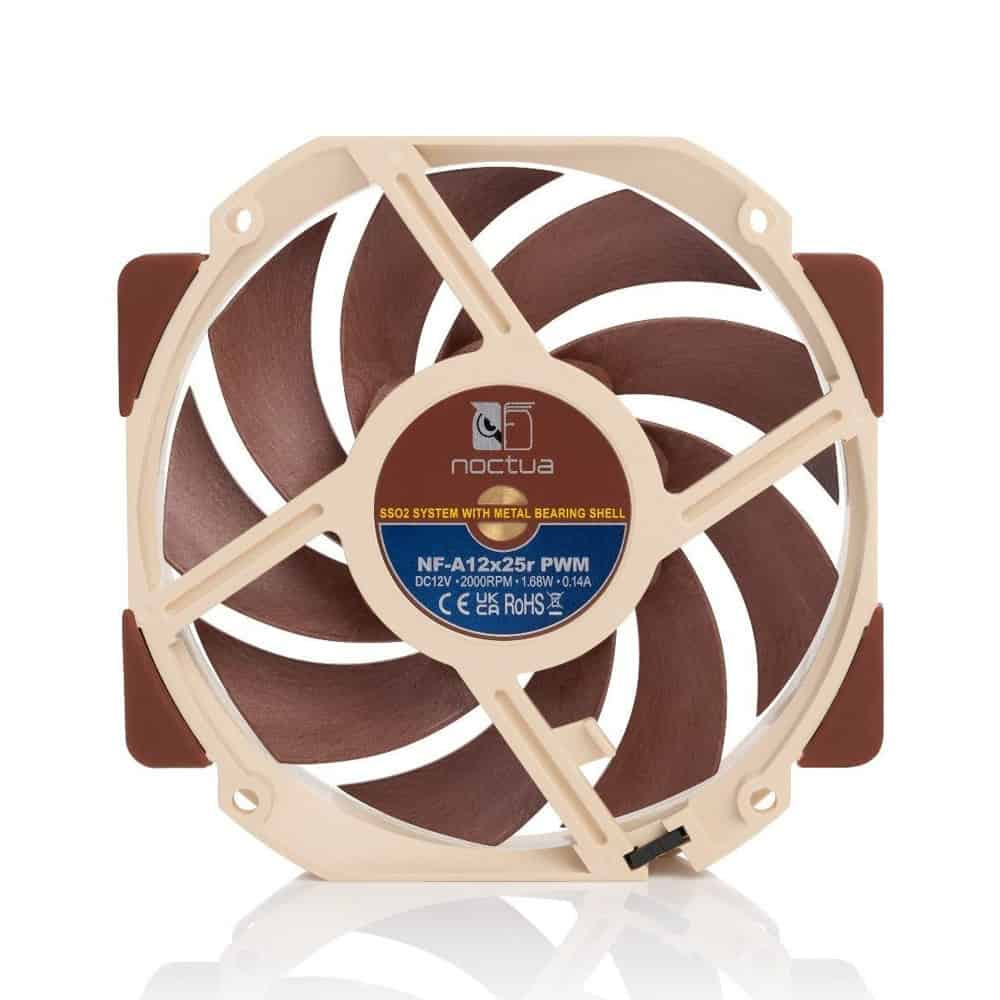

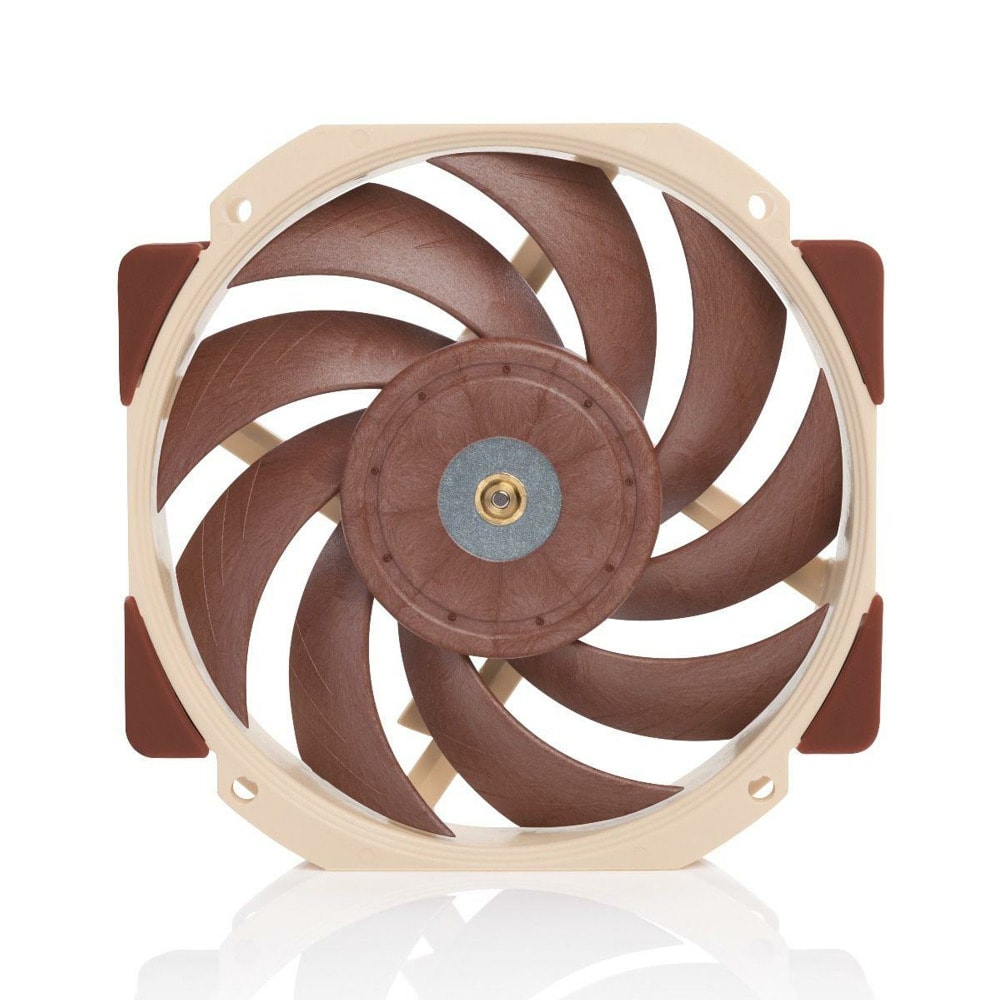

Noctua NF-A12x25R-PWM
FAN Specification
Size: 120x120x25 mm
Mounting hole spacing: 93x83 mm
Connector & pin-configuration: 4-pin PWM
Cable length: 20cm + 30cm NA-EC1 extension cable
Bearing: SSO2
Blade geometry: A-Series with Flow Acceleration Channels
Frame technology: AAO (Advanced Acoustic Optimisation)
Material Sterrox®: LCP
Rotational speed (+/- 10%): 2000 RPM
Rotational speed with L.N.A. (+/- 10%): 1700 RPM
Min. rotational speed @ 20% PWM (+/-20%): 450 RPM
Airflow : 102,1 m³/h
Airflow with L.N.A.: 84,5 m³/h
Acoustical noise: 22,6 dB(A)
Acoustical noise with L.N.A.: 18,8 dB(A)
Static pressure: 2,34 mm H₂O
Static pressure with L.N.A. 1,65 mm H₂O
Max. input power: 1,68 W
Max. input current: 0,14 A
Operating voltage: 12 V
Voltage PWM signal: 5 V
MTTF >: 150.000 h

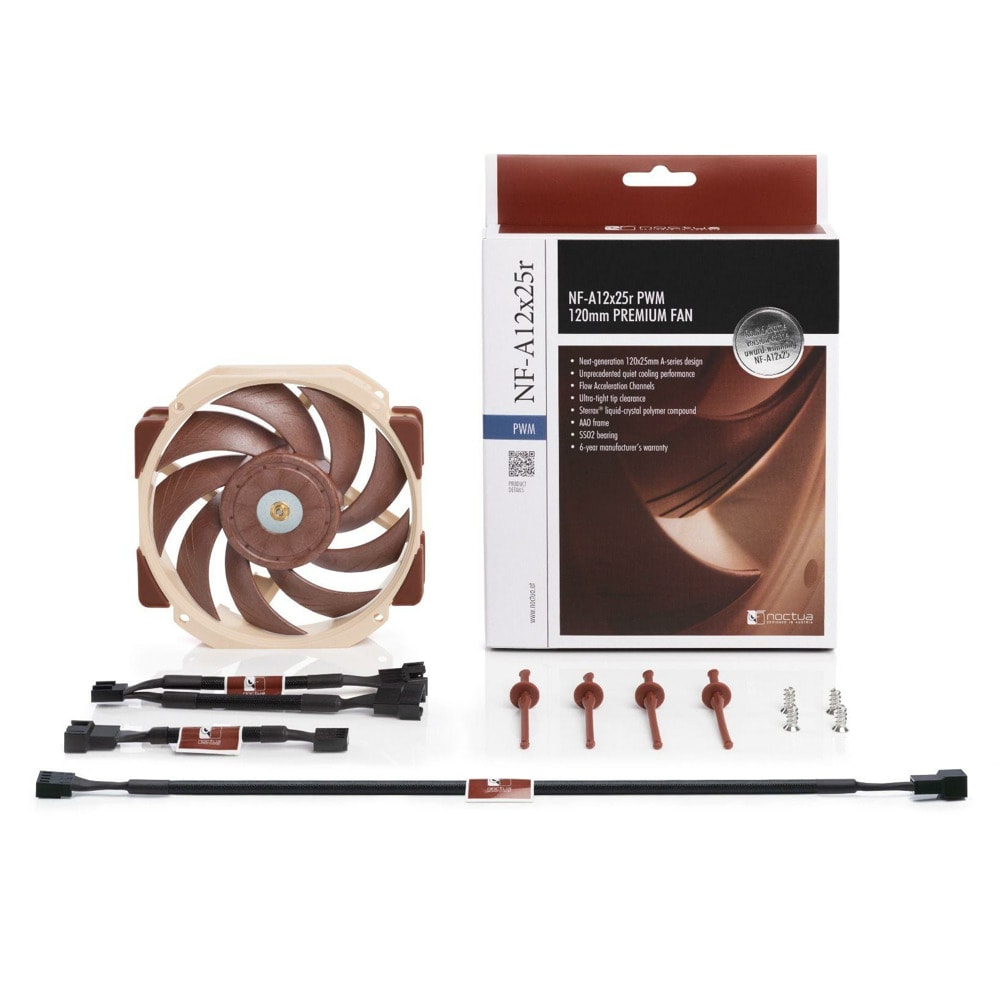

Scope of delivery
NA-RC14 Low-Noise Adaptor (L.N.A)
NA-YC1 4-pin PWM y-cable
NA-EC1 30cm extension cable
4x NA-AV2 anti-vibration mounts
Fan screws
FAN Specification
Size: 120x120x25 mm
Mounting hole spacing: 93x83 mm
Connector & pin-configuration: 4-pin PWM
Cable length: 20cm + 30cm NA-EC1 extension cable
Bearing: SSO2
Blade geometry: A-Series with Flow Acceleration Channels
Frame technology: AAO (Advanced Acoustic Optimisation)
Material Sterrox®: LCP
Rotational speed (+/- 10%): 2000 RPM
Rotational speed with L.N.A. (+/- 10%): 1700 RPM
Min. rotational speed @ 20% PWM (+/-20%): 450 RPM
Airflow : 102,1 m³/h
Airflow with L.N.A.: 84,5 m³/h
Acoustical noise: 22,6 dB(A)
Acoustical noise with L.N.A.: 18,8 dB(A)
Static pressure: 2,34 mm H₂O
Static pressure with L.N.A. 1,65 mm H₂O
Max. input power: 1,68 W
Max. input current: 0,14 A
Operating voltage: 12 V
Voltage PWM signal: 5 V
MTTF >: 150.000 h
Scope of delivery
NA-RC14 Low-Noise Adaptor (L.N.A)
NA-YC1 4-pin PWM y-cable
NA-EC1 30cm extension cable
4x NA-AV2 anti-vibration mounts
Fan screws
Технически характеристики
| Размер | 120x120x25 mm |
| Mounting hole spacing | 93x83 mm |
| Connector & pin-configuration | 4-pin PWM |
| Дължина на кабела | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Material Sterrox® | LCP |
| Rotational speed (+/- 10%) | 2000 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1700 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 450 RPM |
| Airflow | 102,1 m³/h |
| Airflow with L.N.A. | 84,5 m³/h |
| Acoustical noise | 22,6 dB(A) |
| Acoustical noise with L.N.A. | 18,8 dB(A) |
| Static pressure | 2,34 mm H₂O |
| Max. input power | 1,68 W |
| Max. input current | 0,14 A |
| Operating voltage | 12 V |
| Voltage PWM signal | 5 V |
| MTTF > | 150.000 h |
