Noctua
Вентилатор 120mm
Артикул №: 1000044406
Категория:
Вентилатори
22,99 €
✓ Налично във външен склад

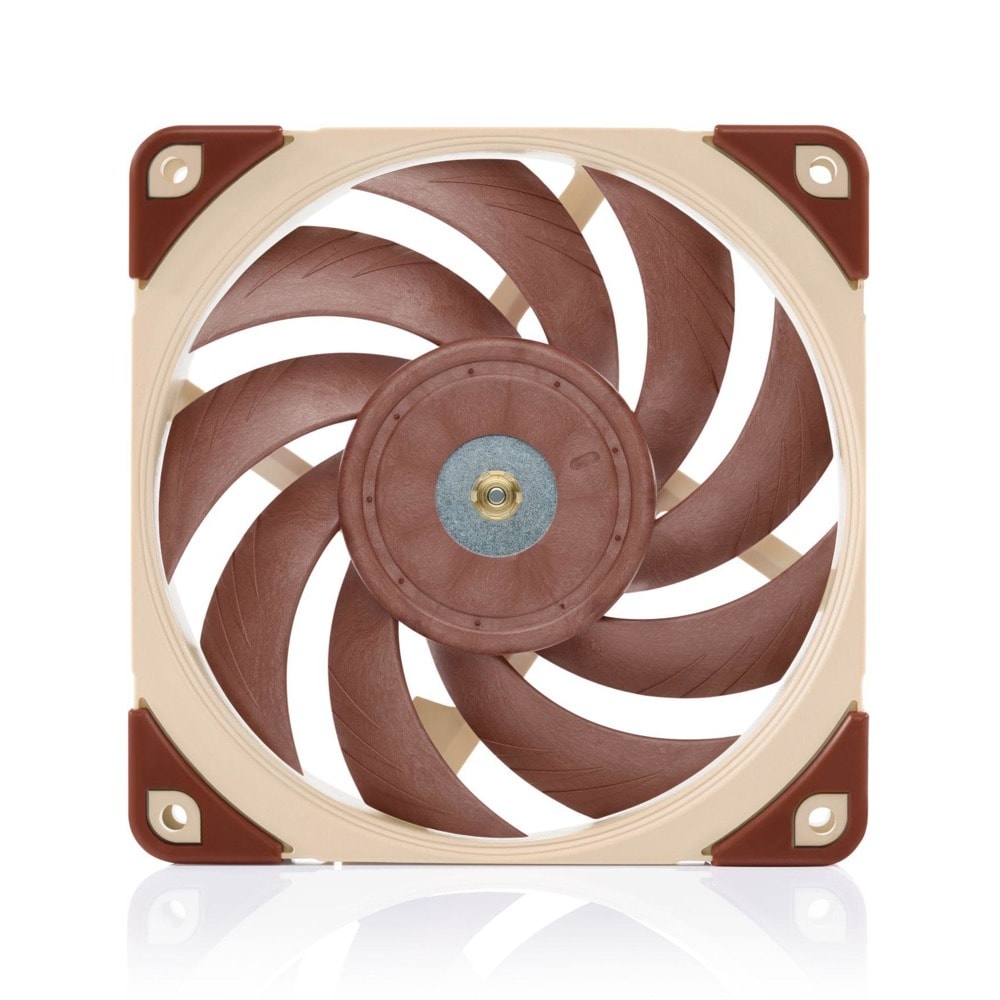

Noctua NF-A12x15 1850 rpm
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A12x15 is a highly optimised, premium quality quiet fan in size 120x15mm. Its 15mm slim design makes the NF-A12x15 ideal for space-restricted applications such as low-profile CPU coolers or HTPC cases. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed during PWM control from 1850 to 1400rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
Характеристики
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Дължина на кабела | 20cm + 30cm NA-EC1 extension cable |
| Rotational speed (+/- | 10%) 1850 RPM |
| Rotational speed with L.N.A. (+/- | 10%) 1400 RPM |
| Min. rotational speed (PWM, +/-20%) | 450 RPM |
| Airflow | 94,2 m³/h |
| Airflow with L.N.A. | 70,8 m³/h |
| Acoustical noise | 23,9 dB(A) |
| Acoustical noise with L.N.A. | 16,8 dB(A) |
| Static pressure | 1,53 mm H₂O |
| Static pressure with L.N.A. | 0,9 mm H₂O |
| Max. input power | 1,56 W |
| Max. input current | 0,13 A |
| Operating voltage | 12 V |
| Voltage PWM signal | 5 V |
| MTTF > | 150.000 h |
