Noctua
Вентилатор 120mm
Артикул №: 1000044274
Категория:
Вентилатори
22,99 €
✓ Налично във външен склад

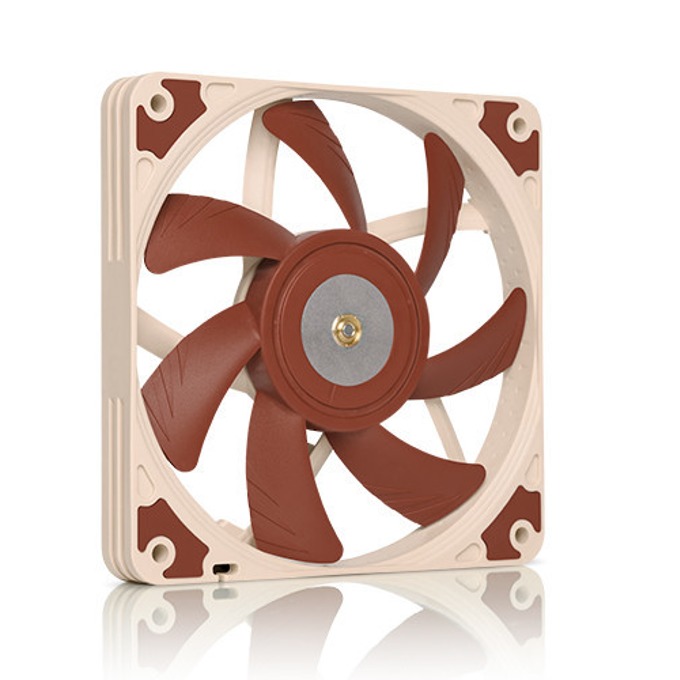

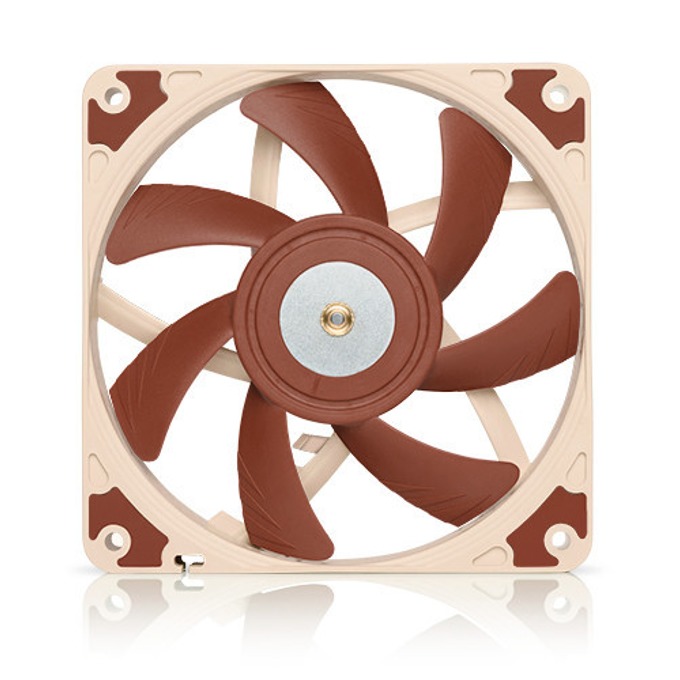

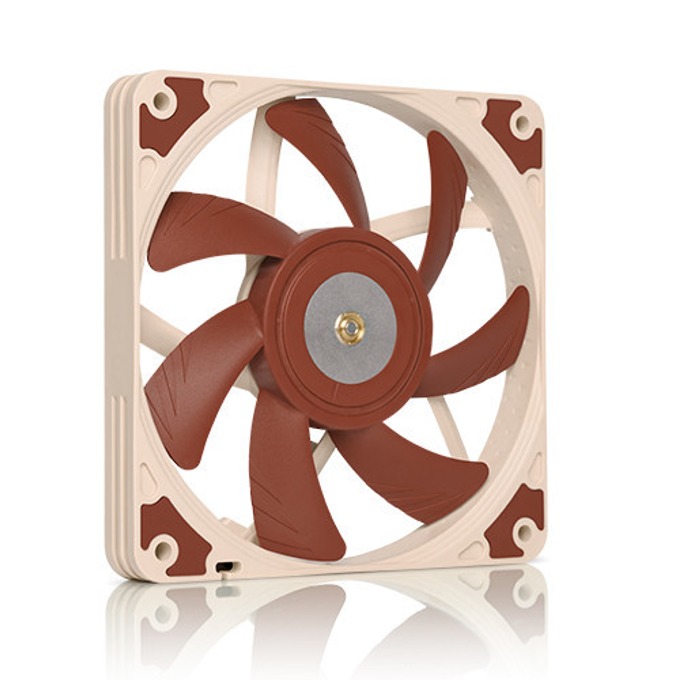

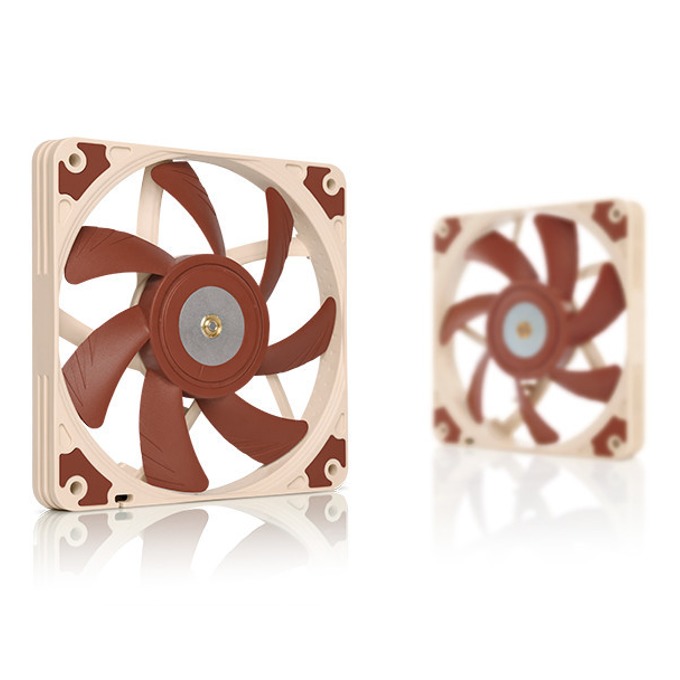

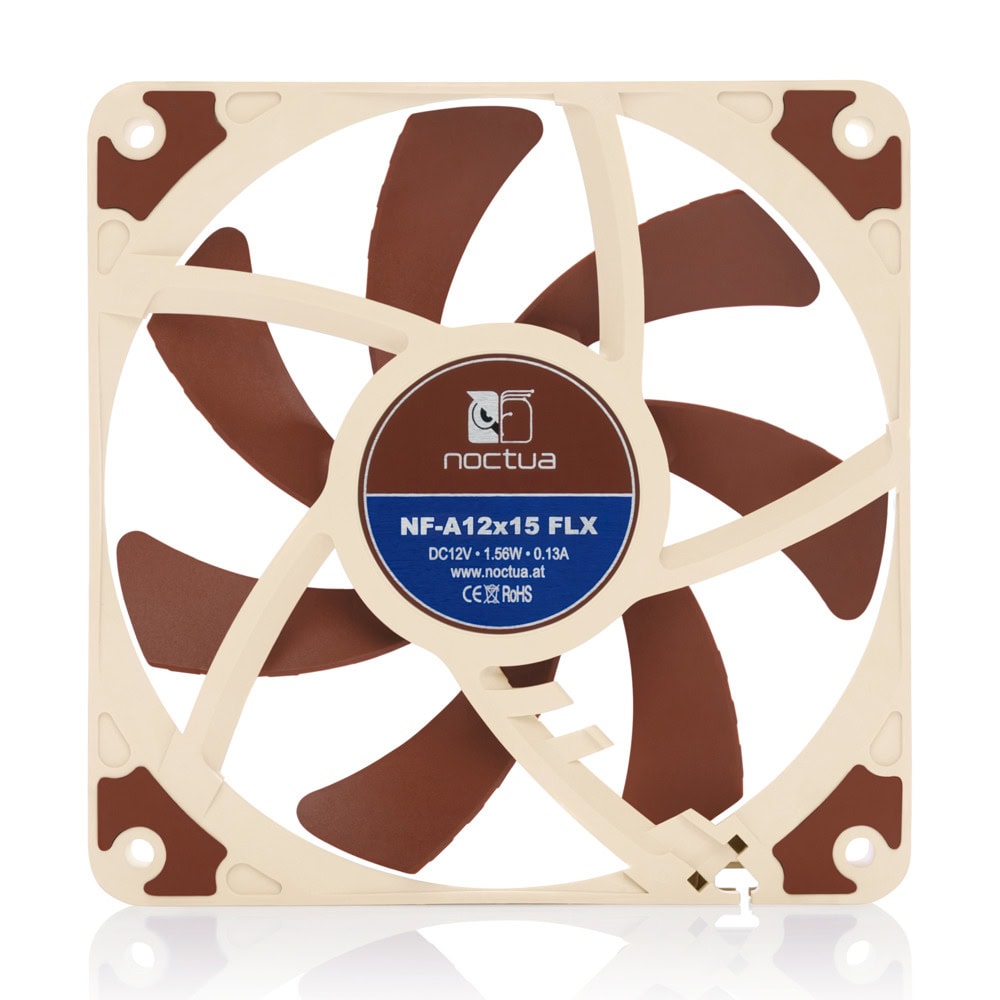

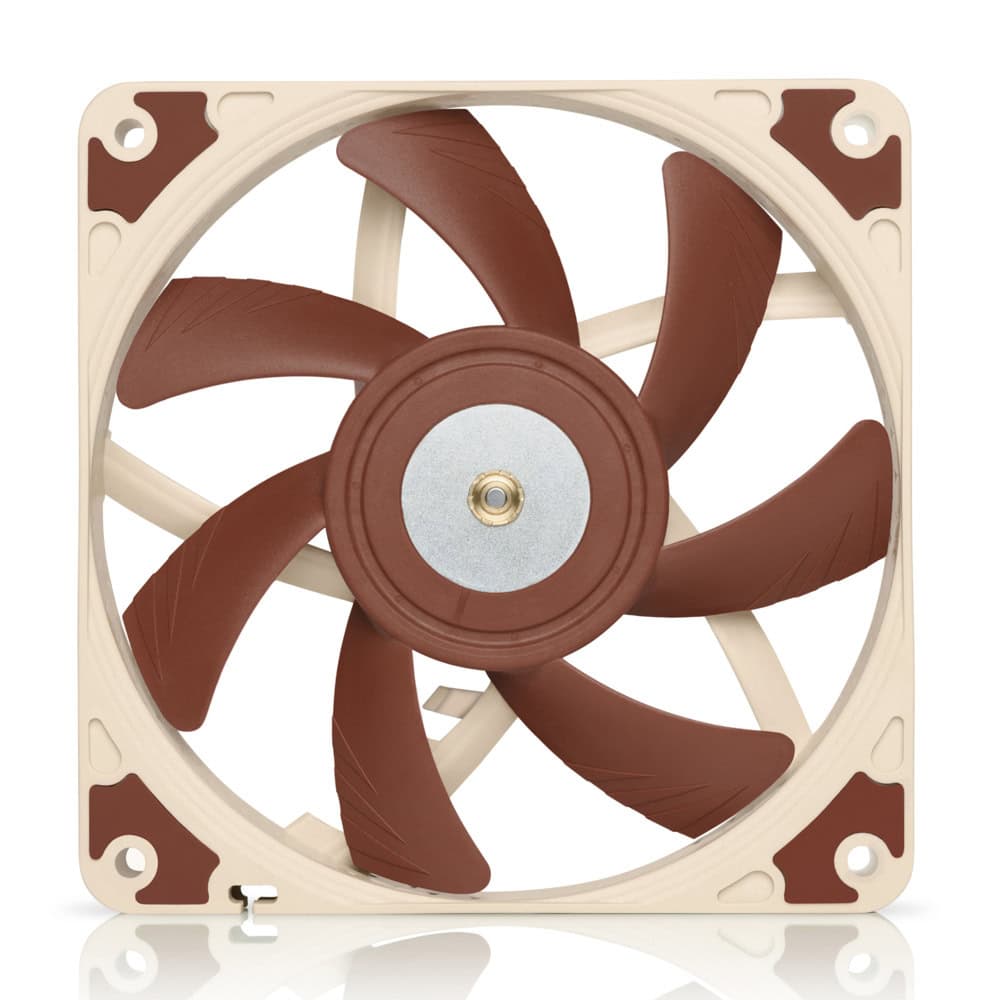

120x120x15mm NF-A12x15-FLX
FAN Specification
Size:
120x120x15 mm.
Mounting hole spacing:
105x105 mm.
Connector:
3-Pin
Bearing:
SSO2
Blade Geometry:
A-Series with Flow Acceleration Channels
Frame Technology:
AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%):
1850 RPM
Rotational Speed with L.N.A.:
(+/- 10%) 1400 RPM
Rotational Speed with U.L.N.A.:
(+/- 10%) 950 RPM
Airflow:
94,2 m³/h
Airflow with L.N.A.:
70,8 m³/h
Airflow with U.L.N.A.:
46,5 m³/h
Acoustical Noise:
23,9 dB(A)
Acoustical Noise with L.N.A.:
16,8 dB(A)
Acoustical Noise with U.L.N.A.:
10,2 dB(A)
Static Pressure:
1,53 mm. H₂O
Static Pressure with L.N.A.:
0,9 mm. H₂O
Static Pressure with U.L.N.A.:
0,45 mm. H₂O
Max. Input Power:
1,56 W
Max. Input Current:
0,13 A
Voltage:
12 V
MTTF:
> 150.000 h
FAN Specification
Size:
120x120x15 mm.
Mounting hole spacing:
105x105 mm.
Connector:
3-Pin
Bearing:
SSO2
Blade Geometry:
A-Series with Flow Acceleration Channels
Frame Technology:
AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%):
1850 RPM
Rotational Speed with L.N.A.:
(+/- 10%) 1400 RPM
Rotational Speed with U.L.N.A.:
(+/- 10%) 950 RPM
Airflow:
94,2 m³/h
Airflow with L.N.A.:
70,8 m³/h
Airflow with U.L.N.A.:
46,5 m³/h
Acoustical Noise:
23,9 dB(A)
Acoustical Noise with L.N.A.:
16,8 dB(A)
Acoustical Noise with U.L.N.A.:
10,2 dB(A)
Static Pressure:
1,53 mm. H₂O
Static Pressure with L.N.A.:
0,9 mm. H₂O
Static Pressure with U.L.N.A.:
0,45 mm. H₂O
Max. Input Power:
1,56 W
Max. Input Current:
0,13 A
Voltage:
12 V
MTTF:
> 150.000 h
Характеристики
| 1850 RPM | Rotational Speed with L.N.A.: |
| 10%) 1400 RPM | Rotational Speed with U.L.N.A.: |
| 10%) 950 RPM | Airflow: |
| 94,2 m³/h | Airflow with L.N.A.: |
| 70,8 m³/h | Airflow with U.L.N.A.: |
| 46,5 m³/h | Acoustical Noise: |
| 23,9 dB(A) | Acoustical Noise with L.N.A.: |
| 16,8 dB(A) | Acoustical Noise with U.L.N.A.: |
| 10,2 dB(A) | Static Pressure: |
| 1,53 mm. H₂O | Static Pressure with L.N.A.: |
| 0,9 mm. H₂O | Static Pressure with U.L.N.A.: |
| 0,45 mm. H₂O | Max. Input Power: |
| 1,56 W | Max. Input Current: |
| 0,13 A | Напрежение |
| 12 V | MTTF: |
