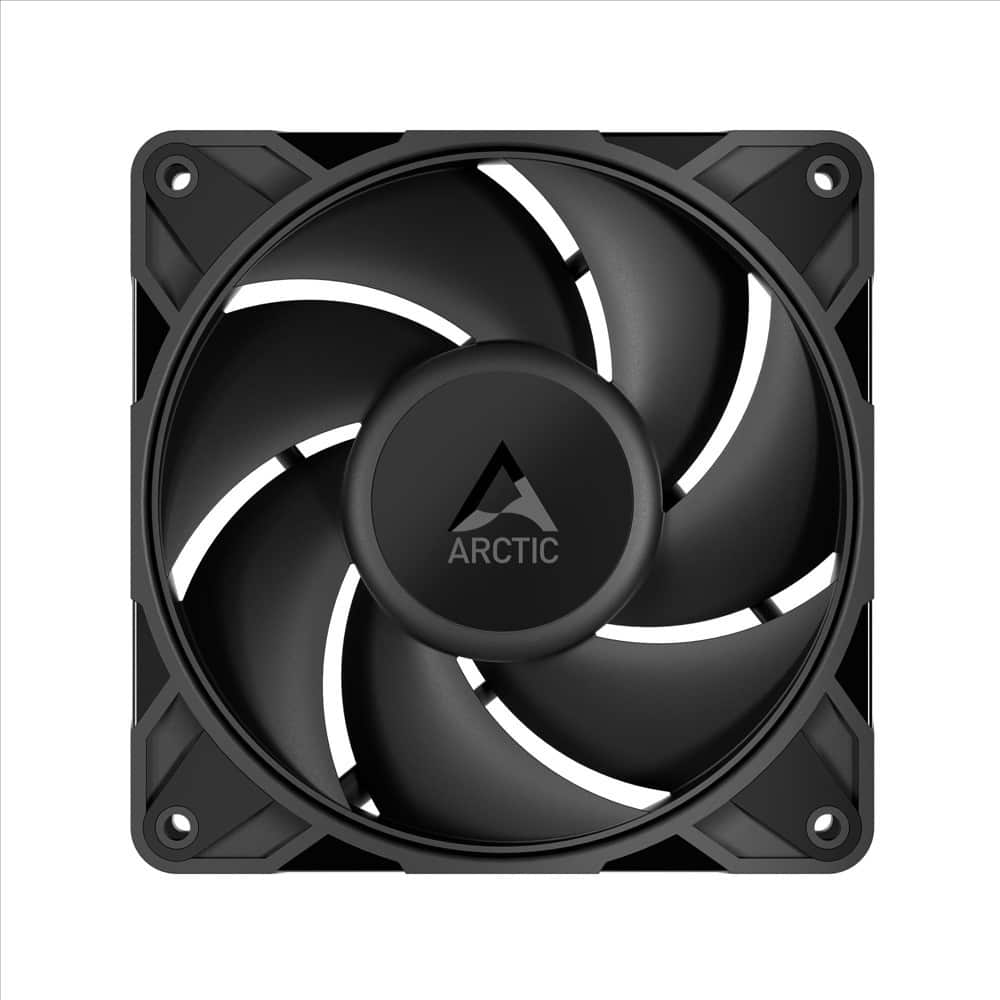

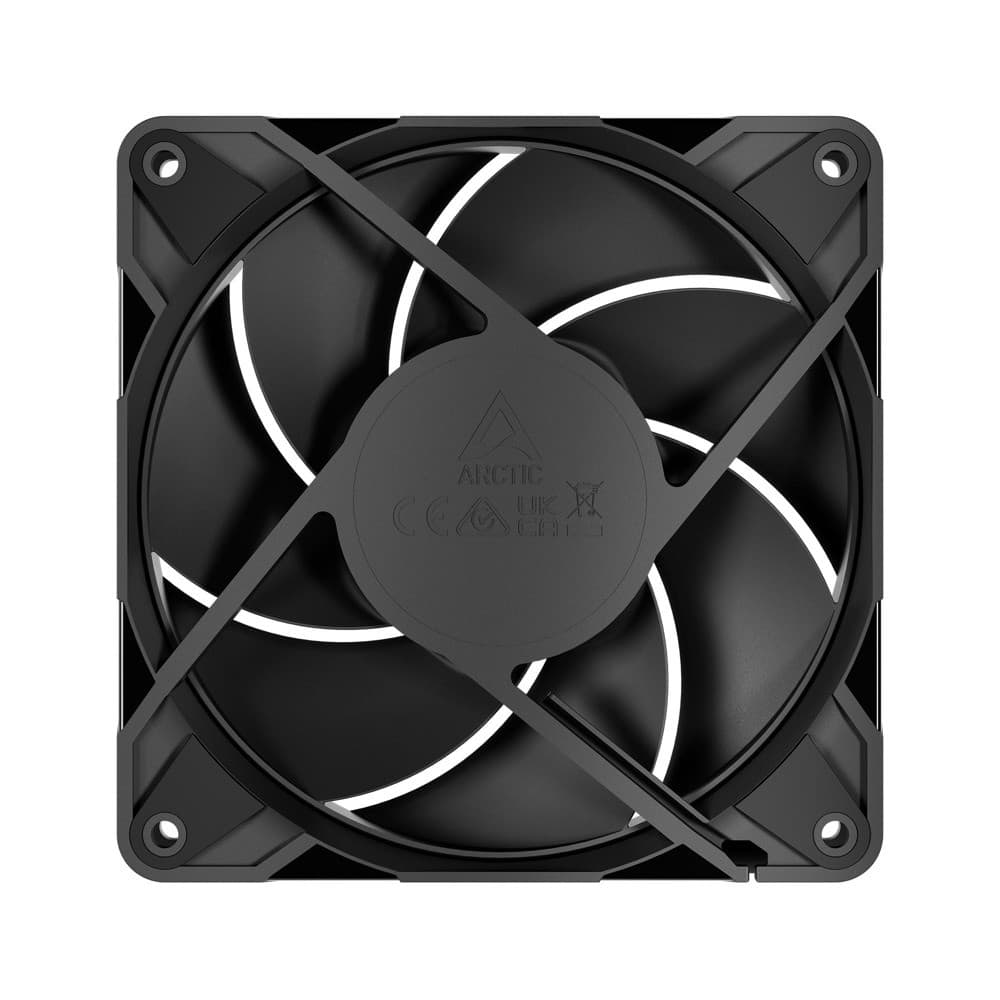

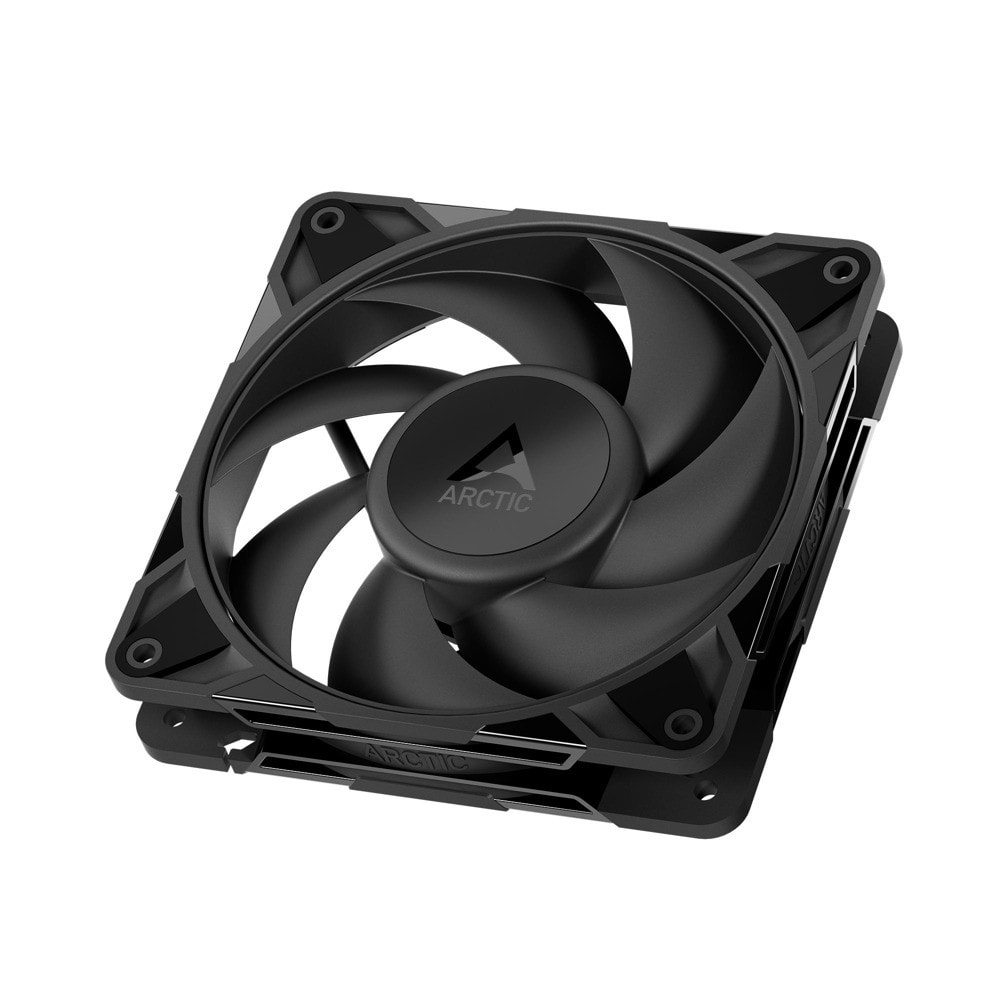

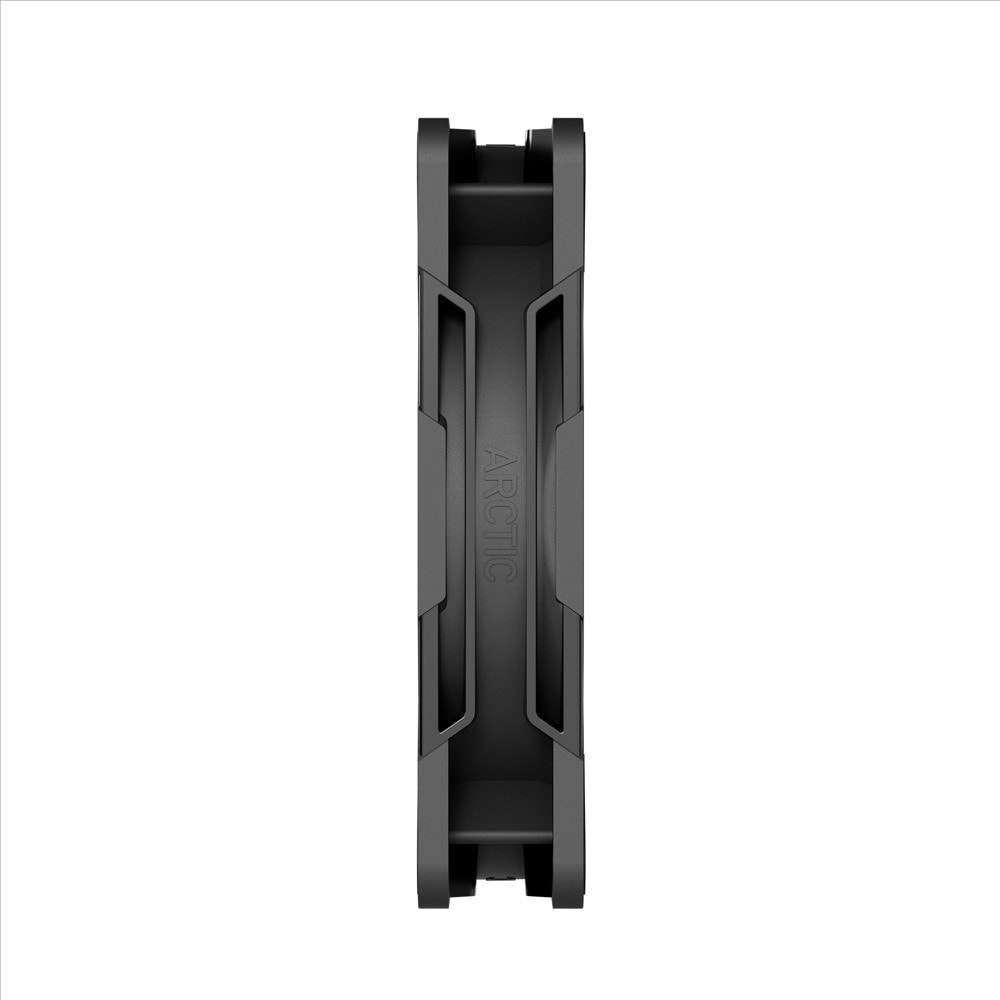

Arctic P12 Pro Reverse
Optimized Airflow Design
The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses.
This reduces air resistance, minimising turbulence and aerodynamic noise.
SOTA MicrocontrollerReduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.More Power – Less NoiseAn automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.Minimum Gap Dimensions for Maximum EfficiencyEnables higher static pressure and maximum airflow efficiency.
PST – Easy Cable Management and Synchronized PWM ControlThanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.Optimized FDB Bearing-Shaft DesignA hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Характеристики
| 0–40 °C | Да |
| Размери | Да |
| 120 (L) x 120 (W) | x 27 (H) mm |
| Нето тегло | Да |
| 172 g | Да |
| Fan Specifications | Да |
| Fan Speed | Да |
| 500–3000 rpm, PWM controlled | Да |
| Rpm below 5 % PWM | 0 |
| Airflow | Да |
| Cfm | 124 m³/h | 73 |
| Static Pressure | Да |
| MmH2O | 4.5 |
| Fan Bearing | Да |
| Fluid Dynamic Bearing | Да |
| Typical Voltage | Да |
| V DC | 12 |
| Start Up Voltage | Да |
| V DC | 3.5 |
| Ток | Да |
| 0.4 A | Да |
| Дължина на кабела | Да |
| Mm + 80 mm Daisy-Chain Cable | 400 |
| Конектор | Да |
| 4-Pin Fan Plug + 4-Pin Socket | Да |
