A-Data
Вентилатор 120mm
Артикул №: 1000036434
Категория:
Вентилатори
13,99 €
✓ Налично във външен склад
EFFICIENT COOLING PERFORMANCE

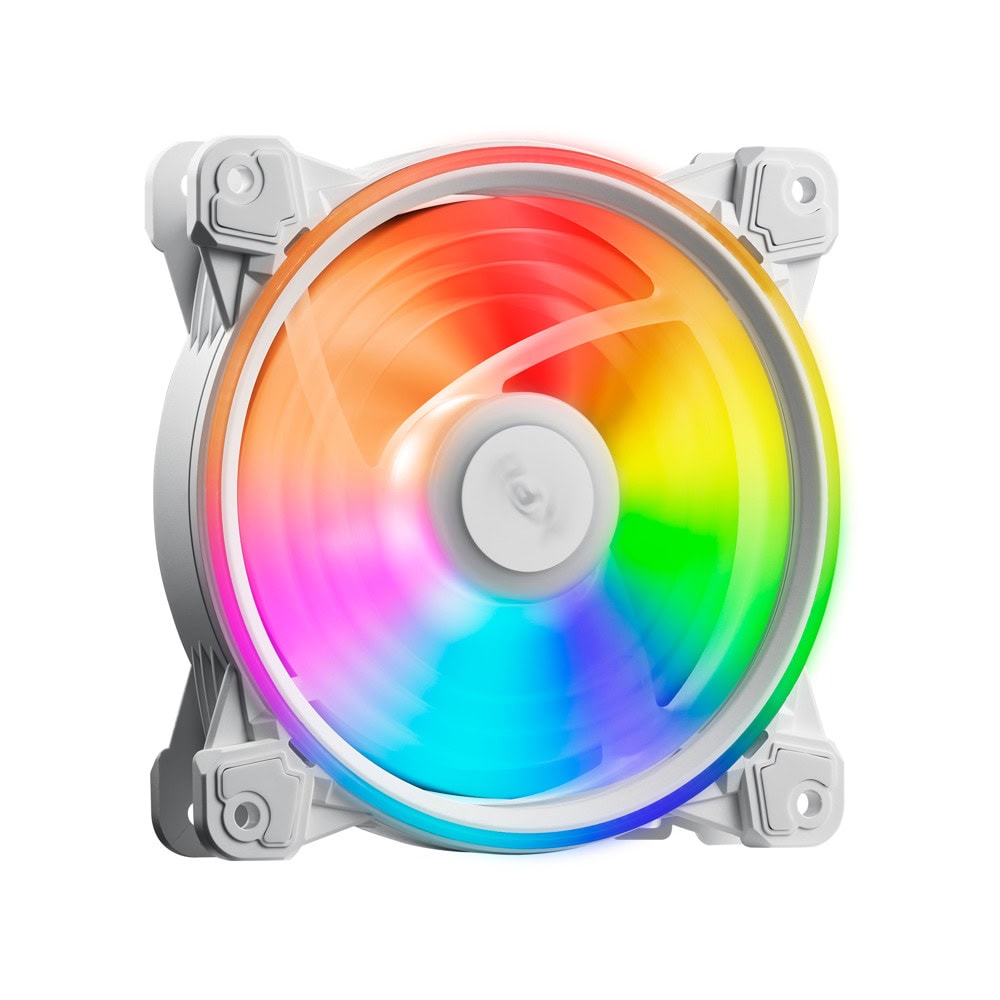

XPG HURRICANE 120 ARGB PWM fan offers more than just mesmerizing dual-ring lighting effects. The fan speed runs up to 2,000 RPM, generating up to 61.5 CFM of cool air with 1.42 mmAq of static pressure.

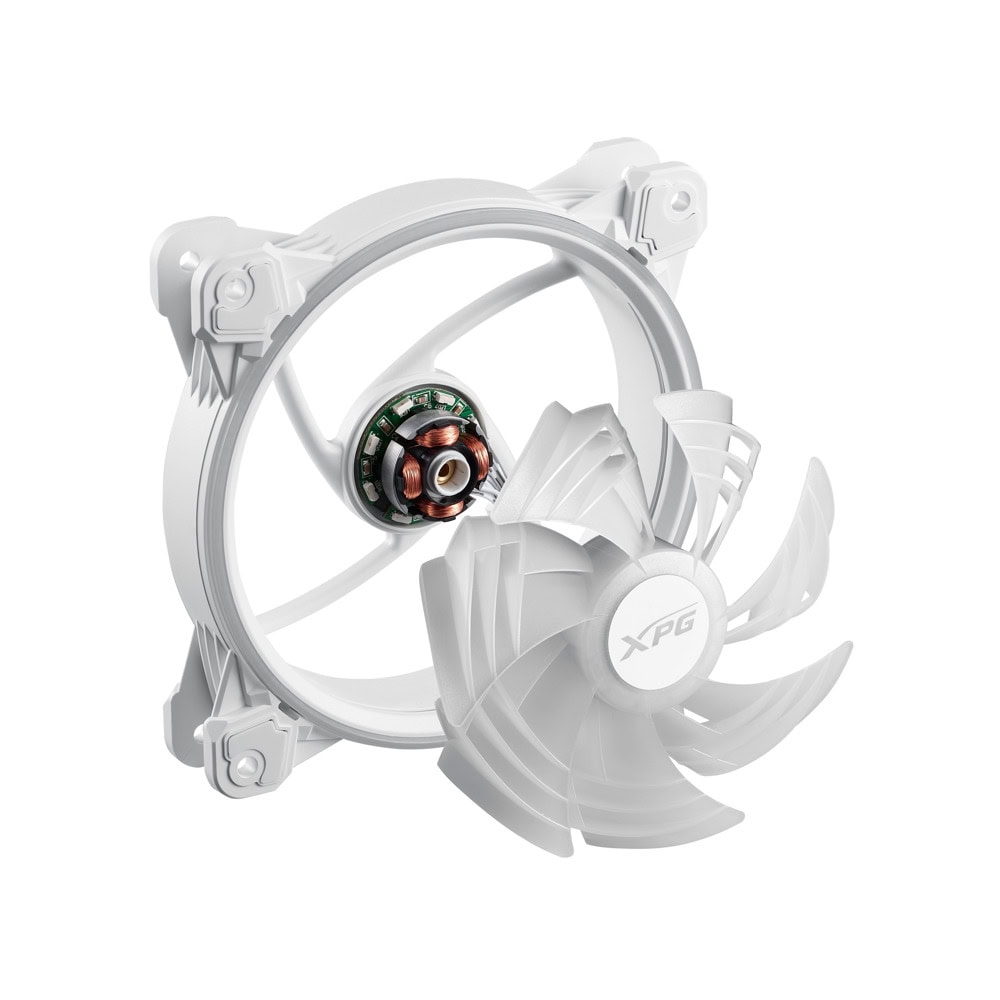

FLUID DYNAMIC BEARING (FDB)
The fluid lubricates between the bearings and shaft when the shaft rotates, offers smoother operation, hence lower noise, better cooling efficiency, lower power consumption, and longer fan life expectancy.
PATENTED FAN BLADE DESIGN
Innovative dual-layer fan blade design is comprised of the Main Blade and the Booster Blade. Both function simultaneously to enhance airflow and static pressure, while minimizing wind resistance hence less noise during operation.
Specifications
Dimensions
120 x 120 x 25mm
Bearing Type
Fluid Dynamic Bearing
Connector
4-Pin
Speed (RPM)
600 ~ 2000 RPM ± 10%
Fan Max Air Flow (CFM)
61.5 CFM ±10%
Fan Max Static Pressure (mmH2O)
1.42mm H2O ±10%
Fan Noise Level (dBA)
18.17 dBA(avg.)
Fan Rated Voltage
DC 12V
Fan Starting Voltage
DC 3.5V
Fan Operating Voltage
DC 3.5V～12.6V
Fan Rated Current
0.2A (Max)
Fan Power Dissipation
2.4W
Fan Protection
Auto-Restart
MTTF
230,000 Hours
Cable Length
610mm ± 10% with Daisy-Chain Capable
Remark
*Data may vary due to differences in testing equipment and environment, with ±10% tolerance.
XPG HURRICANE 120 ARGB PWM fan offers more than just mesmerizing dual-ring lighting effects. The fan speed runs up to 2,000 RPM, generating up to 61.5 CFM of cool air with 1.42 mmAq of static pressure.
FLUID DYNAMIC BEARING (FDB)
The fluid lubricates between the bearings and shaft when the shaft rotates, offers smoother operation, hence lower noise, better cooling efficiency, lower power consumption, and longer fan life expectancy.
PATENTED FAN BLADE DESIGN
Innovative dual-layer fan blade design is comprised of the Main Blade and the Booster Blade. Both function simultaneously to enhance airflow and static pressure, while minimizing wind resistance hence less noise during operation.
Specifications
Dimensions
120 x 120 x 25mm
Bearing Type
Fluid Dynamic Bearing
Connector
4-Pin
Speed (RPM)
600 ~ 2000 RPM ± 10%
Fan Max Air Flow (CFM)
61.5 CFM ±10%
Fan Max Static Pressure (mmH2O)
1.42mm H2O ±10%
Fan Noise Level (dBA)
18.17 dBA(avg.)
Fan Rated Voltage
DC 12V
Fan Starting Voltage
DC 3.5V
Fan Operating Voltage
DC 3.5V～12.6V
Fan Rated Current
0.2A (Max)
Fan Power Dissipation
2.4W
Fan Protection
Auto-Restart
MTTF
230,000 Hours
Cable Length
610mm ± 10% with Daisy-Chain Capable
Remark
*Data may vary due to differences in testing equipment and environment, with ±10% tolerance.
