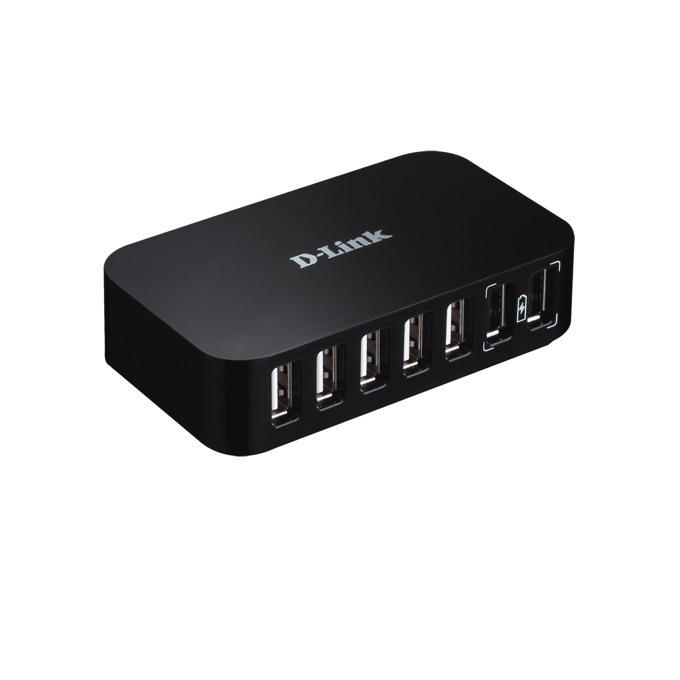

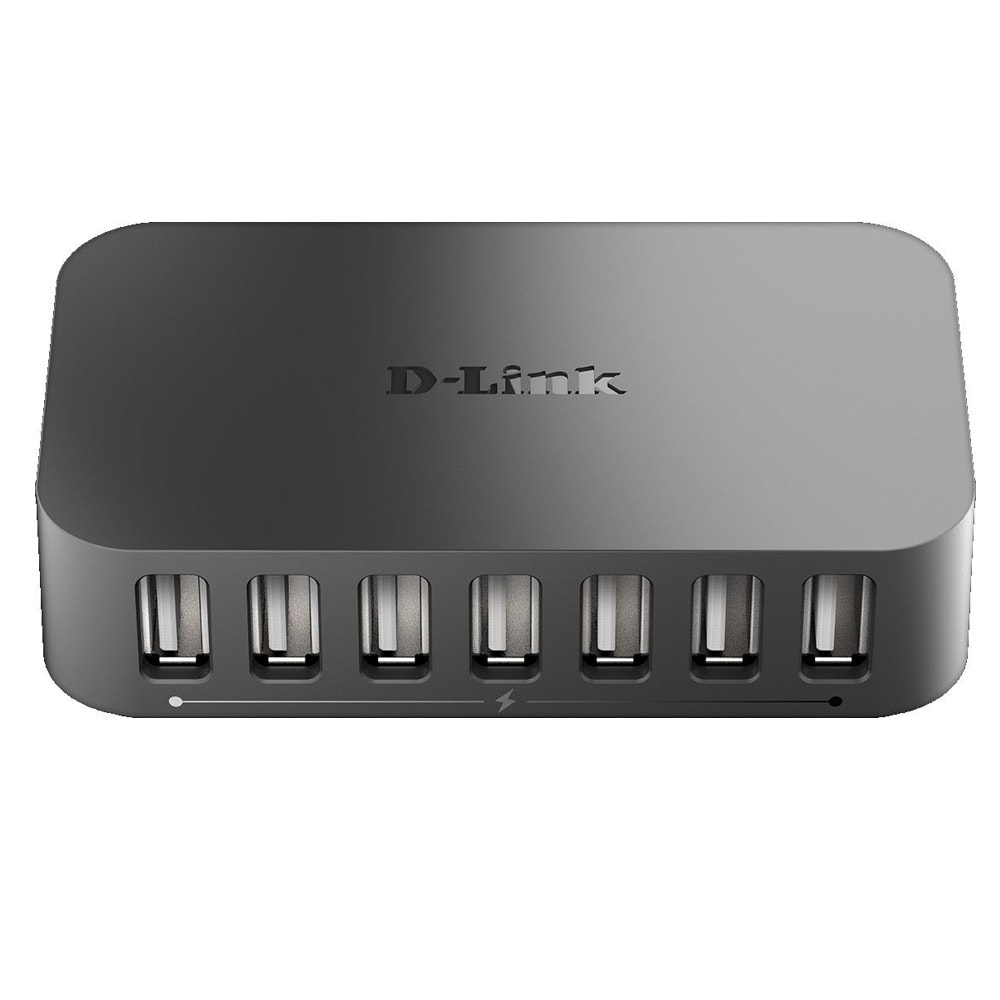

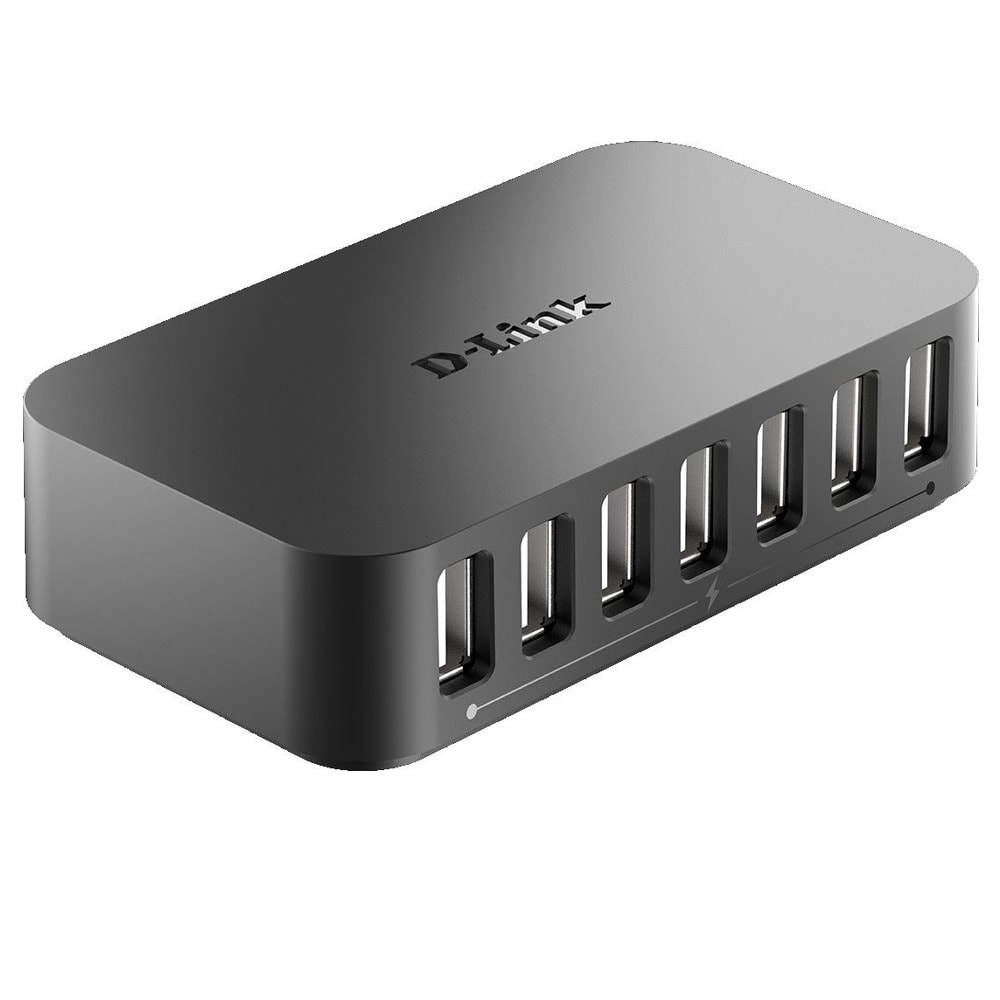

USB Хъб D-Link DUB-H7

D-Link DUB-H7/E

Standards:

USB specification version 2.0 (datarates of up to 480 Mbps)
USB specification version 1.1 (datarates of up to 12 Mbps)
OHCI
UHIC
EHCI

Interfaces:

7 downstream USB Type A (female) ports (including 2 Fast Charge ports)
Upstream USB Type B (female) port

Connectivity Rules:

Up to 127 devices
Up to five cascaded hubs
Maximum cable length between each hub: 5 m

Minimum System Requirements:

Windows 7 / Vista / XP
Mac OS 9.0 or above
Linux

Diagnostic LEDs:

Standard Mode (blue)
Fast Charge Mode (green)
Supplied Charging Current1

Standard Mode:

0.5 A on all seven front ports
Fast Charge Mode:
0.5 A on all five white ports
1.2 A on both black ports

Power Input:

5 V / 3 A DC
General Specifications

Temperature:

Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 70 °C (-4 to 158 °F)

Humidity:

Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Dimensions (L x W x H)
100 x 57 x 23 mm (3.94 x 2.2 x 0.9 inches)

Weight:

85 g (0.19 lbs)

Certifications:

FCC
CE
C-Tick
VCCI
IC
RoHS
