UPS Power Walker VFI 1000 CG PF1

Артикул №: 1000013513

Категория: UPS

376,99 €

✓ Налично във външен склад

Power Walker VFI 1000 CG PF1
10122108

Online technology with Power Factor 1.0
Strong charger with adjustable current
Wide input voltage range for all environments and support for AC generator
Support for laser printers and ultrasound systems (allows connecting loads with half-wave imbalance)

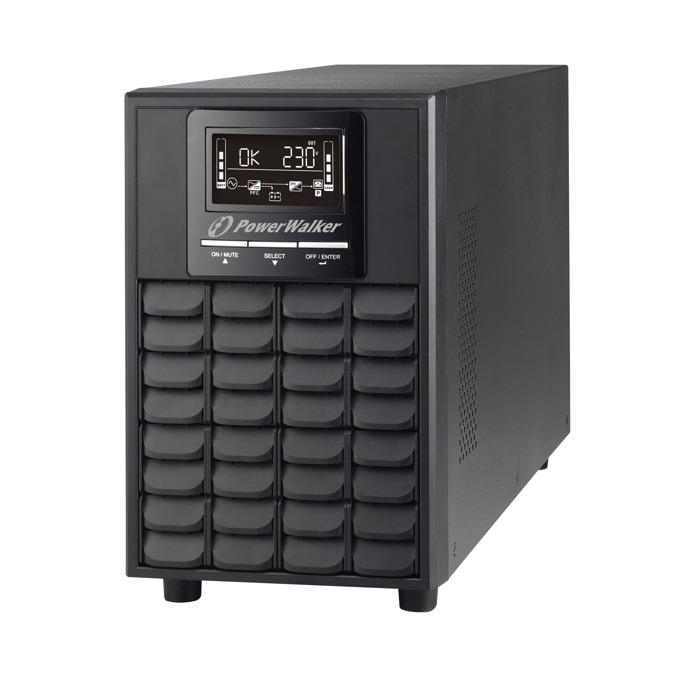

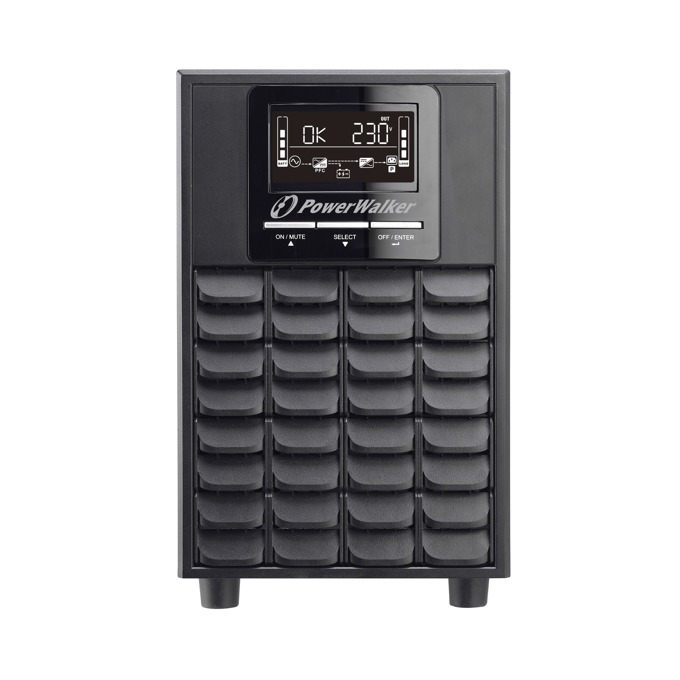

New LCD design - with estimated backup time and icon diagram

Technical specification

General features

Type Online
Power capacity 1000VA / 1000W
Output Power Factor 1.00

Input
Input Voltage Range Voltage Range Low Line Transfer
110-160VAC ± 5% depending on load level
Voltage Range Low Line Comeback
125-175VAC ± 5% depending on load level
Voltage Range High Line Transfer
300VAC ± 5%
Voltage Range High Line Comeback
290VAC ± 5VAC
Max THDi ≦ 5% @ 205-245VAC; THDu < 1.6% @ input and full linear load condition
Input PF ≥ 0.99 at full load

Характеристики

Power capacity	1000VA / 1000W
Output Power Factor	1.00
Max THDi ≦ 5% @ 205-245VAC; THDu 110%; BAT	Warning @100%-110%; 30s @110%-130%; Shutdown @>130%
External Battery Connection	Да
Charger	1A / [2A] / 4A / 6A / 8A / 10A / 12A
Protection Surge protection up to	7KV
LINE mode full Load	89.0%
Batteries	3x 12V/7Ah
DC Voltage	3 x 12V
Recharge Time	3h to 90%
Full Load Backup Time	4.44min
Half Load Backup Time	12.9min

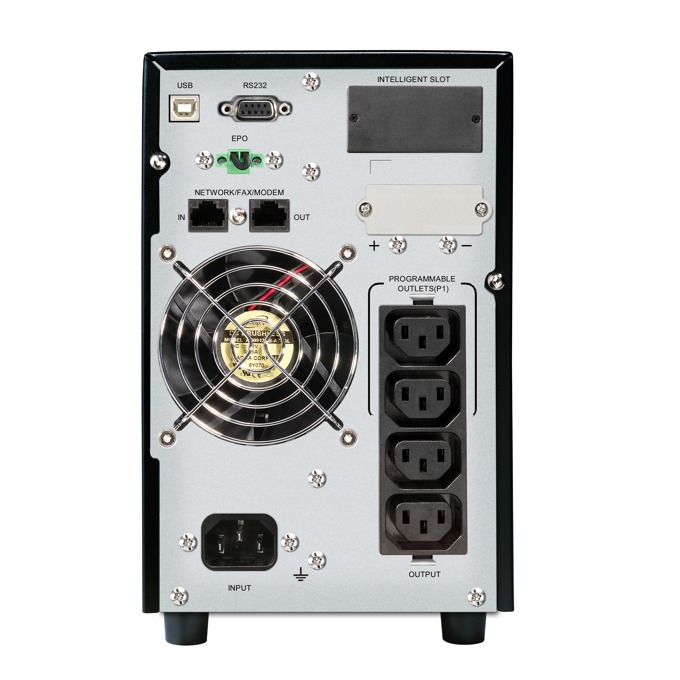

IEC C13 Outlet	4
Programmable Outlets	Да
USB port	Да
RS-232 Port	Да
Extension Slot Yes,	1
EPO Port	Да
RJ-45/RJ-11 protection	Да
Noise Level <	50dB
Температура	0°C – 40°C
Влажност	20% - 95% RH (non-condensing)
IEC	62040-3 classification VFI-SS-111
EAN	4260074979916
Ширина	145 mm
Височина	221 mm
Дълбочина	397 mm
Тегло	13 kg
Giftbox - Width	230 mm
Giftbox - Height	325 mm
Giftbox - Depth	472 mm
Giftbox - Weight	15 kg
Pcs. per box	1
Pcs. per layer	7
Pcs. per pal	42
