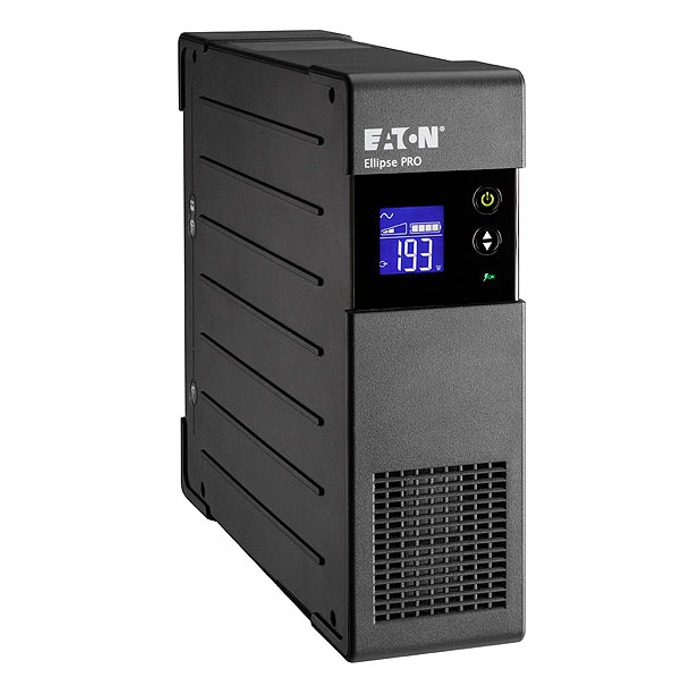

UPS Eaton Ellipse PRO 650 DIN

Ellipse PRO 650 DIN

General:
Topology Line-interactive (AVR with booster + fader)
Configuration Rack/Tower
Color Black
Rating (VA/Watts) 650/400
EcoControl Yes, up to 15% energy saving (automatic deactivation of idle peripherals)
Dimensions (H x W x D, mm) 260 x 82 x 285
Weight (kg) 6.6

Electrical Input:
Input Voltage Range 165 V - 285 V (adjustable to 150 V - 285 V)
Nominal Voltage 230 V
Operating Frequency 50-60 Hz autoselect

Electrical Output:
Voltages 230 V (adjustable to 220 V - 230 V - 240 V)

Battery:
Battery Management Automatic battery test, deep-discharge protection, cold-start capable, replaceable batteries

Communications:
User Interface LCD (UPS status and measurements, configuration of UPS settings)
Communication Ports USB port ( cable supplied)
Power Management Software Eaton UPS Companion CD ROM (enables safe system shutdown, energy usage metering and configuration of UPS settings)
