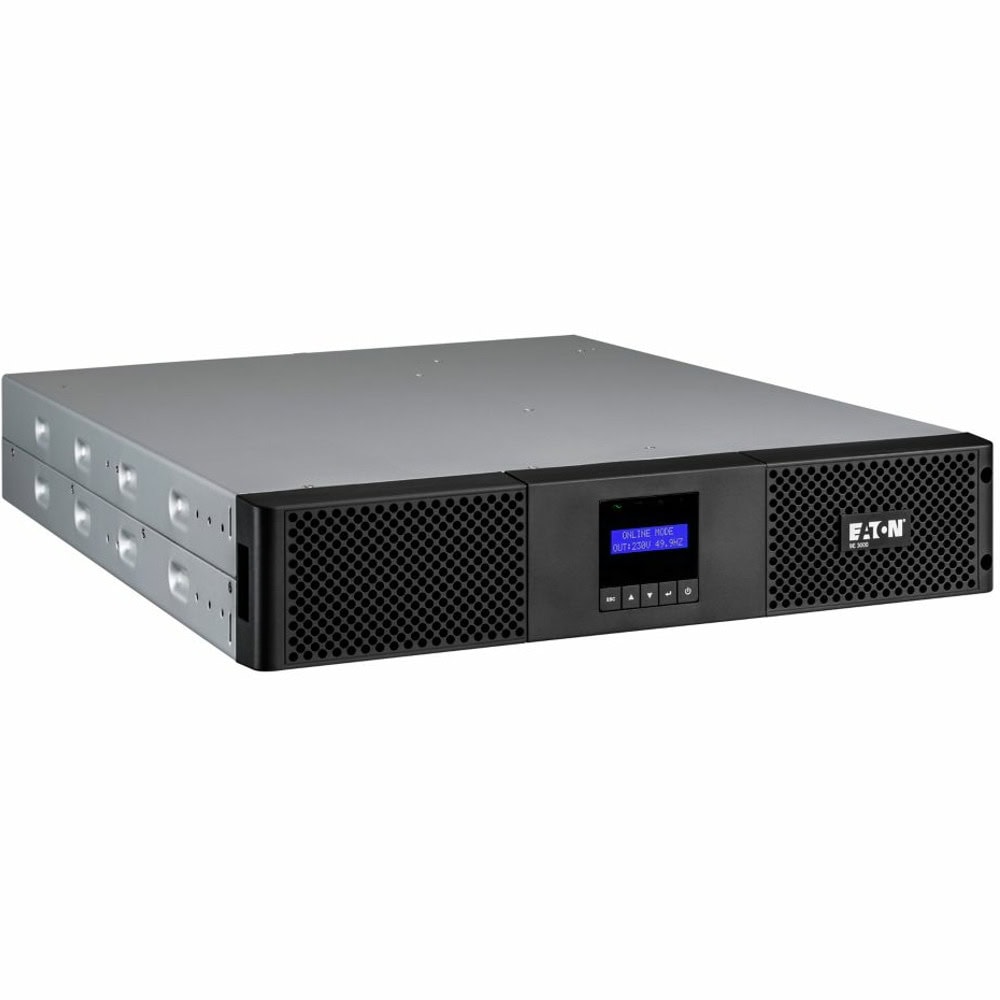

UPS Eaton 9E 2000i Rack 2U

Eaton 9E 2000i Rack 2U

9E2000IR

Specs:

Product Length/Depth 608 mm

Product Height 86.5 mm

Product Width 438 mm

Product Weight 29.9 kg

Compliances CE Marked, TUV

Certifications IEC/EN 62040-1, IEC/EN 62040-2, CE

Battery

Battery type Sealed, lead-acid

Battery replacement Replacable batteries

Battery quantity 6

Battery management

Temperature compensated charging method

Automatic battery test

Deep discharge protection

Battery rating 12 V / 7 Ah

Extended battery capability Yes

Electrical output

Receptacle (6) C13

Voltage 230V

Wattage 1800 W

Output power factor 0.9

Output voltage range 220/230/240 V +/- 2%

Output waveform Sine wave

Output nominal voltage 230V default (220/230/240V)

Voltage distortion output (linear load) - max 3

Feed type 1

Topology Online/Double-conversion

VA rating 2000 VA

Electrical input

Input connection C14

Input nominal voltage 230V default (220/230/240V)

Nominal frequency 50/60 Hz

Input power factor >.99

Input frequency range 40-70 Hz

Communications

Includes network card No

Communication

USB port (HID compliant)

Serial port (RS232)

Mini-terminal block for remote power off

Ethernet interface No

User interface Multilingual LCD display

Potential free switch contact Yes

Expansion slots One slot for optional communication card

Software compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
