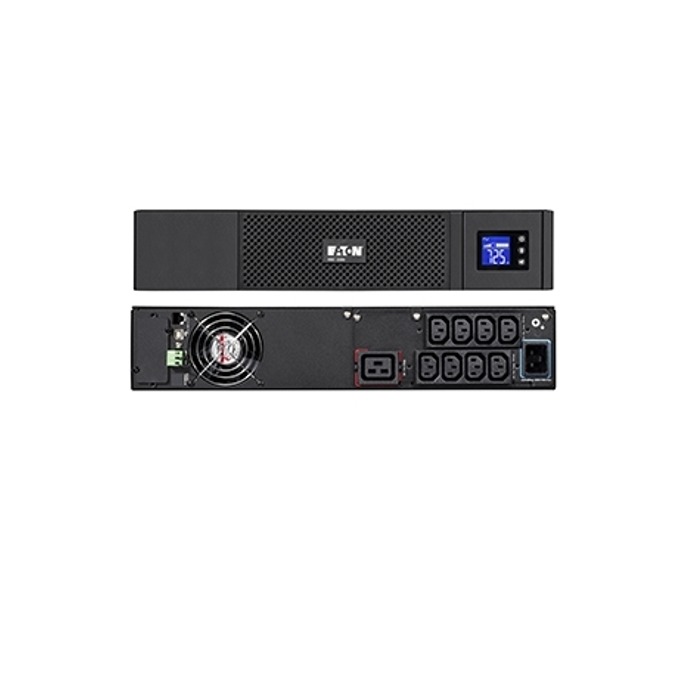

UPS Eaton 5SC 5SC2200IRT

Eaton 5SC
5SC2200IRT

General

Topology
Line-interactive high frequency with booster + fader, pure sinewave output

Configuration
Rack/Tower

Part Number
5SC2200IRT

Color
Black

Rating (VA/Watts)
2200/1980

Dimensions (H x W x D, mm)
86.2 x 441 x 522

Weight (kg)
26.5

Electrical Input

Connection

Input Voltage Range
184V-276V

Nominal Voltage
230V

Input frequency Range Without Using

Batteries
45–55Hz (50Hz system), 55–65Hz (60Hz system)

Electrical Output

Voltages
230V (+6/–10 %) (Adjustable to 220V/230V/240V)

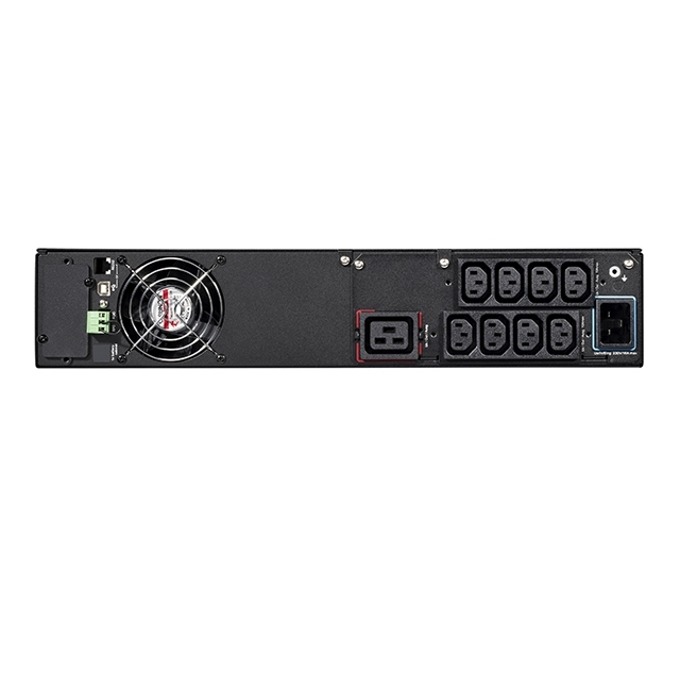

Outlets

Output Frequency
50/60Hz +/–0.1 % (autosensing)

Battery
70
80
90
Standard

Runtime
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

Battery Management
ABM®, Automatic battery test, deep discharge protection

Communications

Communication Ports
1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for
remote ON/OFF and Remote Power Off

Communication Slot
1 slot for Network management card or Relay card

Environmental & Standards
Audible Noise
<45 dB

Operating Temperature
0 to 40°C

Safety markings
IEC/EN 62040-1, UL 1778

EMC Markings
IEC/EN 62040-2

Approvals
CE, CB report (TUV)
