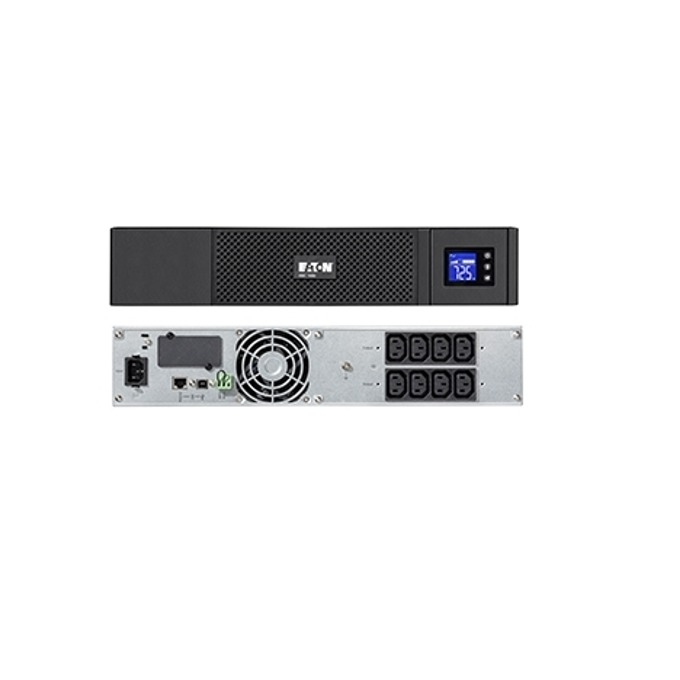

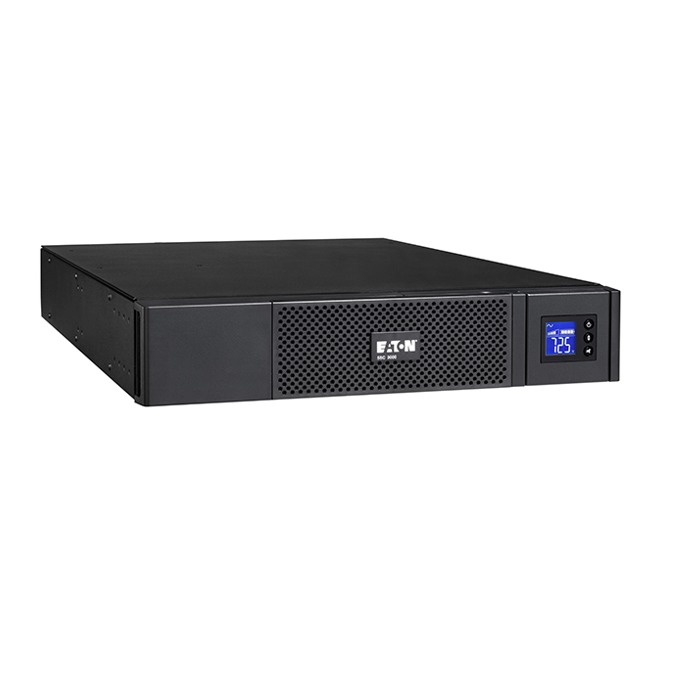

UPS Eaton 5SC 5SC1500IR

Eaton 5SC 1500i Rack 2U
5SC1500IR

General
Topology Line-interactive high frequency with booster + fader, pure sinewave output
Configuration Rack 2U
Part Number 5SC1500IR
Color Black
Rating (VA/Watts) 1500/1050
Dimensions (H x W x D, mm) 86.2 x 440 x 405
Weight (kg) 17.78

Electrical Input
Connection
(1) IEC-320-C14
IEC C14
Input Voltage Range 184V-276V
Nominal Voltage 230V
Input frequency Range Without Using Batteries 45–55Hz (50Hz system), 55–65Hz (60Hz system)

Electrical Output
Voltages 230V (+6/–10 %) (Adjustable to 220V/230V/240V)
Outlets
(8) IEC-320-C13
IEC C13
Output Frequency 50/60Hz +/–0.1 % (autosensing)

Battery
Runtime
(Minutes)
200
400
600
800
1000
0
20
40
60
80
100
120
140
160
Standard Runtime
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
Load (Watts): 914
Standard Runtime: 6
Battery Management ABM®, Automatic battery test, deep discharge protection

Communications
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off
Communication Slot 1 slot for Network management card or Relay card

Environmental & Standards
Audible Noise <45 dB
Operating Temperature 0 to 40°C
Safety markings IEC/EN 62040-1, UL 1778
EMC Markings IEC/EN 62040-2
Approvals CE, CB report (TUV)
