Eaton

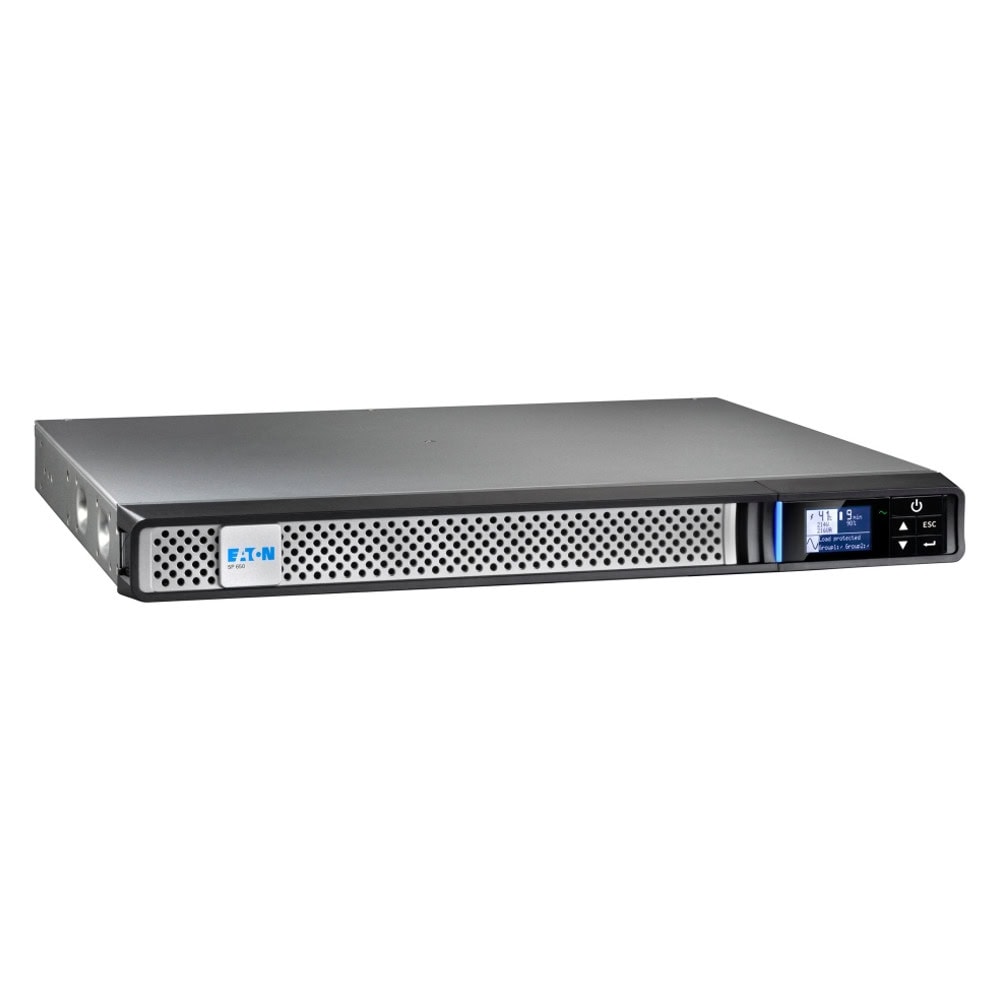

UPS Eaton 5P 650i Rack 1U G2
Артикул №: 1000034071
Категория:
UPS
549,99 €
✓ Ограничена наличност
Eaton 5P 650i Rack 1U G2
5P650IRG2
Battery
Battery type: Lead-acid maintenance-free (replaceable)
Battery replacement: User replaceable
Battery quantity: 2
Battery management: ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
Battery rating: 6 V / 9 Ah
Extended battery capability: No
Electrical output
Voltage: 230V

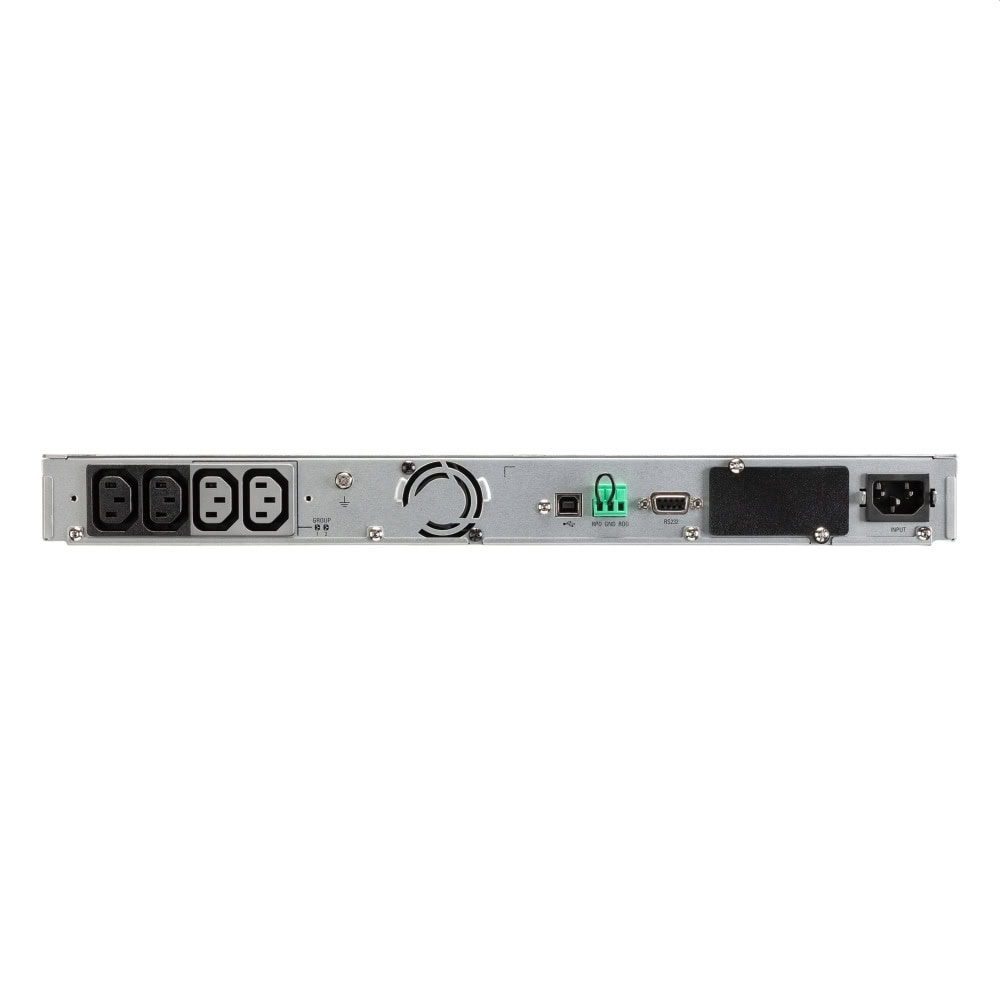

Receptacle: (4) C13
5P650IRG2
Battery
Battery type: Lead-acid maintenance-free (replaceable)
Battery replacement: User replaceable
Battery quantity: 2
Battery management: ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
Battery rating: 6 V / 9 Ah
Extended battery capability: No
Electrical output
Voltage: 230V
Receptacle: (4) C13
Технически характеристики
| Тип батерия | Lead-acid maintenance-free (replaceable) |
| Battery replacement | User replaceable |
| Battery quantity | 2 |
| Battery rating | 6 V / 9 Ah |
| Extended battery capability | Не |
| Напрежение | 230V |
| Receptacle | (4) C13 |
| Wattage | 520 W |
| Output voltage range | 230 V (+6%/-10%) |
| Output frequency | 50/60 Hz |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Topology | Line-interactive |
| Input connection | C14 |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Nominal frequency | 50-60 Hz |
| Input voltage range | 160-294 V (adjustable to 150 V-294 V) |
| Ethernet interface | Не |
| Potential free switch contact | Да |

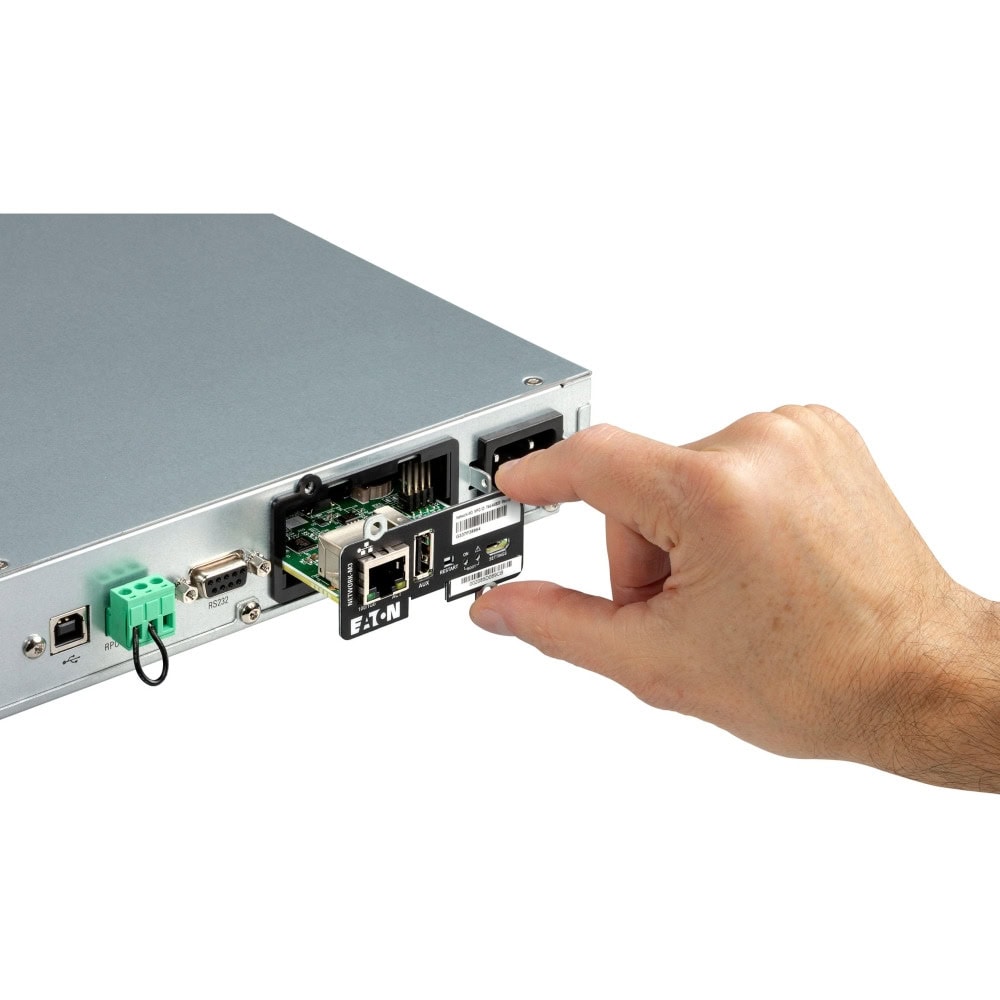

| Слотове за разширение | One slot for optional communication card |
| Software compatibility | Eaton Brightlayer Software suite |
| Type of interface | Other |
| Altitude | 3000 m |
| Temperature range | 0° to 40°C |
| BTU Rating | Online: 53, Battery: 461 BTU/hr |
| Relative humidity | 0-90% non-condensing |
| Form factor | Rack |
| Construction type | 482.6 mm (19 inch) device |
| Enclosure | Black/silver |
| Phase (output) | 1 |
| Auto shutdown function | Да |
| Rack size | 1U |
| Цвят | Black/silver |
| Rack mounting kit | Да |
| Efficiency | 97 |
| Phase (input) | 1 |
