UPS APC SMT750IC Smart-UPS 750VA/230V

Technical Specifications

Output

Output power capacity

500Watts / 750VA

Max Configurable Power (Watts)

500Watts / 750VA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Topology

Line Interactive

Waveform type

Sine wave

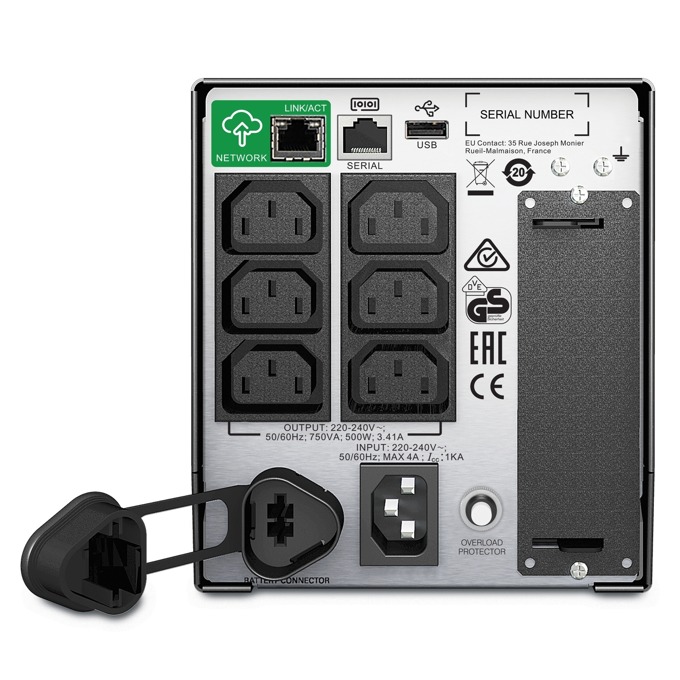

Output Connections

(6) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Transfer Time

6ms typical : 10ms maximum

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Cord Length

1.83meters

Input voltage range for main operations

160 - 280V

Input voltage adjustable range for mains operation

151 - 302V

Number of Power Cords

1

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Replacement Battery

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Battery Volt-Amp-Hour Capacity

146

Runtime

View Runtime Graph

Communications & Management

Interface Port(s)

SmartSlot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Optional

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

540Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
