UPS APC Smart-UPS

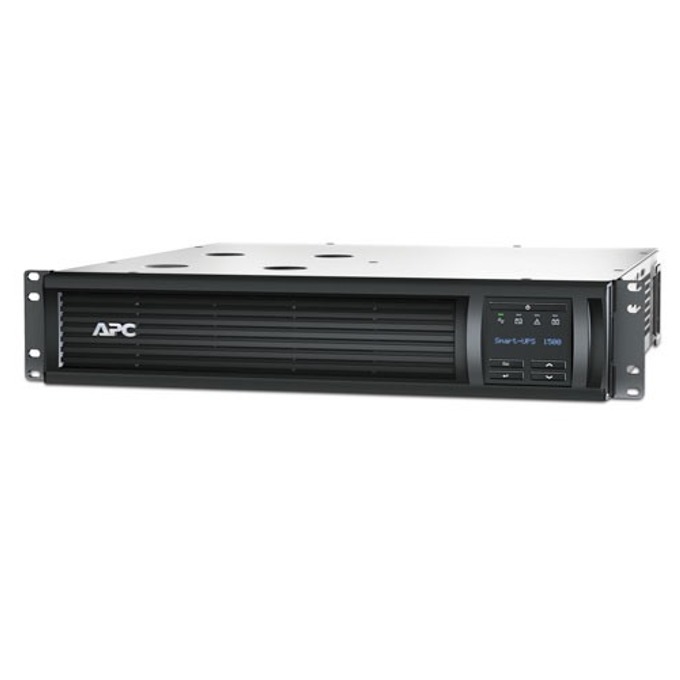

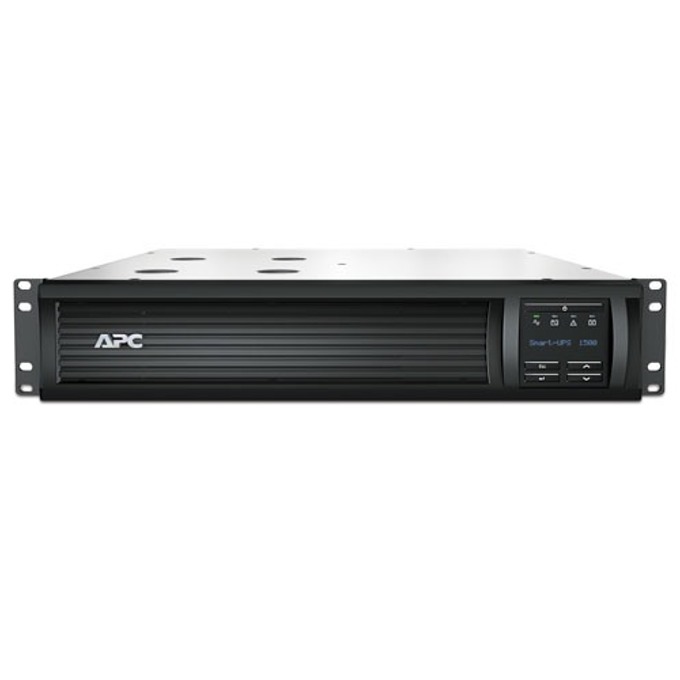

APC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect

SMT1500RMI2UC

Output

Output power capacity
1.0 KWatts / 1.5 kVA

Max Configurable Power (Watts)
1.0 KWatts / 1.5 kVA

Nominal Output Voltage
230V

Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion
Less than 5%

Output Frequency (sync to mains)
50/60Hz +/- 3 Hz

Other Output Voltages
220, 240

Topology
Line Interactive

Waveform type
Sine wave

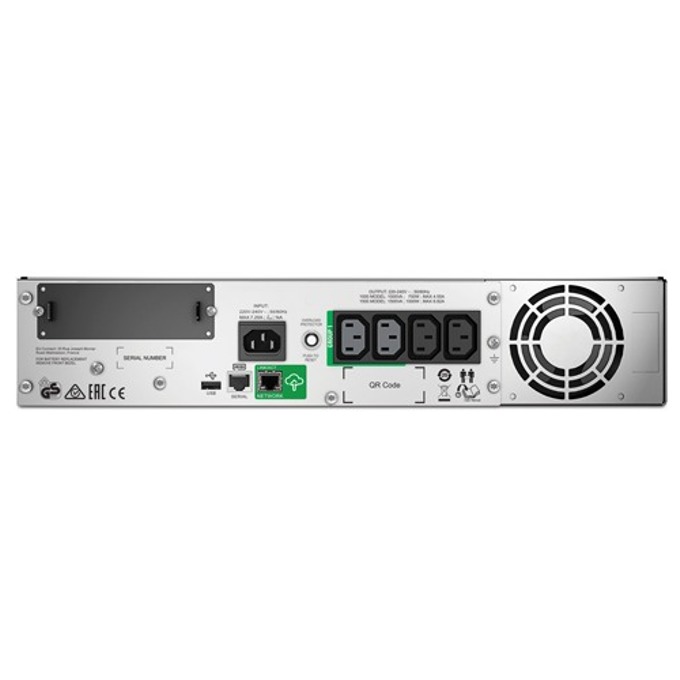

Output Connections
(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C13 (Battery Backup)

Transfer Time
6ms typical : 10ms maximum

Input

Nominal Input Voltage
230V

Input frequency
50/60 Hz +/- 3 Hz (auto sensing)

Input Connections
IEC-320 C14

Input voltage range for main operations
160 - 286V

Input voltage adjustable range for mains operation
151 - 302V

Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte :
leakproof

Typical recharge time
3hour(s)

Expected Battery Life (years)
4 - 6

RBC Quantity
1

Runtime
View Runtime Graph
View Runtime Chart

Communications & Management

Interface Port(s)
RJ-45 Serial , SmartSlot , USB

Control panel
Multi-function LCD status and control console

Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)
Optional

Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
459Joules

Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero
clamping response time : meets UL 1449

Physical

Maximum Height
